VisuNet Control Center 6
Manage (Device)
5.

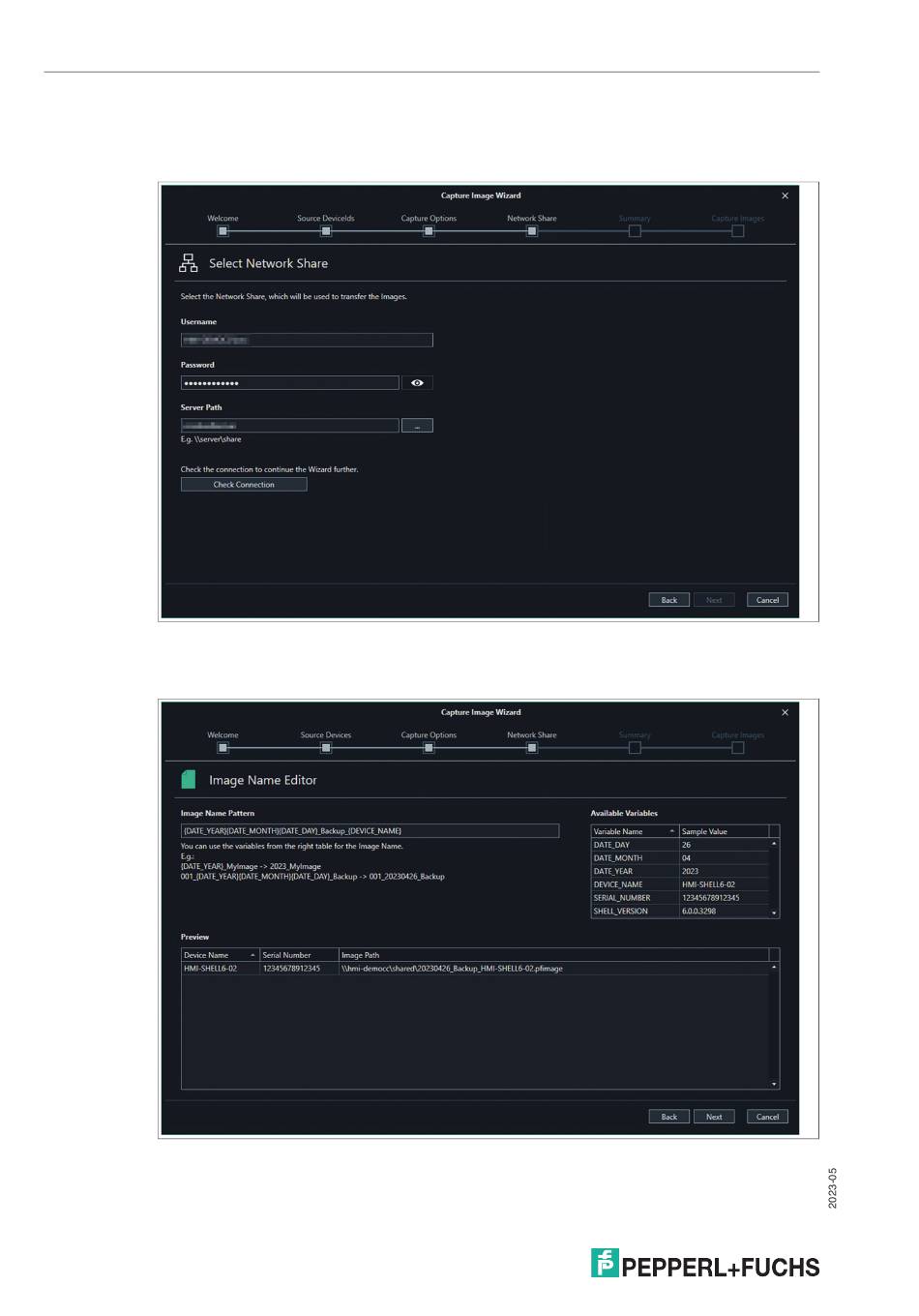

Check the connection. If the connection failed, check the server path again. No further
procedure is possible. If the connection is successful you can continue the wizard further and
click "Next".
Figure 7.53
6.
Choose a name for your Image. Modify the pattern for the name. You can use Variables to unify
each image name with properties of the device.
Figure 7.54
7.
Check again the selected settings then click "Execute" to perform the capture/apply process.
