VisuNet Control Center 6
Manage (Device)
7.1.1

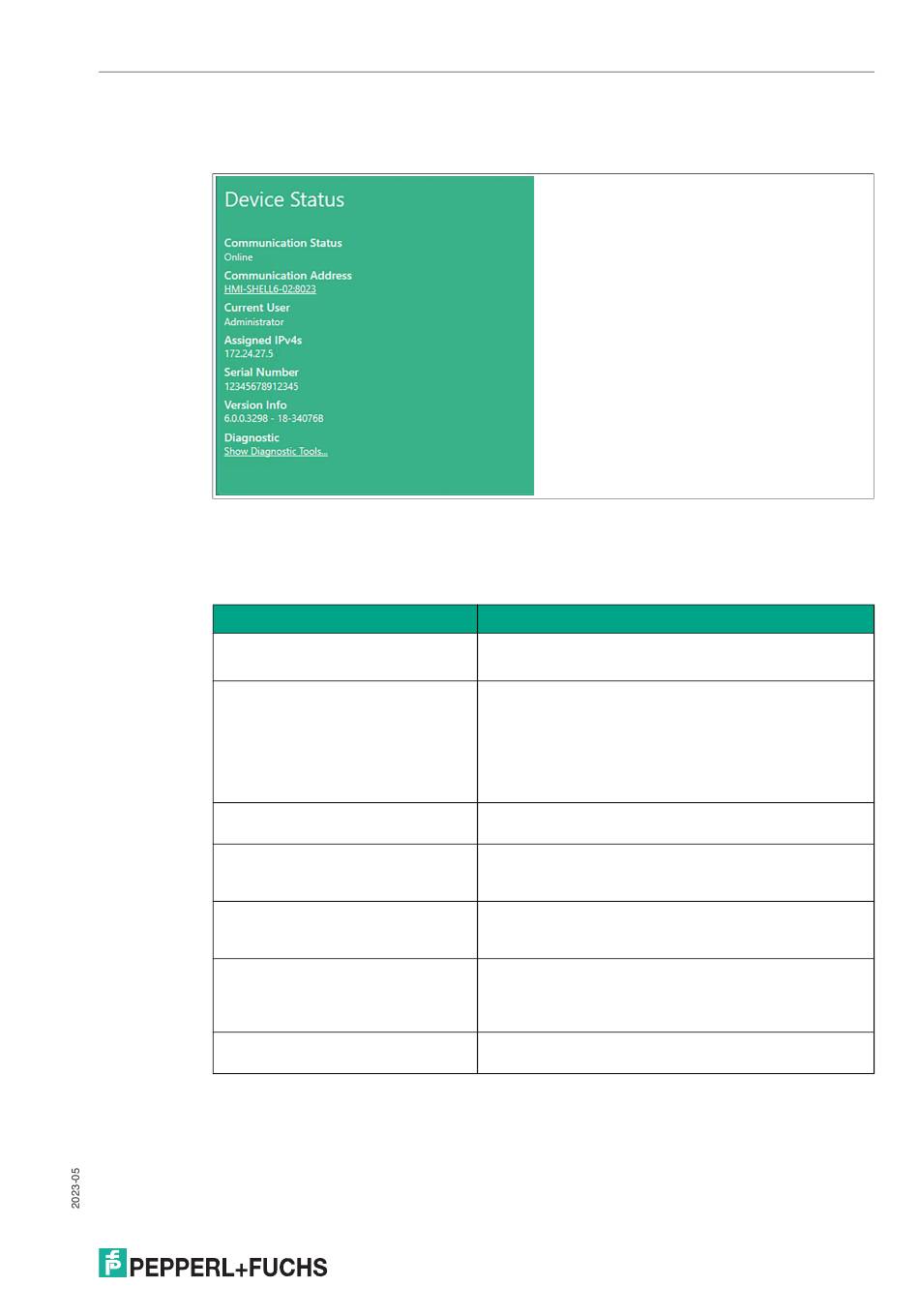

Device Status

The device status tile displays important device information.
Figure 7.3
• Green: The device is online
• Yellow: The device is in maintainance mode
• Orange: The device is in a fault state
• Grey: The device is offline
Function
Communication Status
Communication Address
Current User
Assigned IPv4s
Serial Number
RM Shell and Image Version
Show Diagnostic Tool
The tile color indicates the current status of the device:
Description
•
•
The communication address establishes the communi-
cation between VisuNet CC and the RM / BTC device
and can be the name of the device or the IP address.
The computer name is, when enabled, independent
from the communication address and will appear in the
main device screen as well as the navigation menu and
will only be stored in VisuNet CC.
Shows the current user role that is logged in on the RM /
BTC.
List of the RM's IPv4 address.
If the RM has multiple network interface cards and IP
addresses, additional IPs will be listed here.
Shows the product serial number of the RM / BTC.
The serial number is also on the type plate of the RM /
BTC.
Shows the version number of the RM Shell and Image
on the RM / BTC.
The image version is only listed in the latest RM Shell
5.1 version.
The menu shows the system information, update log
and image log. For more information see below.
Shows the status of a connection to an RM / BTC.
Shows correction steps, if the connection is disrupted.
