Click "Remote Monitors" in the navigation menu to view an overview of all devices. "Tile view"
is the default mode. This mode displays a live screenshot of each device.
Ribbon toolbar
On the toolbar, all available functions that can be performed in the mode currently in
use, are grouped together.
For detailed information on the icons and their functions, .
Navigation menu
• The navigation menu lists all RMs/BTCs, that have been found during a network scan or
have been added manually.
• The navigation menu list shows offline RMs/BTCs, that have been added to the project.
• The navigation menu allows RMs/BTCs to be added to group folders. With this feature,
RMs/BTCs can be grouped according to their location.

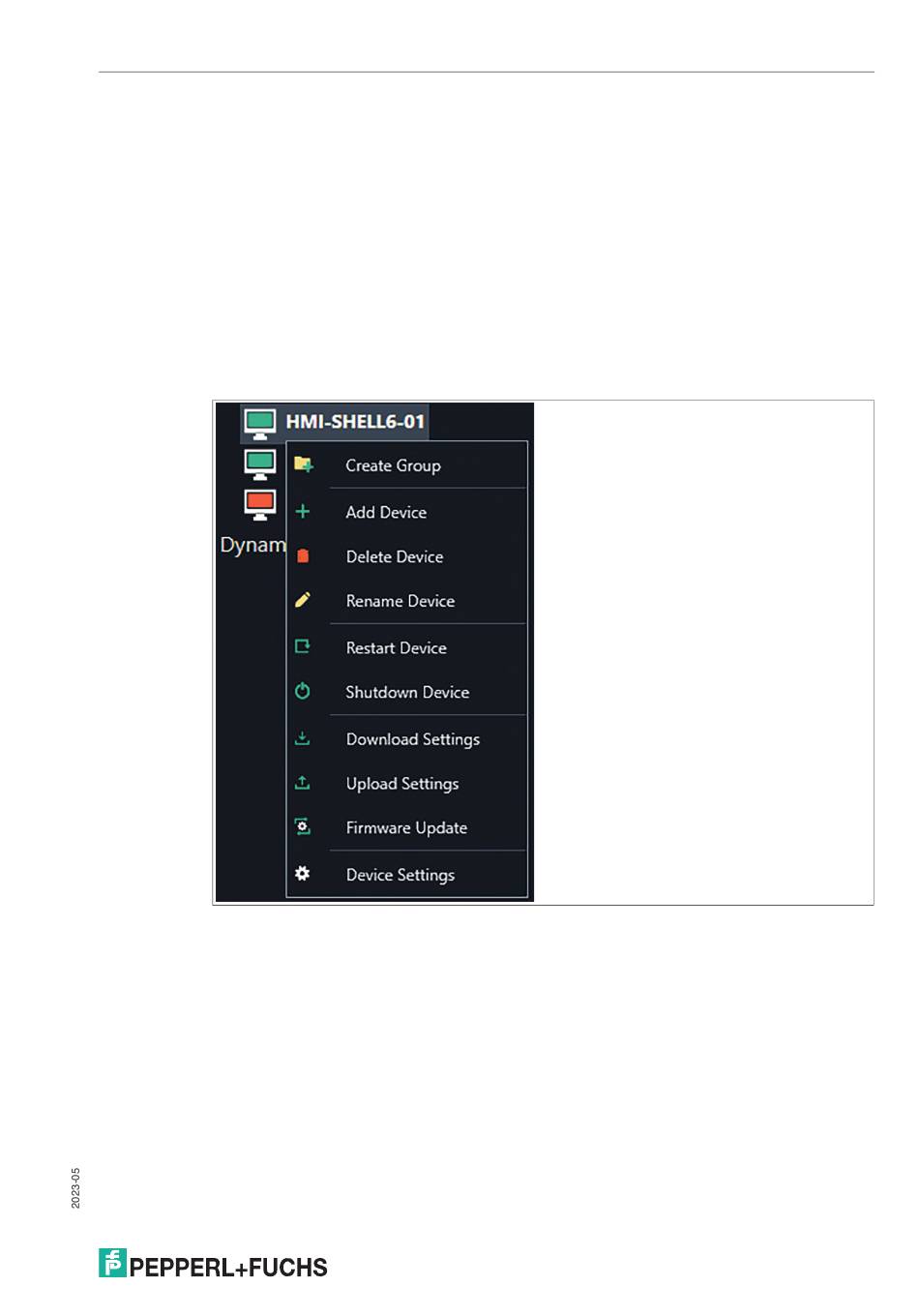

• The devices can be right-clicked to open a top down menu with quick access.
Main screen: In the center of the user interface, the main information is displayed.
Based on the mode currently in use, the information for a RM/BTC, a group of
RMs/BTCs or a general device overview either as list or tile view is presented.
