Manage (Device)

7 Manage (Device)
To change to the device view, click the required device in the navigation menu or main screen.
Overview of the Device Structure, see chapter 5.2.

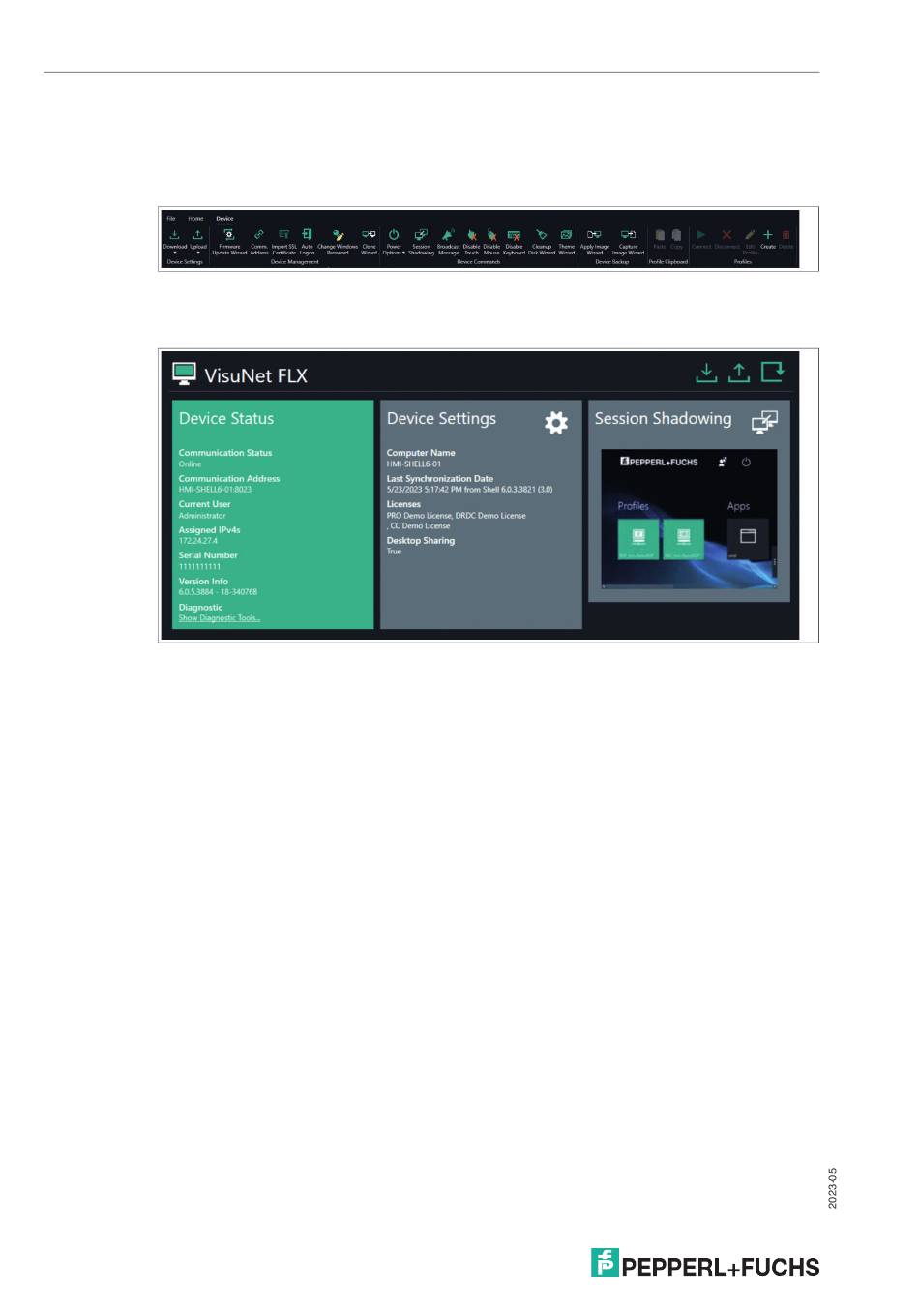

Figure 7.1
7.1

Device Function Tiles

Figure 7.2
The function tiles provide an overview of the core RM / BTC system information. Three tiles are
used to summarize the following information and functions:
• Device Status: Read-only information about the RM / BTC. If the connection to the RM /
BTC is active, the displayed data is live information that is periodically updated.
• Device Settings: The "Device Settings" tile groups all settings of an RM / BTC. Clicking
once on the tile opens a separate window that groups all available functions for changing
the RM / BTC settings.
• Session Shadowing: The "Session Shadowing" tile provides a live preview of the current
RM / BTC screen. Clicking once on the tile opens a separate session shadowing window.
Device Settings
Above the tiles, there are also two shortcuts to synchronize the data of the Control Center with
the RM / BTC:
• Upload/Download: The left arrow in the upper right corner is a shortcut that allows set-
tings and data from the RM / BTC to be downloaded to VisuNet CC when the connection
to the RM / BTC is active. The right arrow allows current configuration of VisuNet CC to be
uploaded to the RM / BTC when the connection to the RM / BTC is active.
