VisuNet Control Center 6
VisuNet CC Setup

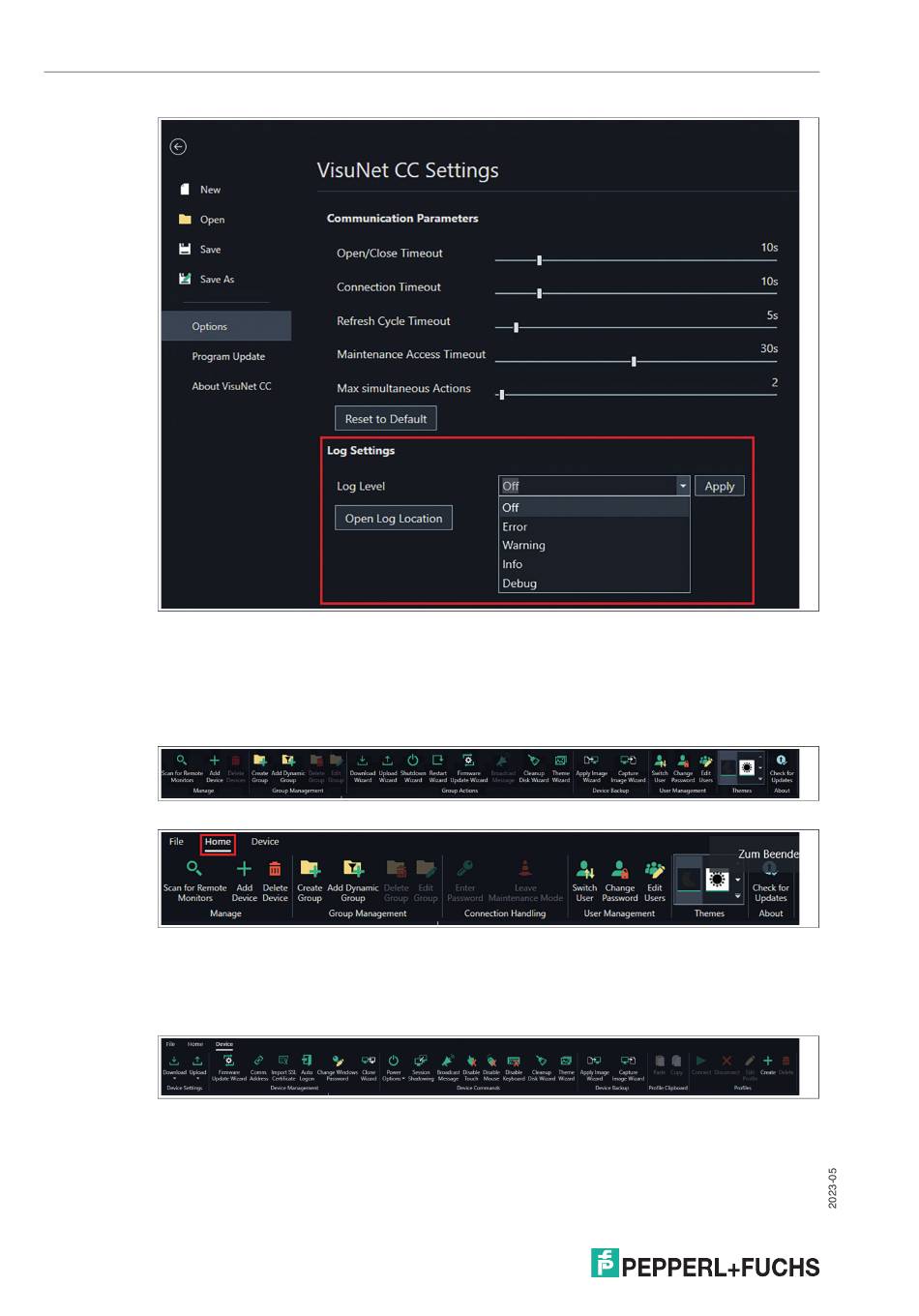

Figure 5.7
There are two different "Home" ribbon toolbars, depending on if a device is selected or the
group view is active
Figure 5.8
Figure 5.9
Figure 5.10
For detailed information on the icons and their functions, see chapter 5.2.
16
Home: Click the "Home" tab in the top-left corner of the VisuNet CC screen to enter
the home view.
Ribbon toolbar, when the group view is activated
Ribbon toolbar (reduced), when one device is selected
Device: the device ribbon toolbar will only appear when a device is selected
Click the "Device" tab in the top-left corner of the VisuNet CC screen to enter the
device view
