Device Structure

To get further information of the single devices, use the double-click either in the navigation
menu or at the list or tile view in the main screen.
This mode allows you to manage individual devices. The settings, information, and functions
available in this view are divided into 5 general sections.

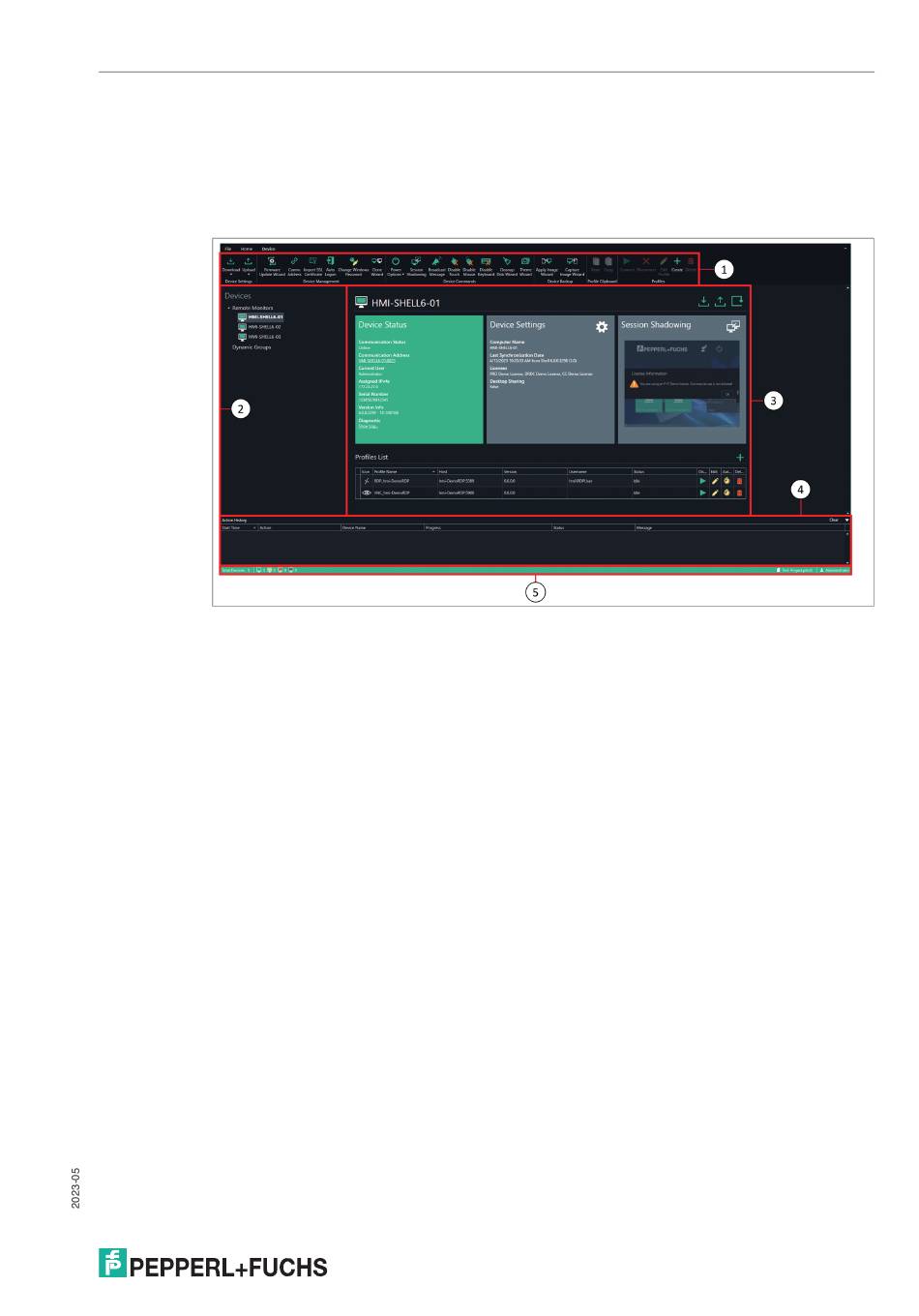

Figure 5.14
1
2
3
4
5
Ribbon toolbar
For further information regarding the control and manage elements .
Navigation menu
Device function tiles including the list of profiles.
For further information regarding the control and manage elements refer to the
Device Function Tiles Chapter.
Action History list that contains all executed actions and all actions currently being
executed.
Status bar indicating the device in the project with the number of online, in maintain-
ance, faulty and offline devices. Project Name and currently active user is displayed.
