UST510-52B-FL Series user's Manual
3.3.5
USB 3.0 Connector
The Universal Serial Bus connectors are compliant with USB 3.0 (5 GB/s), ideal for connecting
USB peripherals such as scanners, cameras and other USB devices. Pin assignment follows
USB Implementers Forum, Inc.
3.3.6

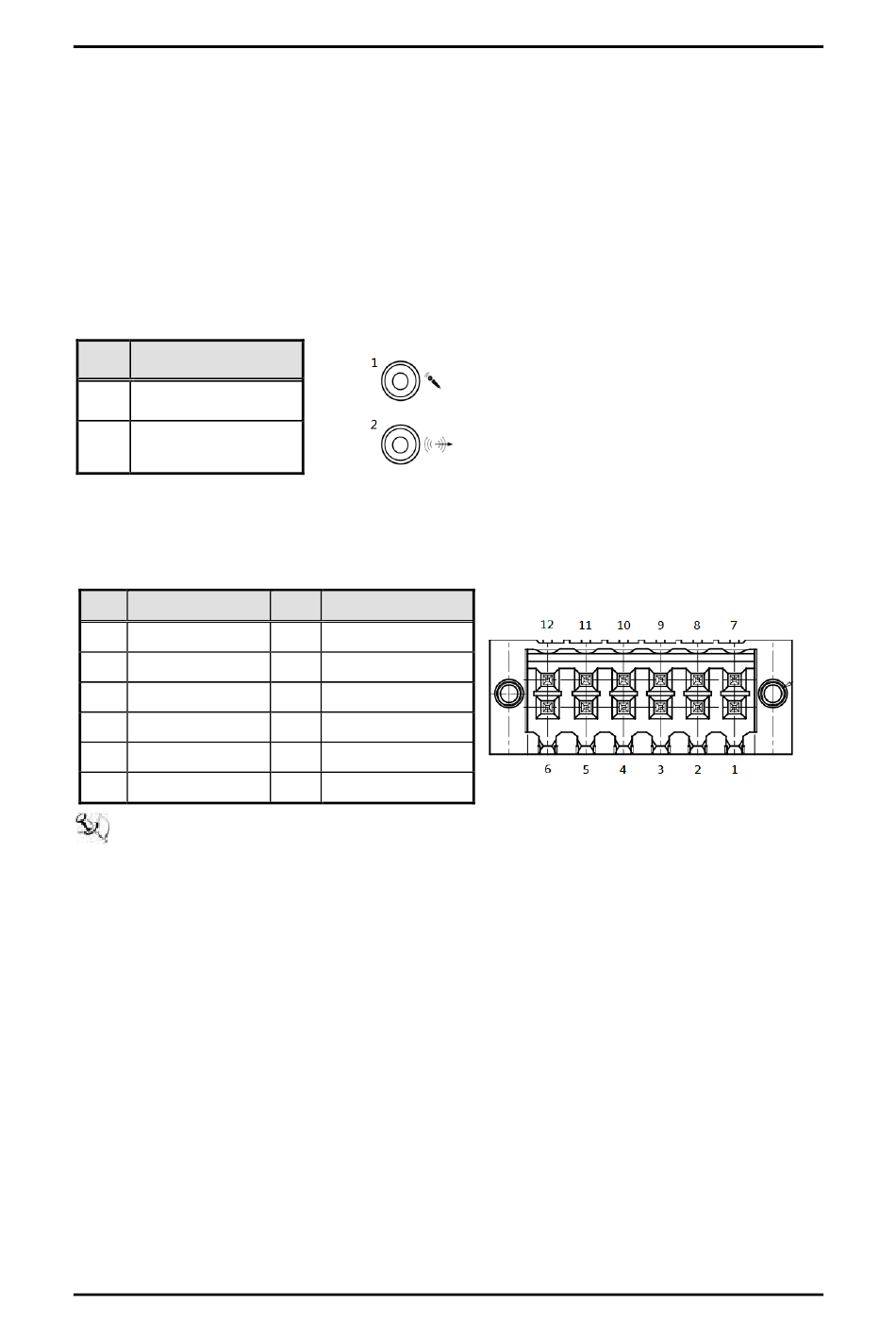

Audio Connector
These two 3.5mm audio jacks are ideal for connecting TRS stereo plugs for Audio Mic-In and
Audio Line-out.
Pins
Signals
1
Microphone In
2
Line Out
3.3.7
Digital I/O
The UST510-52B-FL supports 6bit DI and 2bit DO with 2KV optical isolation
Pins Signals
1
COM+
2
OUT0
3
OUT1
4
COM-
5
DIO_GND
6
Ext Power
Note: Please refer to Appendix B for more information about Digital I/O
3.3.8 SATA Connector (SATA 1~4)
These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors support
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices
such as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance. Pin
definition follows Serial ATA International Organization.
36
Pins Signals
7
IN 0
8
IN 1
9
IN 2
10
IN 3
11
IN 4
12
IN 5
LED, Button & Connector Settings
