UST510-52B-FL Series user's Manual

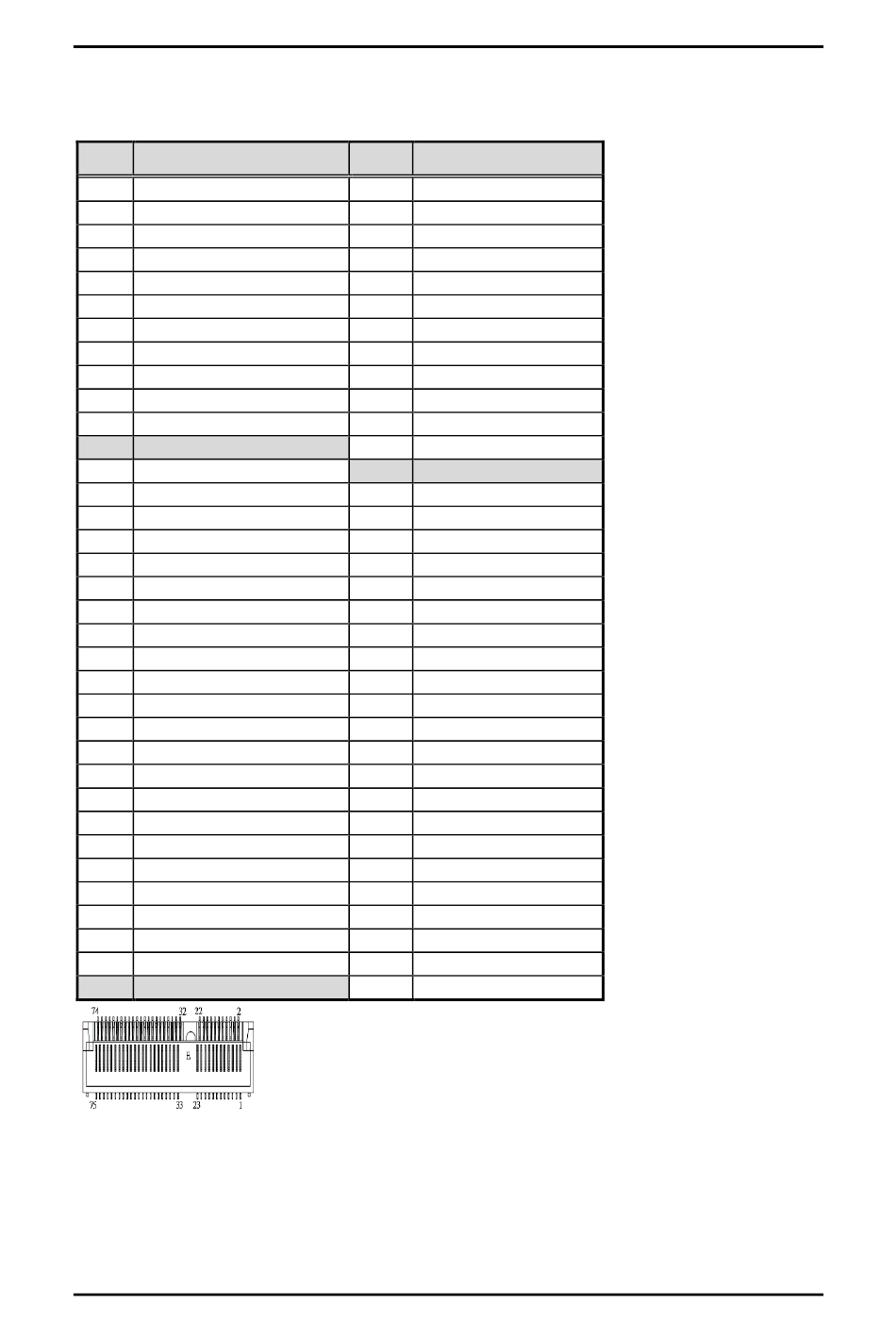

3.3.13 M.2 Key E Connector (CN18)
The system comes with one M.2 Key E connector (Wi-Fi & Bluetooth)
Pins Signals
2 +3.3V
4 +3.3V
6 N/C
8 N/C
10 PCM_CRF_RST[*]
12 N/C
14 PCMOUT_CLKREQ0[*]
16 N/C
18 GND
20 UART_BT_WAKE[*]
22 CNV_BRI_RSP[*]
32 CNV_RGI_DT[*]
34 CNV_RGI_RSP[*]
36 CNV_BRI_DT[*]
38 CL_RST[*]
40 CL_DATA[*]
42 CL_CLK[*]
44 CNV_PA_BLANKING[*]
46 CNV_MFUART2_TXD[*]
48 CNV_MFUART2_RXD[*]
50 PCH_SUSCLK
52 BUF_PLT_RST
54 BT_KILL1
56 WLAN_KILL1
58 N/C
60 N/C
62 N/C
64 M2_REFCLK
66 N/C
68 N/C
70 N/C
72 +3.3V
74 +3.3V
40
Pins Signals
1 GND
3 USB#14_D+
5 USB#14_D-
7 GND
9 CNV_WR_1_DN[*]
11 CNV_WR_1_DP[*]
13 GND
15 CNV_WR_0_DN[*]
17 CNV_WR_0_DP[*]
19 GND
21 CNV_WR_CLK_DN[*]
23 CNV_WR_CLK_DP[*]
33 GND
35 PCIE12_TX_DP[*]
37 PCIE12_TX_DN
39 GND
41 PCIE12_RX_DP
43 PCIE12_RX_DN
45 GND
47 CLKOUT_PCIE_P3
49 CLKOUT_PCIE_N3
51 GND
53 NGFF_CLKREQ3
55 PCH_WAKE
57 GND
59 CNV_WT_1_DN[*]
61 CNV_WT_1_DP[*]
63 GND
65 CNV_WT_0_DN[*]
67 CNV_WT_0_DP[*]
69 GND
71 CNV_WT_CLK_DN[*]
73 CNV_WT_CLK_DP[*]
75 GND
LED, Button & Connector Settings
