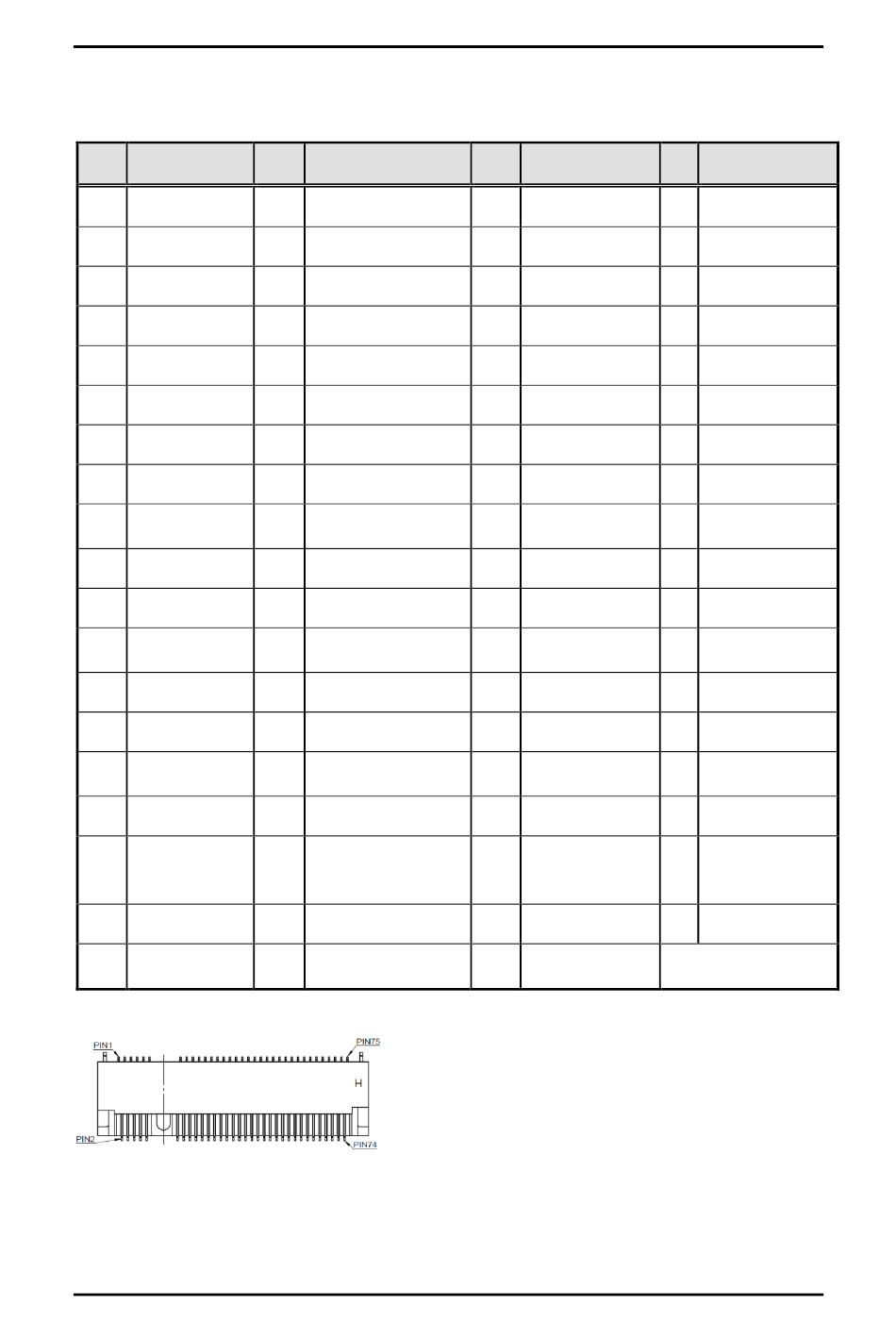

3.3.14 M.2 3050/3052 Key B (CN14)
The system comes with one M.2 Key B connector (LTE & SIM).
Pin Signal
1 CONFIG_3
5 GND
9 USB_D-
13 Key B
17 Key B
21 CONFIG_0
25 DPR
29 USB3.1-Tx-
33 GND
37 USB3.1-Rx+
41 PERn0
45 GND
49 PETp0
53 REFCLKn
57 GND
61 ANTCTL1
65 ANTCTL3
69 CONFIG_1
73 GND
LED, Button & Connector Settings
Pin Signal
2 +3.3V
6 Full Card PWR OFF
10 GPIO_9
14 Key B
18 Key B
22 GPIO_6
26 GPIO_10
30 UIM-RESET
34 UIM-DATA (I/O)
38 NC
42 GPIO_1
46 GPIO_3
50 PERST#
54 PEWAKE#
58 NC
62 COEX_RXD
66 SIM_DETECT
70 +3.3V
74 +3.3V
UST510-52B-FL Series user's Manual
Pin Signal
3 GND
7 USB_D+
11 GND
15 Key B
19 Key B
23 GPIO_11
27 GND
31 USB3.1-Tx+
35
USB3.1-Rx-
39 GND
43 PERp0
47 PETn0
51 GND
55 REFCLKp
59
ANTCTL0
63 ANTCTL2
RESET#
67
(I)(0/1.8V)
71 GND
75
CONFIG_2
Pin Signal
4 +3.3V
8 W_DISABLE1#
12 Key B
16 Key B
20 GPIO_5
24 GPIO_7
28 GPIO_8
32 UIM-CLK (O)
36 UIM-PWR (O)
40 GPIO_0
44 GPIO_2
48
GPIO_4
52 CLKREQ#
56 NC
60
COEX3
64 COEX_TXD
68 SUSCLK
72 +3.3V
