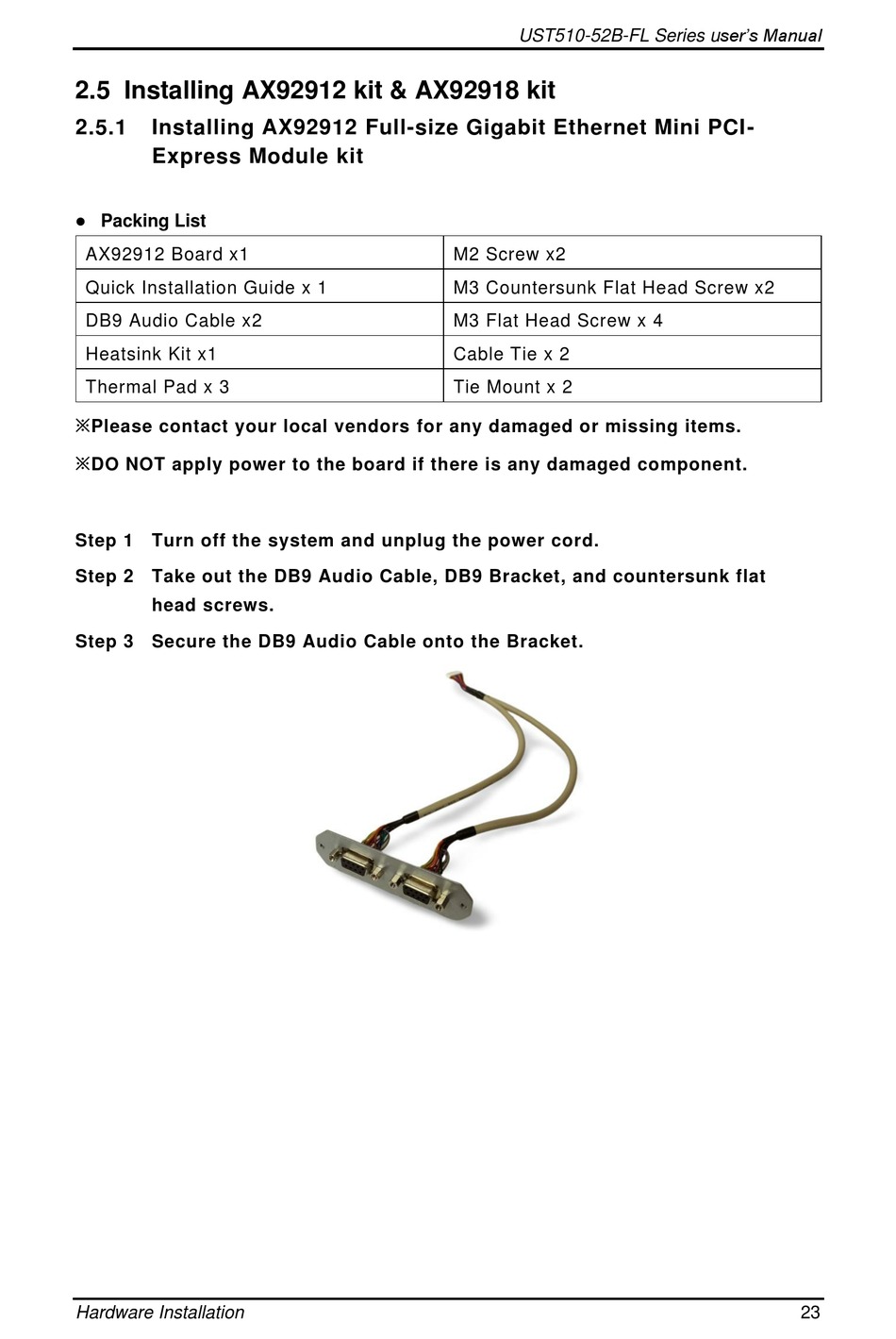

2.5 Installing AX92912 kit & AX92918 kit
2.5.1 Installing AX92912 Full-size Gigabit Ethernet Mini PCI-
Express Module kit
⚫ Packing List
AX92912 Board x1
Quick Installation Guide x 1
DB9 Audio Cable x2
Heatsink Kit x1
Thermal Pad x 3
※Please contact your local vendors for any damaged or missing items.
※DO NOT apply power to the board if there is any damaged component.
Step 1 Turn off the system and unplug the power cord.
Step 2 Take out the DB9 Audio Cable, DB9 Bracket, and countersunk flat
head screws.
Step 3 Secure the DB9 Audio Cable onto the Bracket.
Hardware Installation
UST510-52B-FL Series user's Manual
M2 Screw x2
M3 Countersunk Flat Head Screw x2
M3 Flat Head Screw x 4
Cable Tie x 2
Tie Mount x 2
