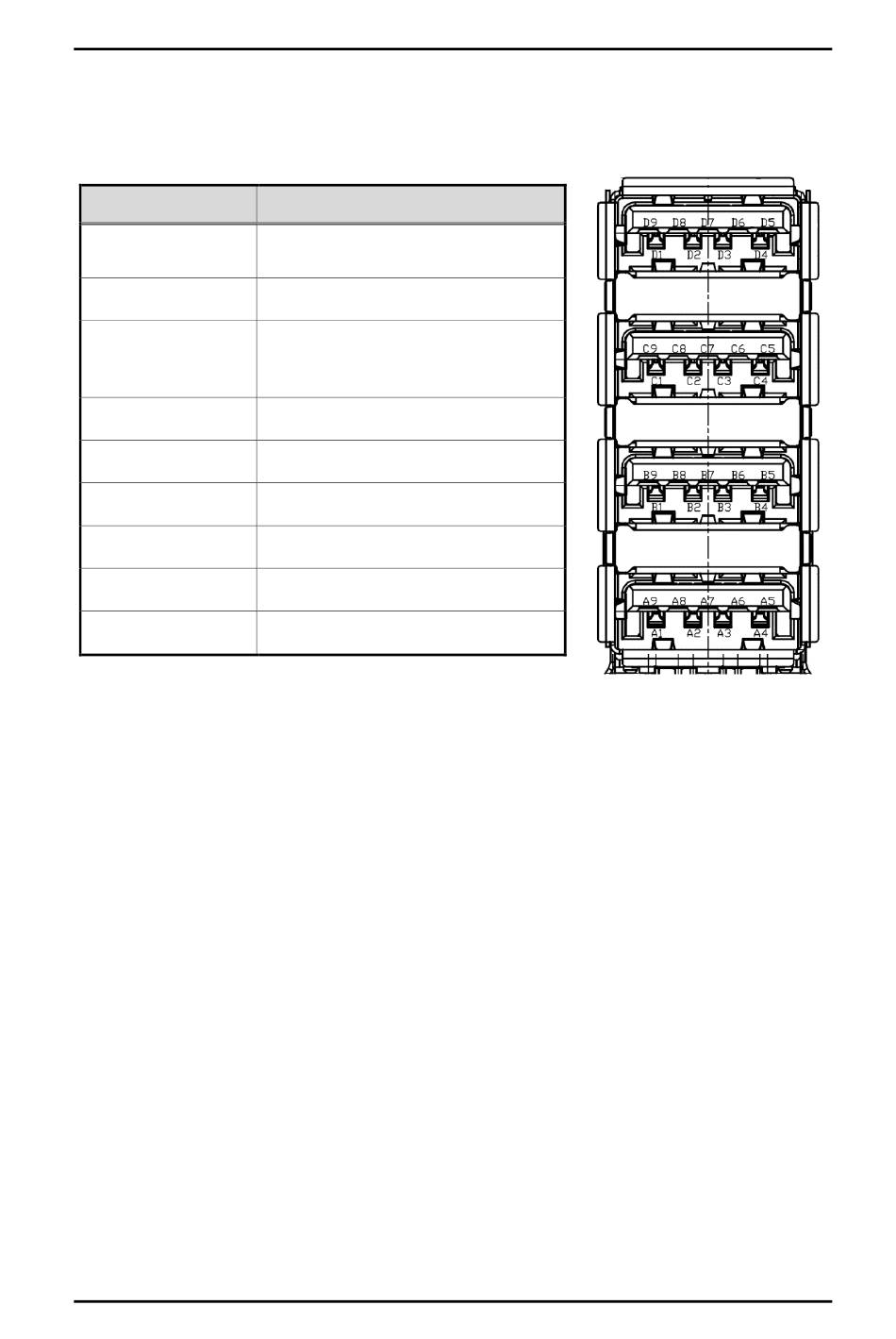

1.7.7 USB 3.2 Connector (CN8、CN10)
The Universal Serial Bus connectors are compliant with USB 3.2 (10Gb/s), ideal for installing
USB peripherals such as scanners, cameras, USB devices, etc.
Pins
A1、B1、C1、D1
A2、B2、C2、D2
A3、B3、C3、D3
A4、B4、C4、D4
A5、B5、C5、D5
A6、B6、C6、D6
A7、B7、C7、D7
A8、B8、C8、D8
A9、B9、C9、D9
Introduction
Signal USB Port 0
USB_VCC (+5V level standby power)
USB_Data-
USB_Data+
GND
SSRX-
SSRX+
GND
SSTX-
SSTX+
