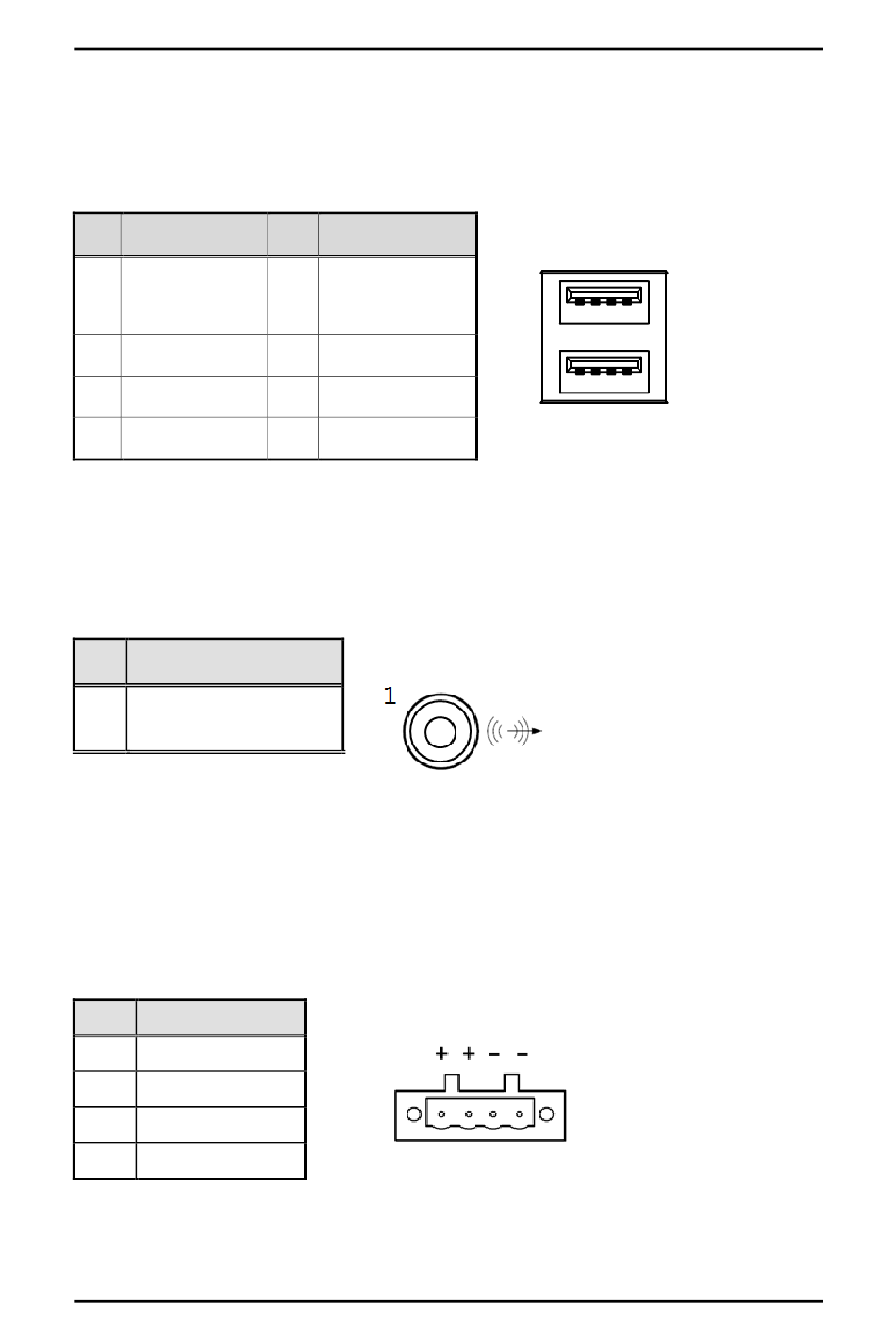

USB 2.0 Connector (CN11)

The Universal Serial Bus connectors are compliant with USB 2.0 (480Mbps),
providing ideal interfaces ideal for installing USB peripherals such as a keyboard,
mouse, scanner, etc.
Pin Signal USB Port 0
USB VCC
1
(+5V level)
2 USB D-
3 USB D+
4 Ground (GND)
1.7.5

Audio Connector (CN12)

This audio jacks are ideal for Audio Line-out.
Pins Signals
1 Line Out
1.7.6

DC-in Phoenix Power Connector (CN15)

The system supports the 24VDC (uMin=19V/uMax=30V) Phoenix DC-in connector for system
power input.
Pins Signals
1 DC+
2 DC+
3 DC-
4 DC-
Introduction
Pin Signal USB Port 1
USB VCC
5
(+5V level)
6 USB D-
7 USB D+
8 Ground (GND)
IPC974 Series User's Manual
5 6 7 8
1 2 3 4
