2.3 Installing Mini PCIe / M.2 Module

2.3.1

Installing Mini PCIe / M.2 Module

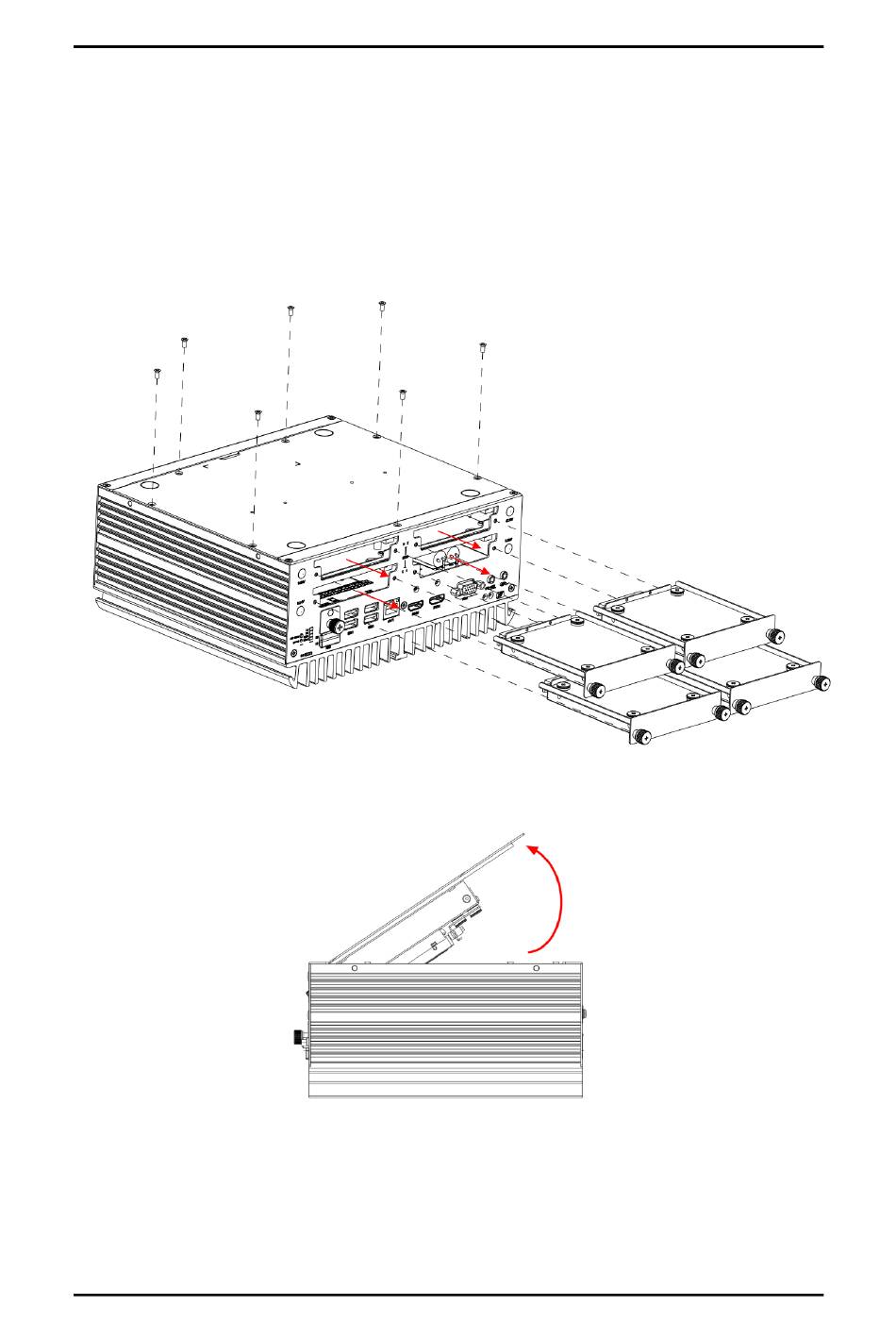

Step 1 Turn off the system and unplug the power cord.

Step 2 Turn the system upside down and loosen the SATA trays.

Step 3 Extract both SATA trays as shown.

Step 4 Loosen all screws and open the bottom cover carefully.

※After lifting up the cover, please remove the fixed SATA cable first and then

put the cover aside.

Hardware Installation
