Step 8 Organize the cables and reinstall them into the SATA trays according
to Step 5, then tighten all the screws.

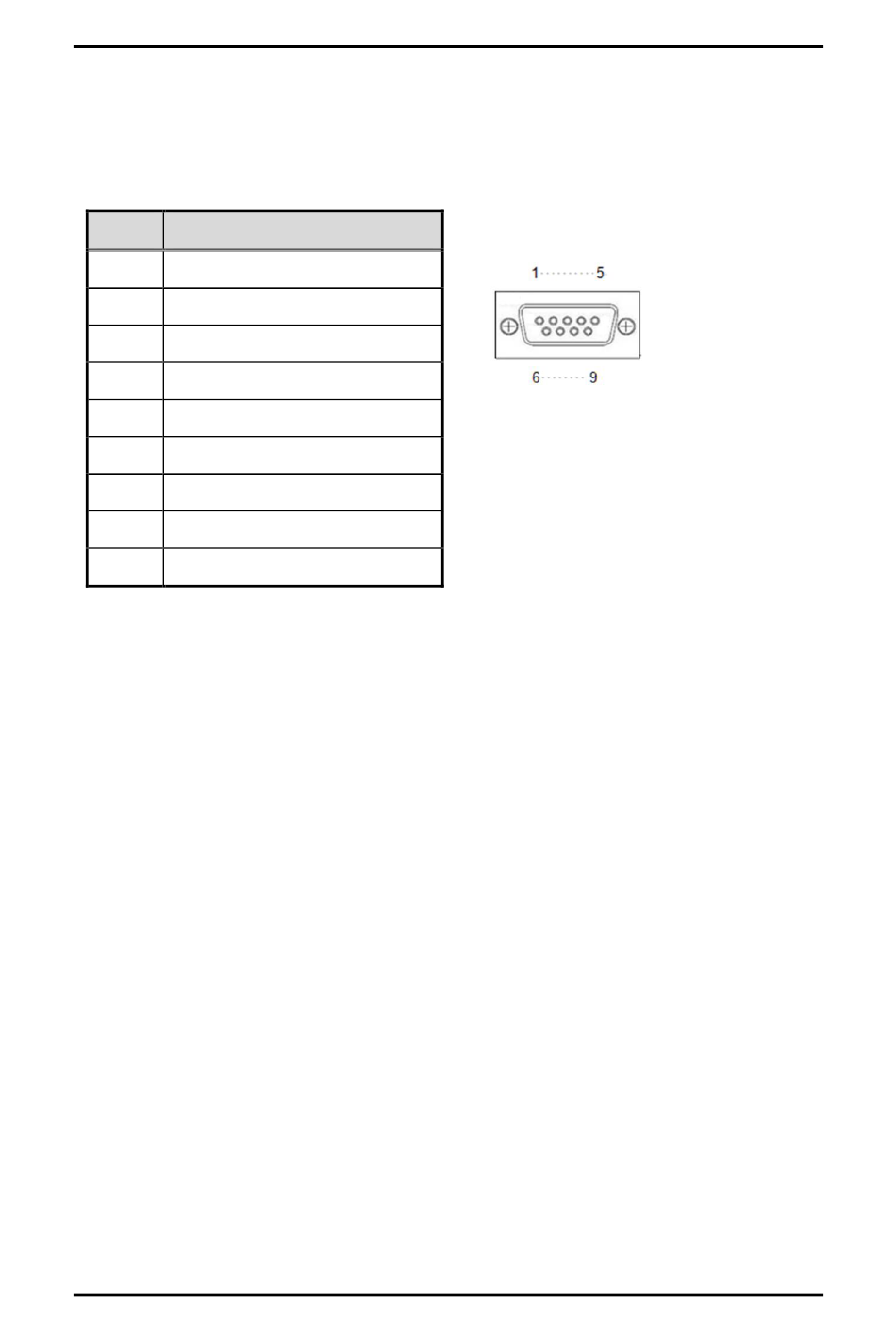

[Note] For manufacturing the external cables, you can refer to the pin definitions
below. It is recommended to use shielding for manufacturing the wires.
Pins Description
Audio Ground
1
Line Out Left
2
Line Out Right
3
Audio Ground
4
Line In Left
5
Line In Right
6
Audio Ground
7
Mic In
8
Audio Ground
9
