3.3.5

USB 3.1 Connector

The system has six USB port, four port compliant with U SB 3.1 gen2 (10GB/s), two
port compliant with USB 3.1 gen1 (5GB/s), and ideally for installing USB peripherals
such as scanner, camera and USB devices, etc.

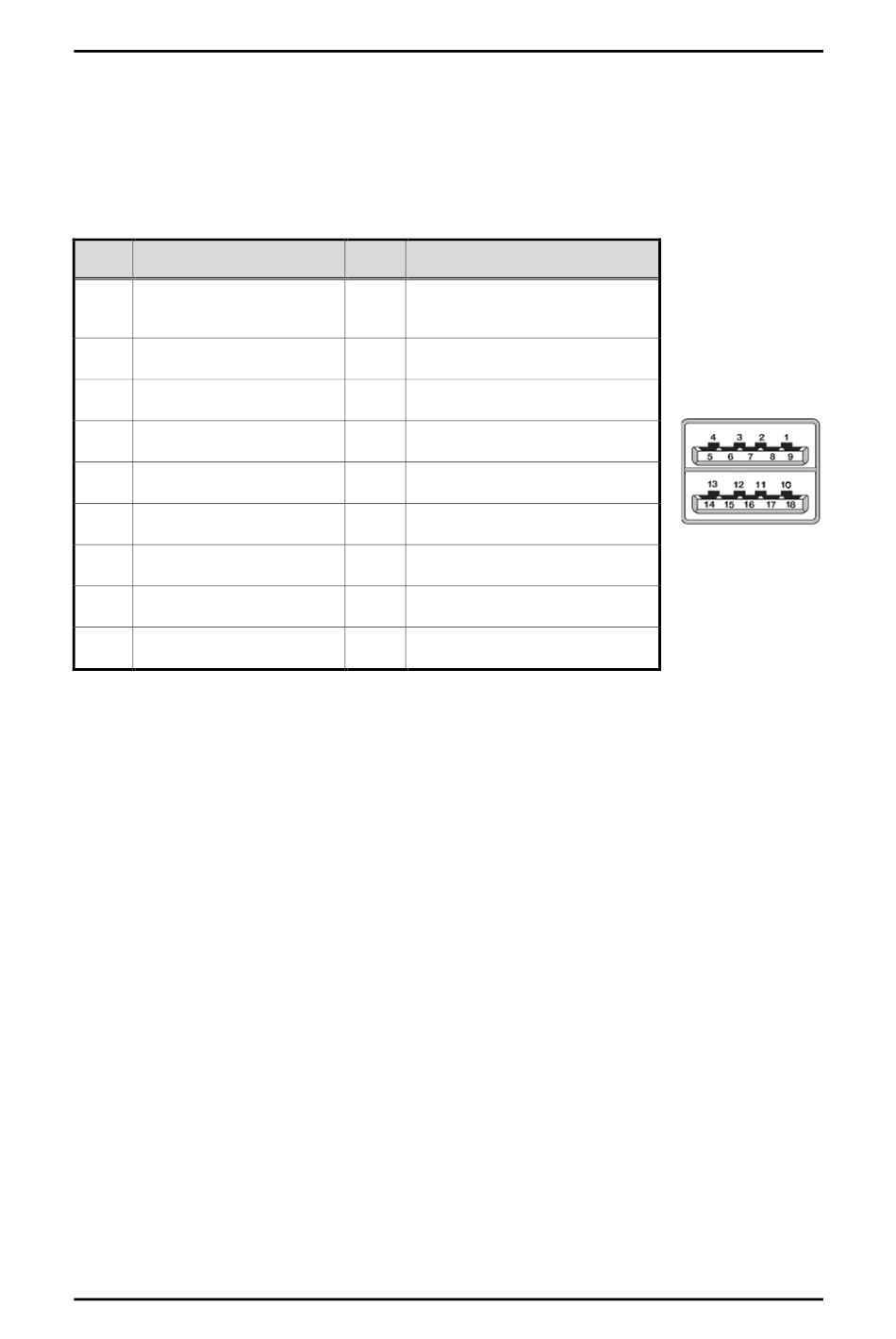

Pins Signal USB Port 0
USB_VCC (+5V level
1
standby power)
2 USB_Data-
3 USB_Data+
4 GND
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX+
※ CN22、CN23 are USB3.1 gen2
※ CN4 is USB3.1 gen1
Jumper & Connector Settings
eBOX671-521-FL Series user's Manual
Pins Signal USB Port 1
USB_VCC (+5V level standby
10
power)
11 USB_Data-
12 USB_Data+
13 GND
14
SSRX-
15
SSRX+
16 GND
17
SSTX-
18
SSTX+
