1.8.4

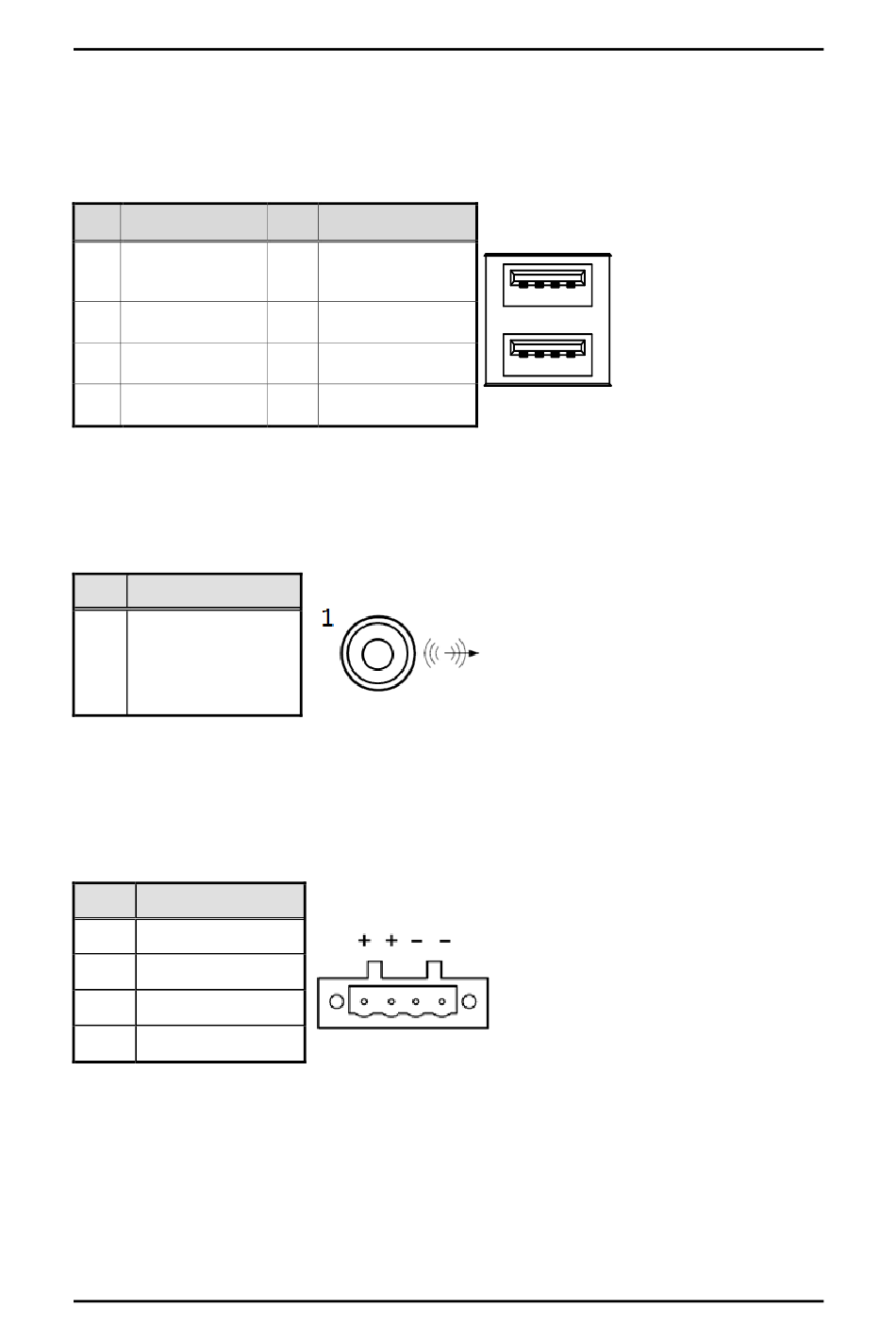

USB 2.0 Connector (CN13)
The Universal Serial Bus connectors are compliant with USB 2.0 (480Mbps),
providing ideal interfaces ideal for installing USB peripherals such as a keyboard,
mouse, scanner, etc.
Pin Signal USB Port 0
USB VCC
1
(+5V level)
2
USB #0_D-
3
USB #0_D+
4
Ground (GND)
1.8.5
Audio Connector (CN1)
These two audio jacks are ideal for Audio Mic-In and Audio Line-out.
Pins Signals
1
Line Out
1.8.6
DC-in Phoenix Power Connector (CN12)
The system supports the 24VDC (uMin=19V/uMax=30V) Phoenix DC-in connector for system
power input.
Pins Signals
1
DC+
2
DC+
3
DC-
4
DC-
Introduction
Pin
Signal USB Port 1
USB VCC
5
(+5V level)
6
USB #1_D-
7
USB #1_D+
8
Ground (GND)
IPC960/IPC962/IPC964-525 Series User's Manual
5 6 7 8
1 2 3 4
23
