UST510-52B-FL Series user's Manual
SECTION 2
HARDWARE INSTALLATION
The UST510-52B-FL is user-friendly for various hardware configurations, such as CPU,
DRAM, HDD (Hard Disk Drive), SSD (Solid State Drive), and PCI Express Mini card modules.
Section 2 contains guidelines for hardware installation.
2.1 Installing CPU & DRAM
Step 1 Turn off the system and unplug the power cord.

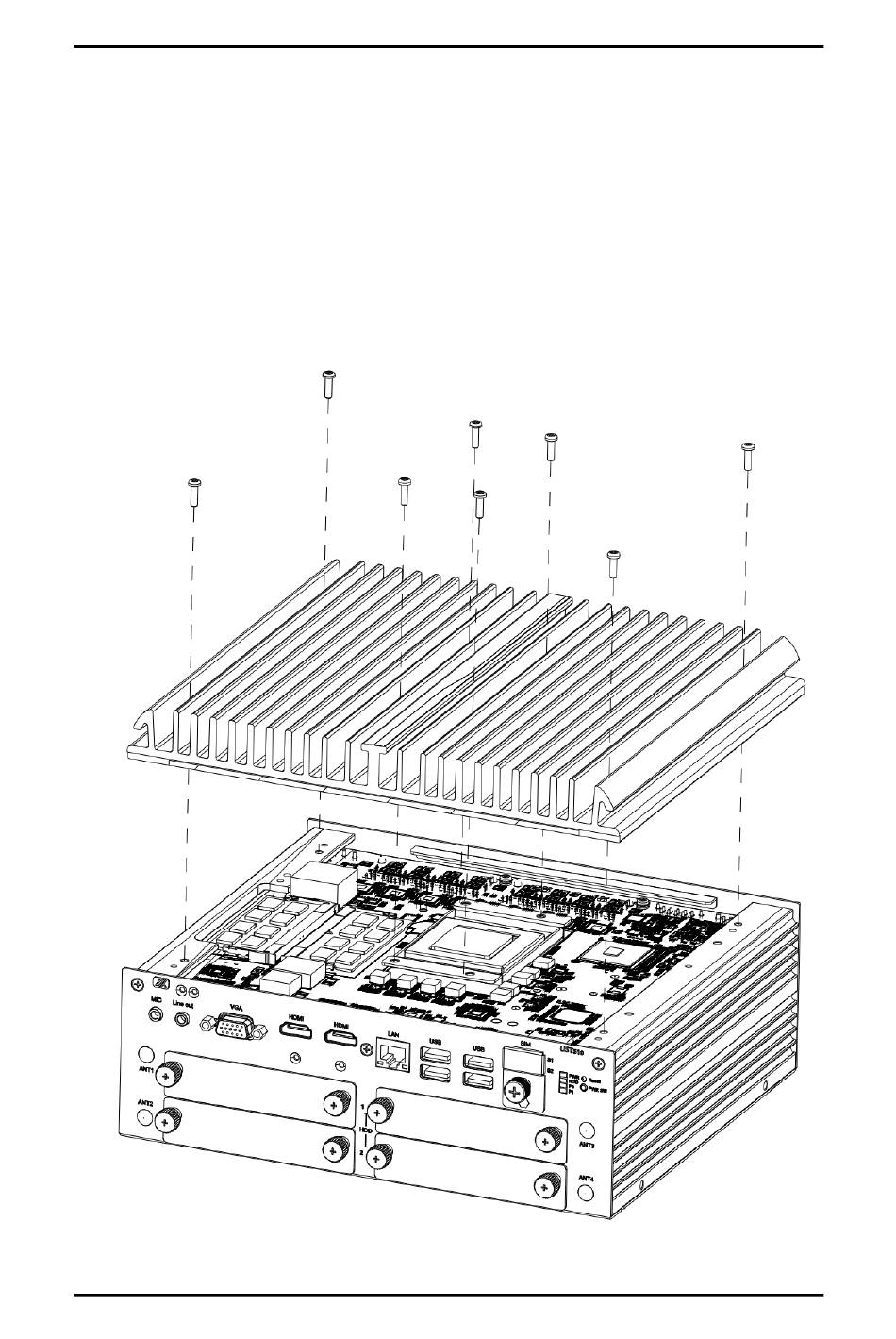

Step 2 Loosen all screws to remove the top cover.
Hardware Installation
13
