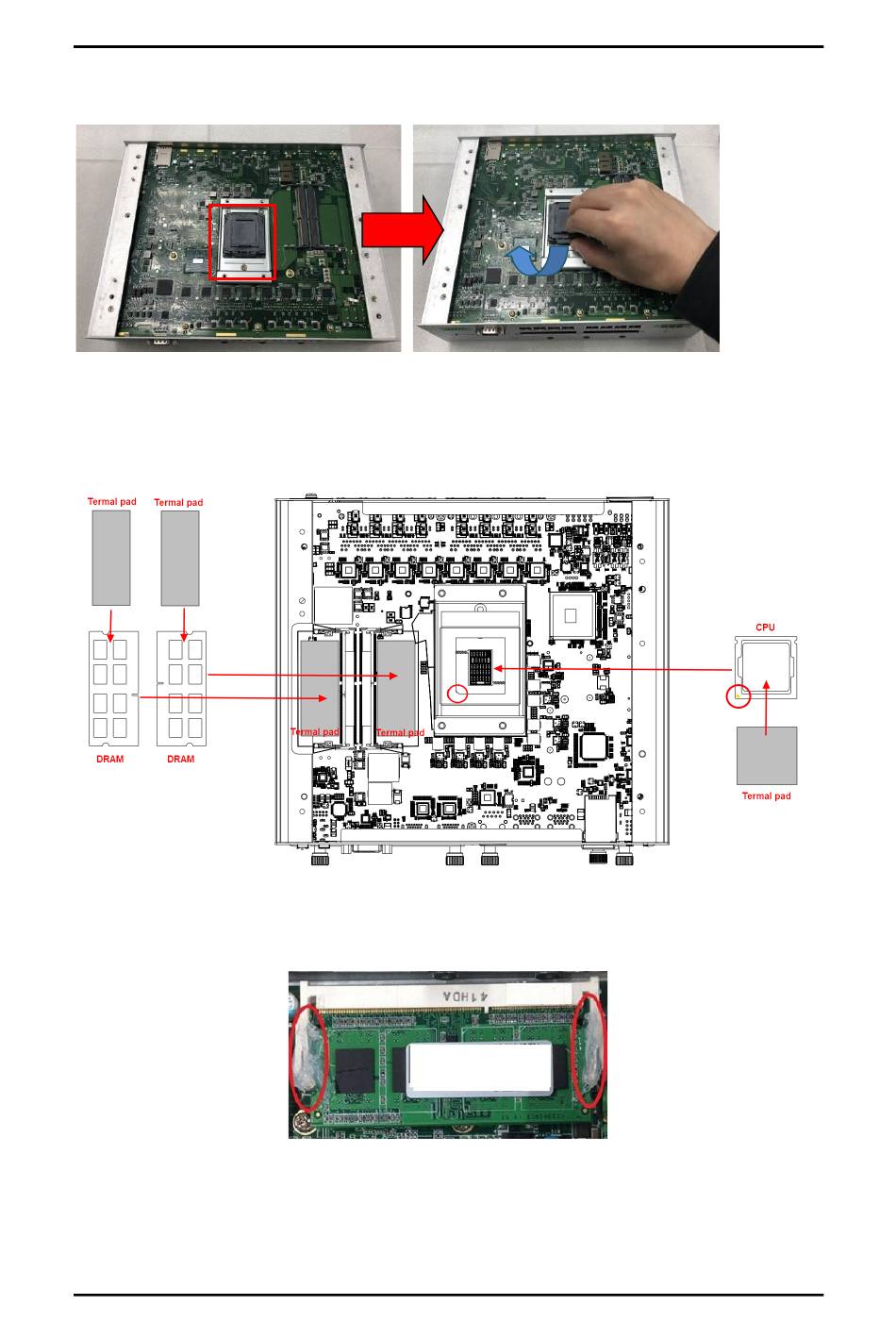

Step 4 Take the protective cover down carefully.
Step 5
Stick thermal pad and install DRAM and CPU .
※ When installing the CPU, pay attention to the CPU's orientation and align the
arrow mark on the CPU with the arrow key on the socket (Step 4). And apply the
thermal pad on top of the processor.
※
The memory module is locked by two latches on the sides. We recommend using
"LDC737" silicone on both sides of the memory for optimal protection against
vibration.
Hardware Installation
UST510-52B-FL Series user's Manual
15
