Digital I/O Specification
Digital Input:
Input channels: 6, source type
Input voltage: 0 to 30VDC
Input level for dry contacts:
Logic level 0: close to ground
Logic level 1: open
Input level for wet contacts:
Logic level 1: +3VDC max.
Logic level 0: +/- 10VDC min. to +/-30VDC max. (source to digital input)Digital output:
output channels: 2 sink type
output current: Max. 200 mA per channel, current sink type.
on-state voltage:12~ 24VDC nominal
Isolation: 2KV
External voltage: 10 to 30VDC, open collector to 30V

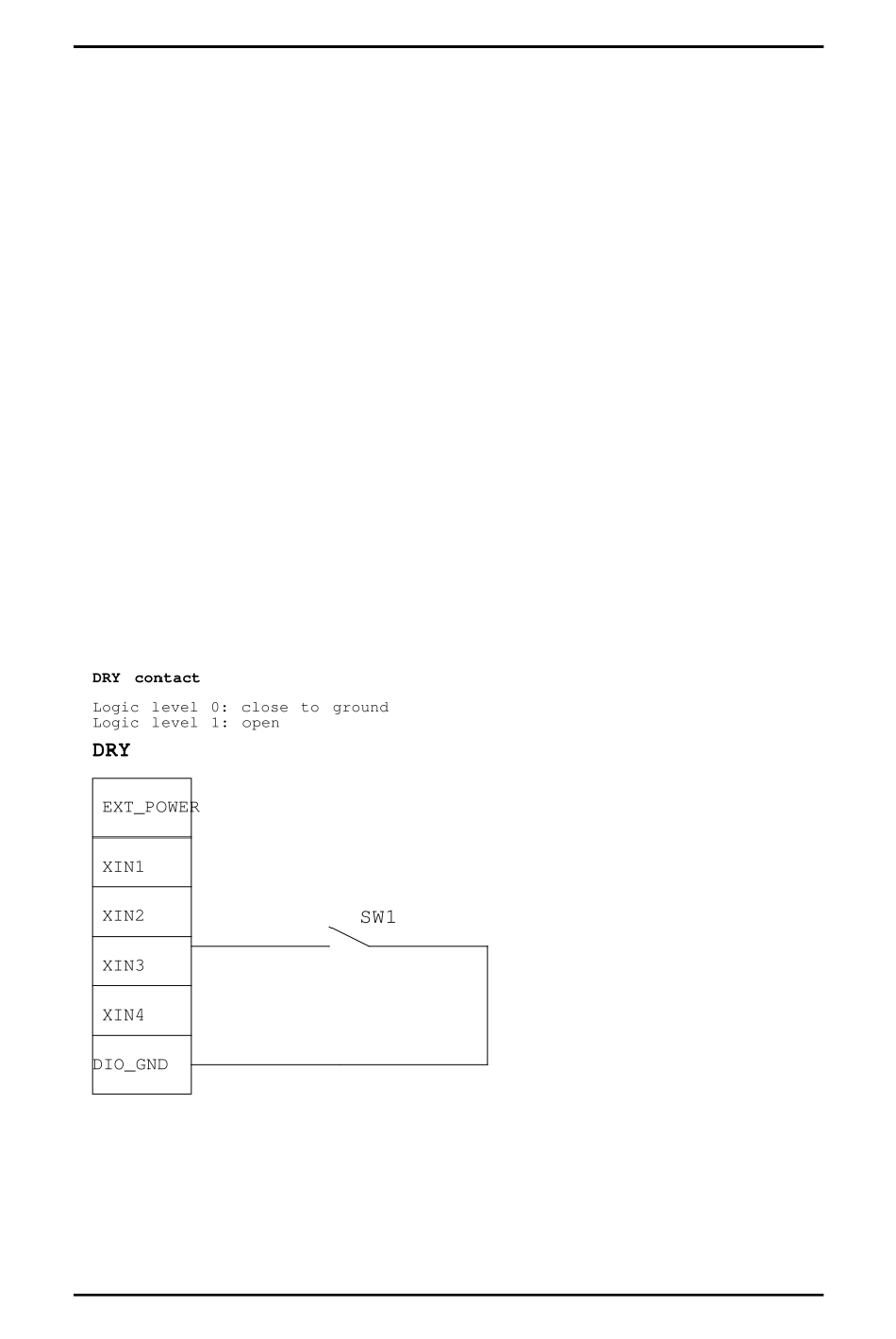

Digital Input Wiring
Digital I/O
