7 General Purpose I/O Installation and Configuration

7.1 General Purpose I/O OC7C0

The General Purpose I/O option adds 3 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output, and temperature measure-
ment support (Pt1000, Ni1000, and KTY81).
For detailed specifications, see
7.2 Required Tools
• Torx 20 screwdriver for mounting the option and EMC plate.
• Slotted screwdriver (maximum 3 mm) for releasing the spring-loaded terminals of the plug connector.
7.3 Pin Assignment for General Purpose I/O
2 4 6 8 10 12 14
1 3 5 7 9 11 13

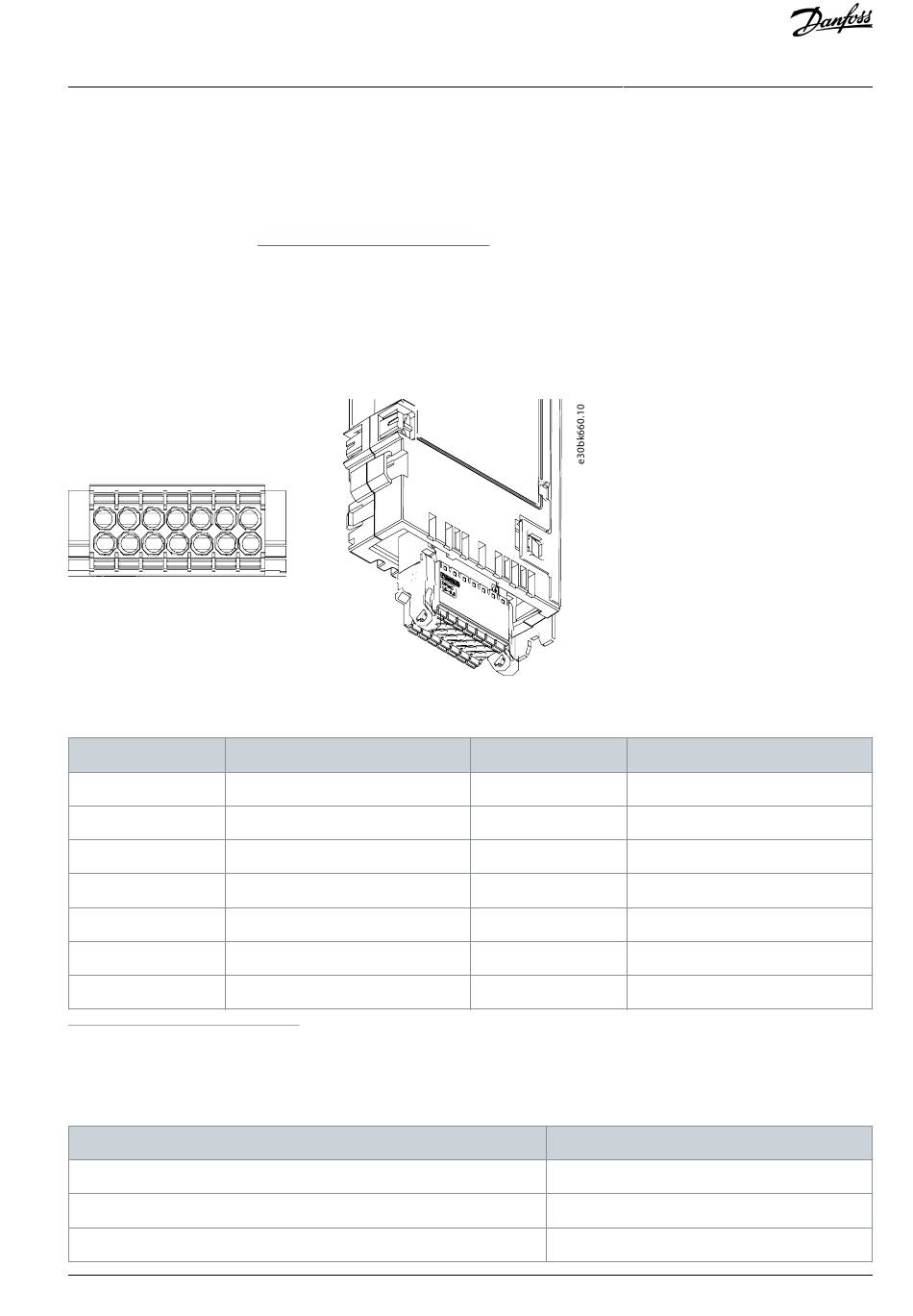

Illustration 30: General Purpose I/O Option Terminals
Table 28: Pin Assignment and Function for General Purpose I/O
Numbering Functions
1 + 10 V
3 Analog input 2 (T3)
5 GND
7 Digital output 1 (T7)
9 24 V
11 Digital input 1 (T11)
13 Digital input 3 (T13)
The designations in brackets indicate terminal addressing in software.
1
7.4 General Purpose I/O Specifications
Table 29: Technical Specifications for General Purpose I/O OC7C0
Functions
Cable type
Flexible/rigid wire without cable end sleeves
Flexible wire without cable end sleeves
Danfoss A/S © 2023.06
7.4 General Purpose I/O Specifications.
X14
(1)
General Purpose I/O Installation
Numbering Functions
2 Analog input 1 (T2)
4 Analog output (T4)
6 GND
8 Digital output 2 (T8)
10 DGND
12 Digital input 2 (T12)
14 DGND
Data
Cu, 75 °C (167 °F)
0.2–1.5 mm² (24–16 AWG)
0.2–1.5 mm² (24–16 AWG)
AQ390830267692en-000601 / 136R0273 | 49
