Functional Extension Options
Operating Guide
17
15
9
7
3
5
2
1
18
16
14
12
10
8
6
4
13
11

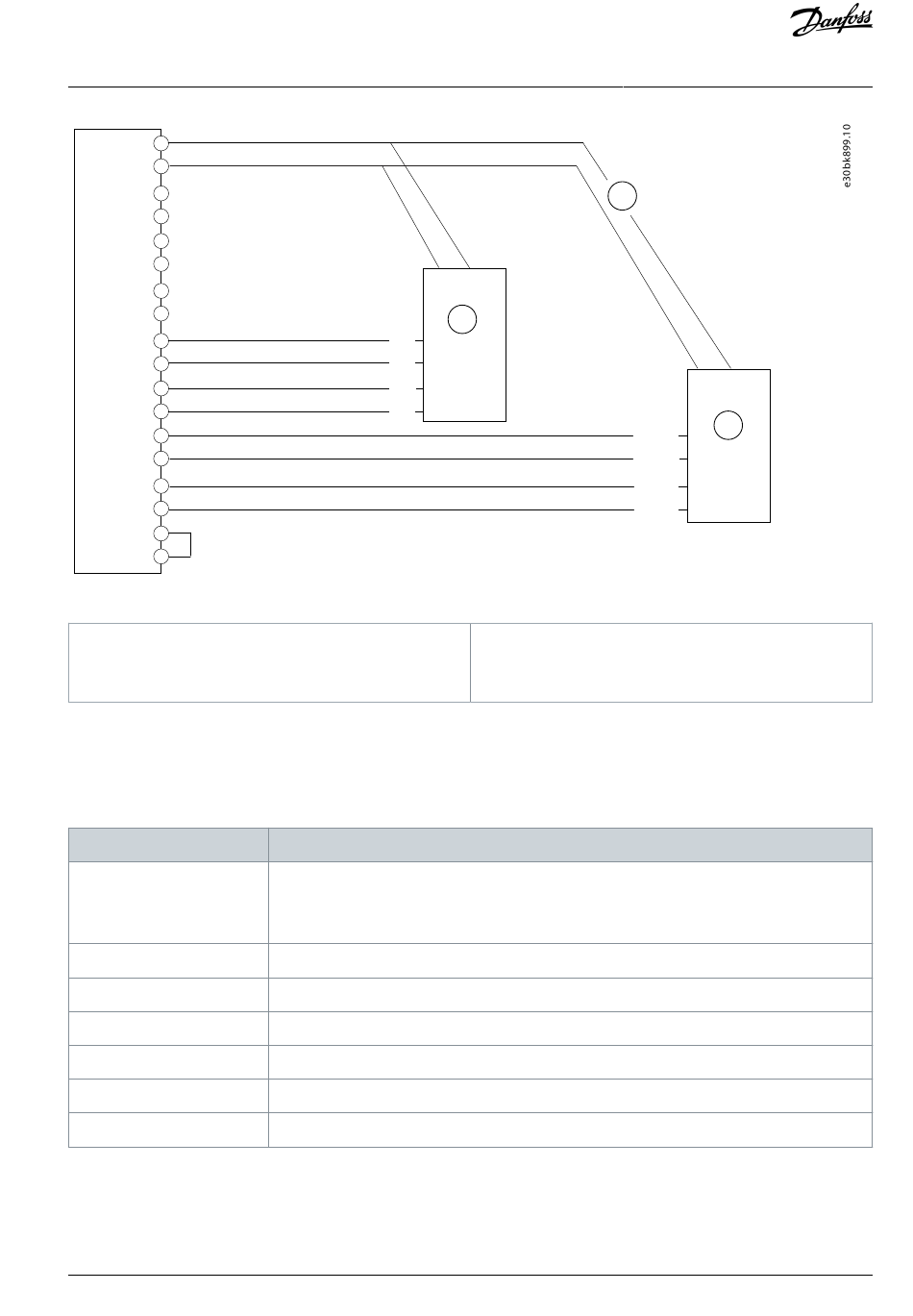

Illustration 14: Wiring Configuration for SSI and Incremental (TTL or HTL) Encoder
1 Incremental encoder
2 External power supply
5.5.9 SSI Encoder with Incremental or SinCos Track
This example shows the connection of an SSI encoder with incremental (TTL, HTL) or SinCos track on Z,D and A,B as channel 1. The
absolute position is read from the encoder and used as actual position. The incremental/SinCos track is used to compensate for
communication delay and too few absolute position readings due to communication speed.
Table 16: Parameters for SSI Encoder with Incremental or SinCos Track
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.5.1 Resolution Channel 1
9.6.1 Singleturn Resolution
9.6.2 Multiturn Resolution
9.6.4 SSI Data Format
9.6.5 BiSS/SSI Clock Rate
Danfoss A/S © 2023.06
A+
A–
B+
B–
Setting
Select the type of connected encoder:
[33] SSI Z,D with 2 track incremental A,B.
[34] SSI Z,D with 2 track SinCos A,B.
Set the appropriate voltage.
Set the resolution of the incremental track connected to A and B in pulses per revolution.
Set the number of bits used for 1 revolution of the connected SSI encoder.
Set the number of bits used for counting the revolutions of the connected SSI encoder.
Select the data format of the connected SSI encoder.
Select the clock rate according to the SSI encoder specifications.
2
1
3 SSI absolute encoder
Encoder/Resolver Installation and
Configuration
3
Clock+
Clock–
Data+
Data–
