Functional Extension Options
Operating Guide
17
15
9
7
3
5
2
1
18
16
14
12
10
8
6
4
13
11

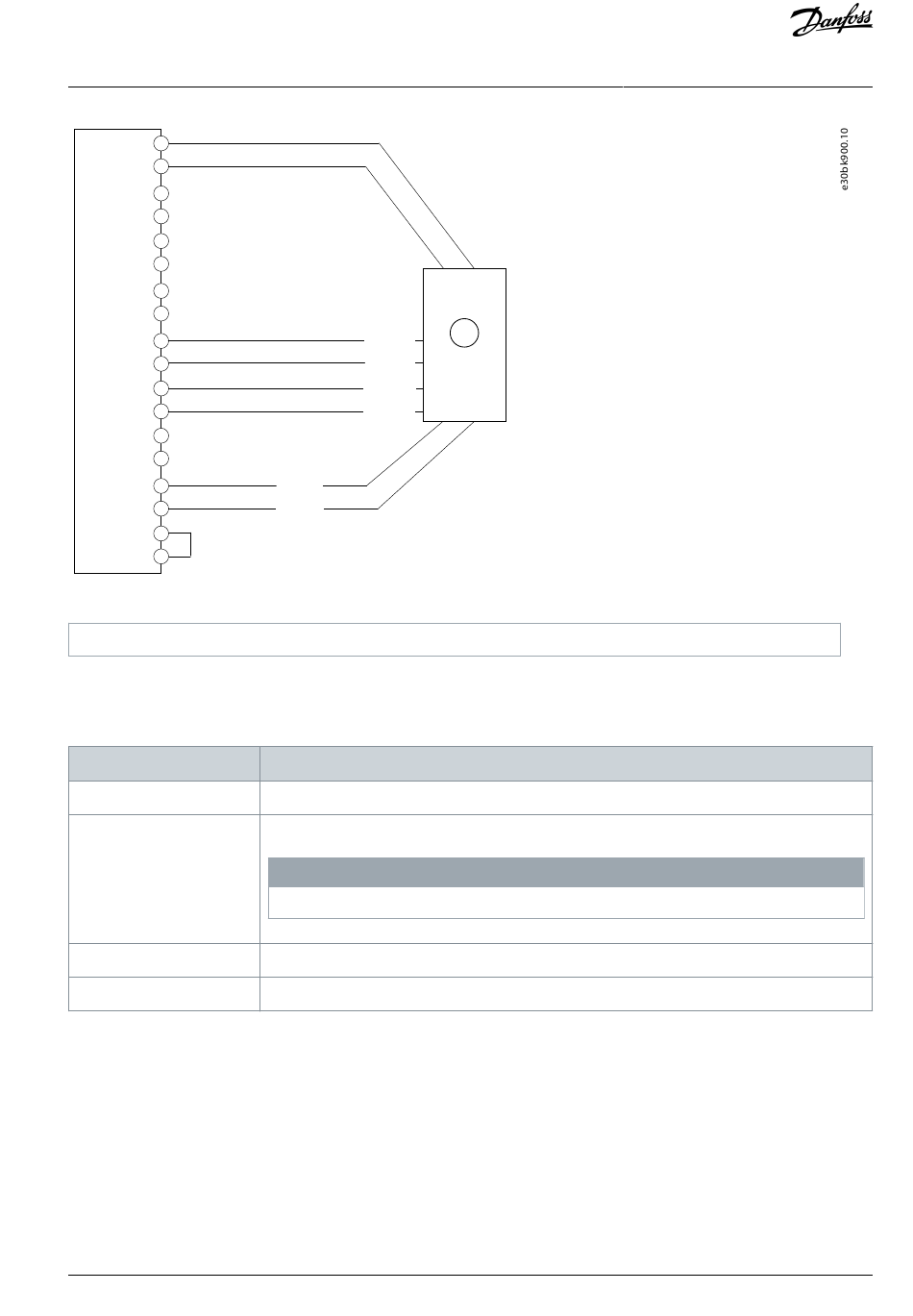

Illustration 18: Wiring Configuration for HIPERFACE®
1 Encoder
5.5.13 HIPERFACE DSL
Absolute position is read from the encoder and used to set the actual position after power-up.
Table 20: Parameters for HIPERFACE DSL
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.6.1 Singleturn Resolution
9.6.2 Multiturn Resolution
Danfoss A/S © 2023.06
+COS
REFCOS
+SIN
REFSIN
Data+
Data–
®
Setting
Select [26] Hiperface DSL D.
Set the appropriate supply voltage.
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
Set the number of bits used for 1 revolution.
Set the number of bits used for revolution count.
1
N O T I C E
Encoder/Resolver Installation and
Configuration
AQ390830267692en-000601 / 136R0273 | 31
