Danfoss iC7 Series Operating Manual page 32

Functional Extension Options
Operating Guide
17
15
9
7
3
5
2
1
18
16
14
12
10
8
6
4
13
11

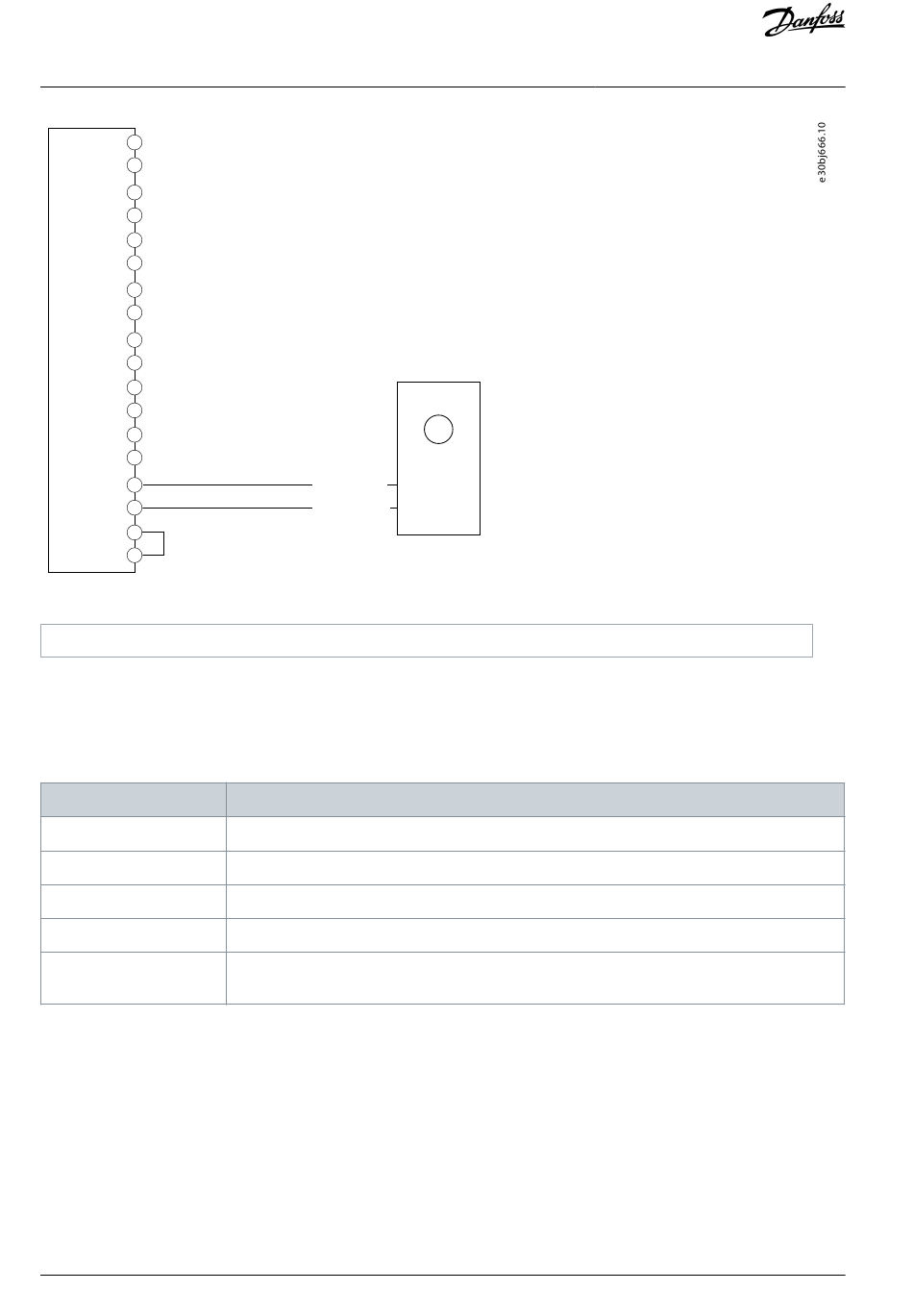

Illustration 19: Wiring Configuration for HIPERFACE DSL
1 Encoder
5.5.14 HIPERFACE DSL® and Incremental (TTL or HTL) Encoder
This example shows the connection of a HIPERFACE DSL® encoder on D as channel/feedback device 1 and a 2-track incremental
encoder on A and B as channel/feedback device 2. The HIPERFACE DSL® encoder supply (pin 17) is inactive so the incremental en-
coder must be supplied by an external power source.
Table 21: Parameters for HIPERFACE DSL® and Incremental (TTL or HTL) Encoder
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.5.2 Resolution Channnel 2
9.6.1 Singleturn Resolution
9.6.2 Multiturn Resolution
32 | Danfoss A/S © 2023.06
Data/supply+
Data/supply–
Encoder
®
Setting
Select [27] Hiperface DSL D + 2 track incremental A,B
Set the appropriate voltage.
Set the resolution of the incremental encoder connected to A and B in pulses per revolution.
Set the number of bits used for 1 revolution of the connected HIPERFACE DSL® encoder.
Set the number of bits used for counting the revolutions of the connected HIPERFACE DSL® encod-
er.
1
Encoder/Resolver Installation and
Configuration
AQ390830267692en-000601 / 136R0273
