Functional Extension Options
Operating Guide
17
15
9
7
3
5
2
1
18
16
14
12
10
8
6
4
13
11

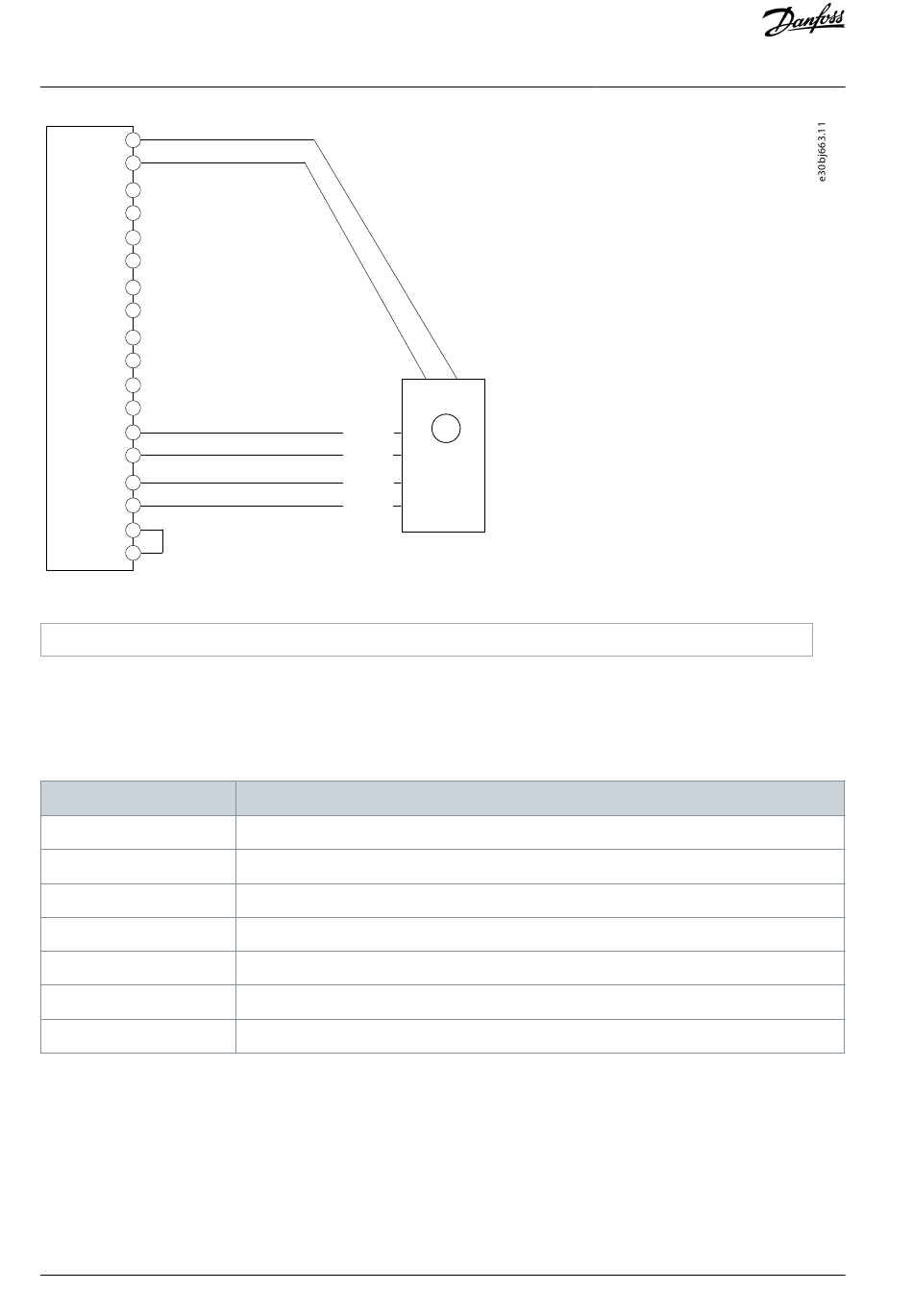

Illustration 13: Wiring Configuration for 2-Track SSI Encoder
1 Encoder
5.5.8 SSI and Incremental (TTL or HTL) Encoder
This example shows the connection of an SSI encoder on Z and D as channel 1 and a 2 track incremental encoder on A and B as
channel 2. An external supply may be needed if the power requirement exceeds the maximum power of the encoder supply (pin
17), or if the 2 encoders require different supply voltages.
Table 15: Parameters for SSI and Incremental (TTL or HTL) Encoder
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.5.2 Resolution Channel 2
9.6.1 Singleturn Resolution
9.6.2 Multiturn Resolution
9.6.4 SSI Data Format
9.6.5 BiSS/SSI Clock Rate
26 | Danfoss A/S © 2023.06
Clock+
Clock–
Data+
Data–
Setting
Select [19] SSI Z,D + 2 track incremental A,B.
Set the appropriate voltage.
Set the resolution of the incremental encoder connected to A and B in pulses per revolution.
Set the number of bits used for 1 revolution of the connected SSI encoder.
Set the number of bits used for counting the revolutions of the connected SSI encoder.
Select the data format of the connected SSI encoder.
Select the clock rate according to the SSI encoder specifications.
Encoder/Resolver Installation and
1
Configuration
AQ390830267692en-000601 / 136R0273
