Bundling Cables; Precautions; Bundling Description; Installation Verification - Ruijie RG-AP680-CD Hardware Installation And Reference Manual

Hardware Installation and Reference Guide
3.7

Bundling Cables

3.7.1

Precautions


Bundle cables neatly to ensure aesthetics.

Bend twisted pairs naturally or to a large radius close to the connector.

Do not over tighten twisted pair bundle as it may reduce the cable life and performance.
3.7.2

Bundling Description

After the cables are connected with the device through the waterproof plugs and power-on is normal, use a
cable tie to bundle the cables on the mounting plate and then fix the cables neatly.

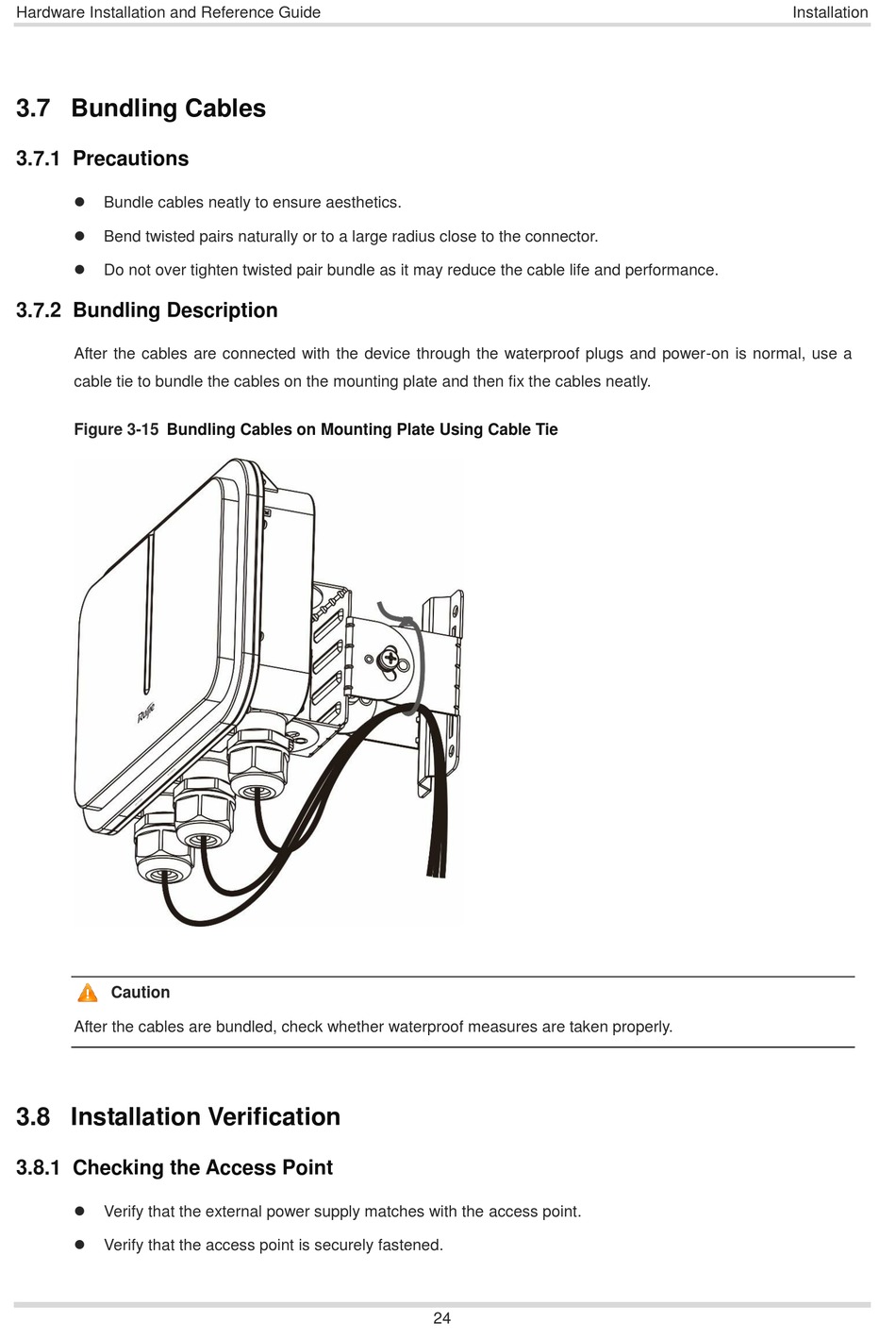

Figure 3-15 Bundling Cables on Mounting Plate Using Cable Tie
Caution
After the cables are bundled, check whether waterproof measures are taken properly.
3.8

Installation Verification

3.8.1

Checking the Access Point


Verify that the external power supply matches with the access point.

Verify that the access point is securely fastened.
24
Installation
