Hardware Installation and Reference Guide
Fixed Management Port
LED
Button
1.4.4

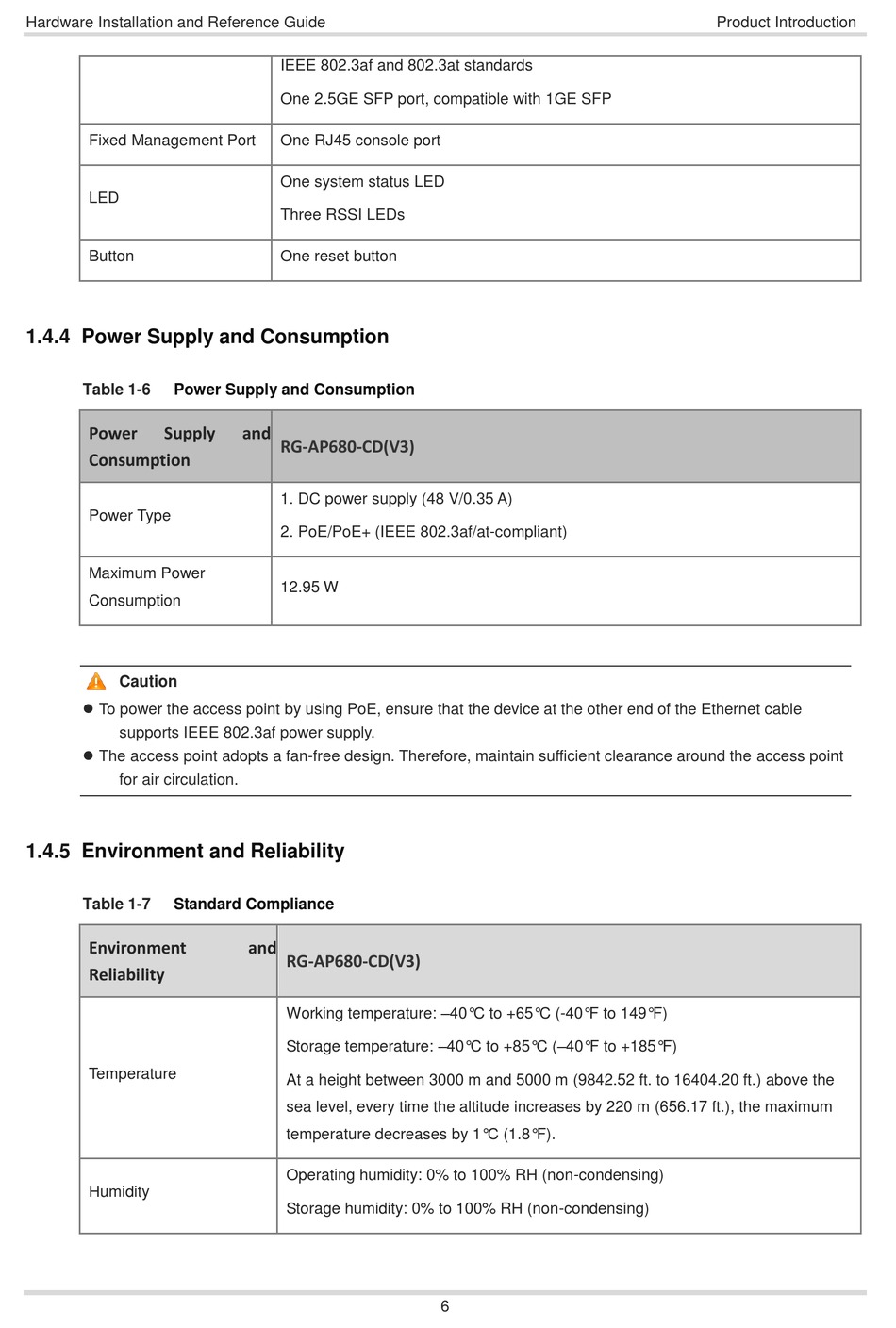

Power Supply and Consumption

Table 1-6 Power Supply and Consumption
Power Supply
Consumption
Power Type
Maximum Power
Consumption
Caution
 To power the access point by using PoE, ensure that the device at the other end of the Ethernet cable
supports IEEE 802.3af power supply.
 The access point adopts a fan-free design. Therefore, maintain sufficient clearance around the access point
for air circulation.
1.4.5

Environment and Reliability

Table 1-7 Standard Compliance
Environment
Reliability
Temperature
Humidity
IEEE 802.3af and 802.3at standards
One 2.5GE SFP port, compatible with
One RJ45 console port
One system status LED
Three RSSI LEDs
One reset button
and
RG-AP680-CD(V3)
1. DC power supply
2. PoE/PoE+ (IEEE 802.3af/at-compliant)
12.95 W
and
RG-AP680-CD(V3)
Working temperature: –40° C to +65° C (-40° F to 149° F)
Storage temperature: –40° C to +85° C (–40° F to +185° F)
At a height between 3000 m and 5000 m
sea level, every time the altitude increases by 220 m (656.17 ft.), the maximum
temperature decreases by 1° C (1.8° F).
Operating humidity: 0% to 100% RH (non-condensing)
Storage humidity: 0% to 100% RH (non-condensing)
1GE SFP
(48 V/0.35 A)
(9842.52 ft. to 16404.20
6
Product Introduction
ft.) above the
