The power cables connecting moving parts such as door grounding wires should be reserved with some
access after being assembled to avoid suffering tension or stress. When a moving part reaches the
installation position, the remaining cable part should not touch heat sources, sharp corners, or sharp
edges. If heat sources cannot be avoided, high-temperature cables should be used.
○
When screw threads are used to fasten cable terminals, the bolt or screw must be tightly fastened, and
anti-loosening measures should be taken, as shown in

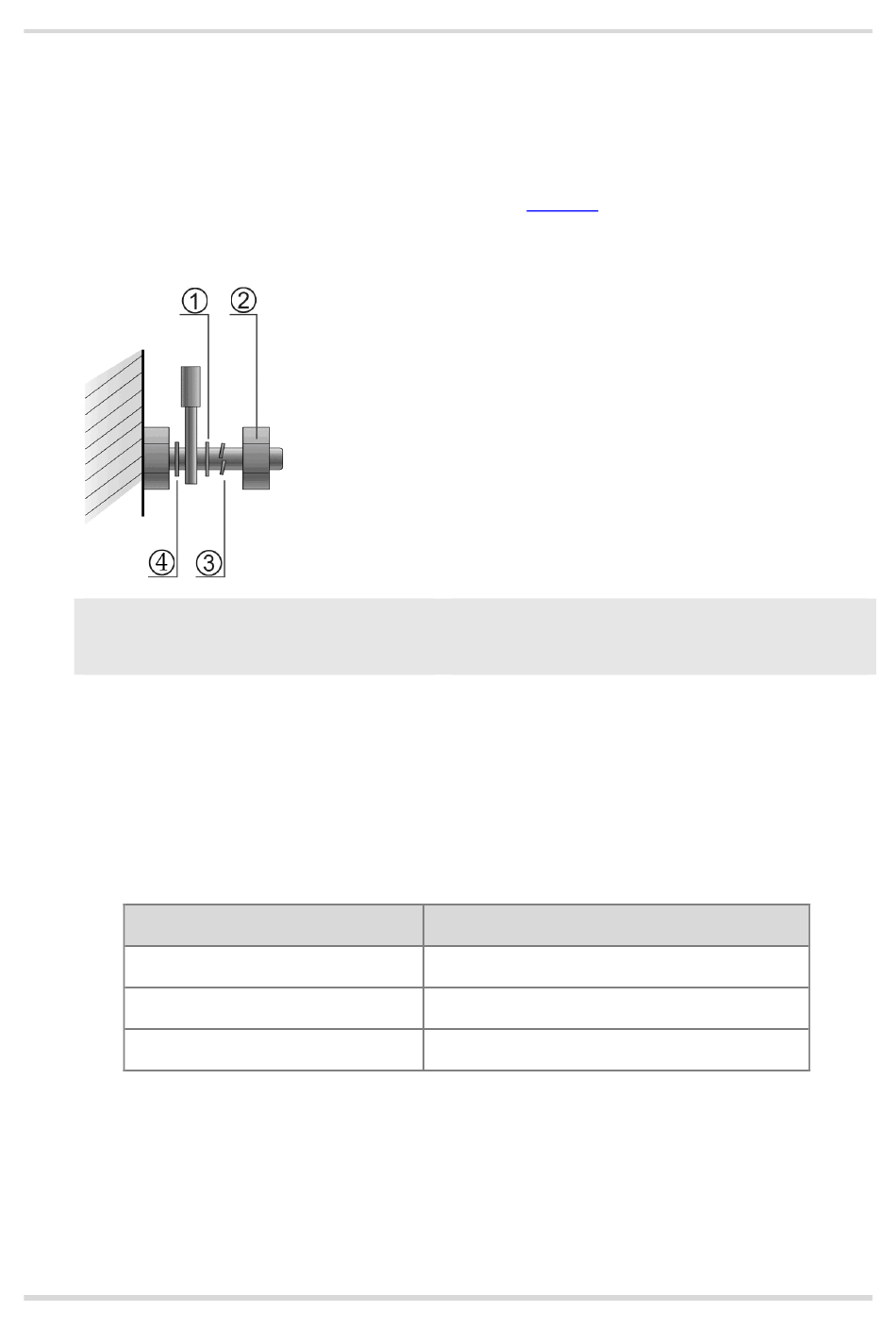

Figure 7-7 Fastening Cable Lugs
① Flat washer
② Nut
○
Hard power cords should be fastened in the terminal connection area to prevent stress on terminal
connection and cable.
○ Do not use self-tapping screws to fasten terminals.
○ Power cables of the same type and in the same cabling direction should be bundled up into cable
bunches, with cables in cable bunches clean and straight.
○
Bundle up cables using cable ties based on the following table.
Cable Bunch Diameter
10 mm (0.39 in.)
10 mm to 30 mm (0.39 in. x 1.18 in.)
30 mm (1.18 in.)
○ No knot is allowed in cabling or bundling.
○ For wiring terminal blocks (such as circuit breakers) with cord end terminals, the metal part of the cord
end terminal should not be exposed outside the terminal block when assembled.
Figure 7-7.
③ Spring washer
④ Flat washer
Distance Between Every Binding Point
80 mm to 150 mm (3.15 in. to 5.91 in.)
150 mm to 200 mm (5.91 in. x 7.87 in.)
200 mm to 300 mm (7.87 in. x 11.81 in.)
