Hardware Installation and Reference Guide

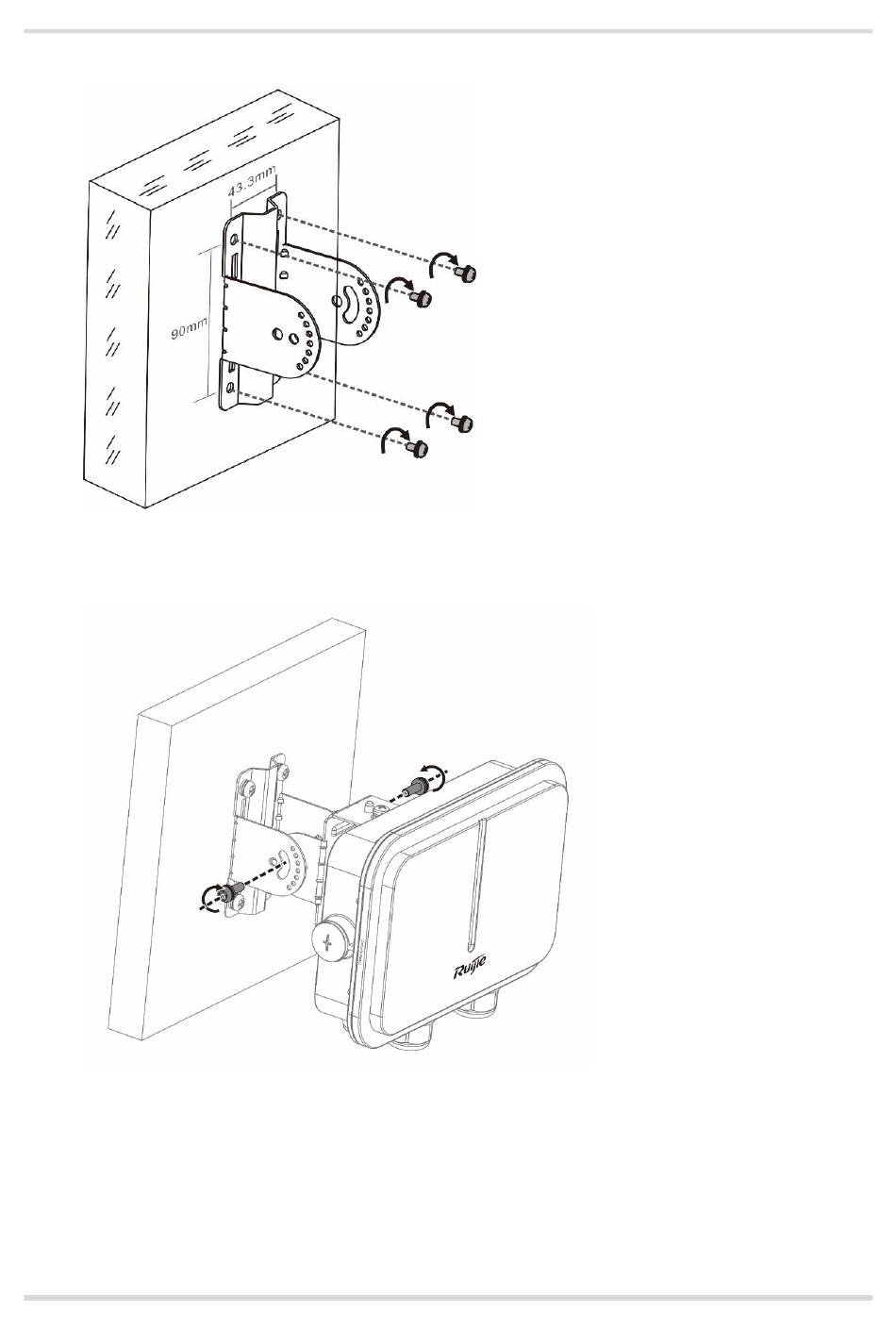

Figure 3-4
Installing Mounting Plate
(3) Secure the mounting bracket to the mounting plate using two M6 screws.
Figure 3-5
Securing Mounting Bracket to Mounting Plate
3.4.2
Mounting the Access Point on a Pole
(1) Secure the mounting bracket to the bottom of the RG-AP680-CD(V3) access point using four M5 screws.
18
Installation
