Hardware Installation and Reference Guide
3.6

Connecting Cables

3.6.1

Connecting the Grounding Cable

The grounding cable needs to be made on site. Connect one end of the grounding cable delivered with the
device to the ground hole of the device through an OT terminal and the other end to the ground through another
OT terminal. The cable length can be trimmed based on the on-site situation to avoid waste.

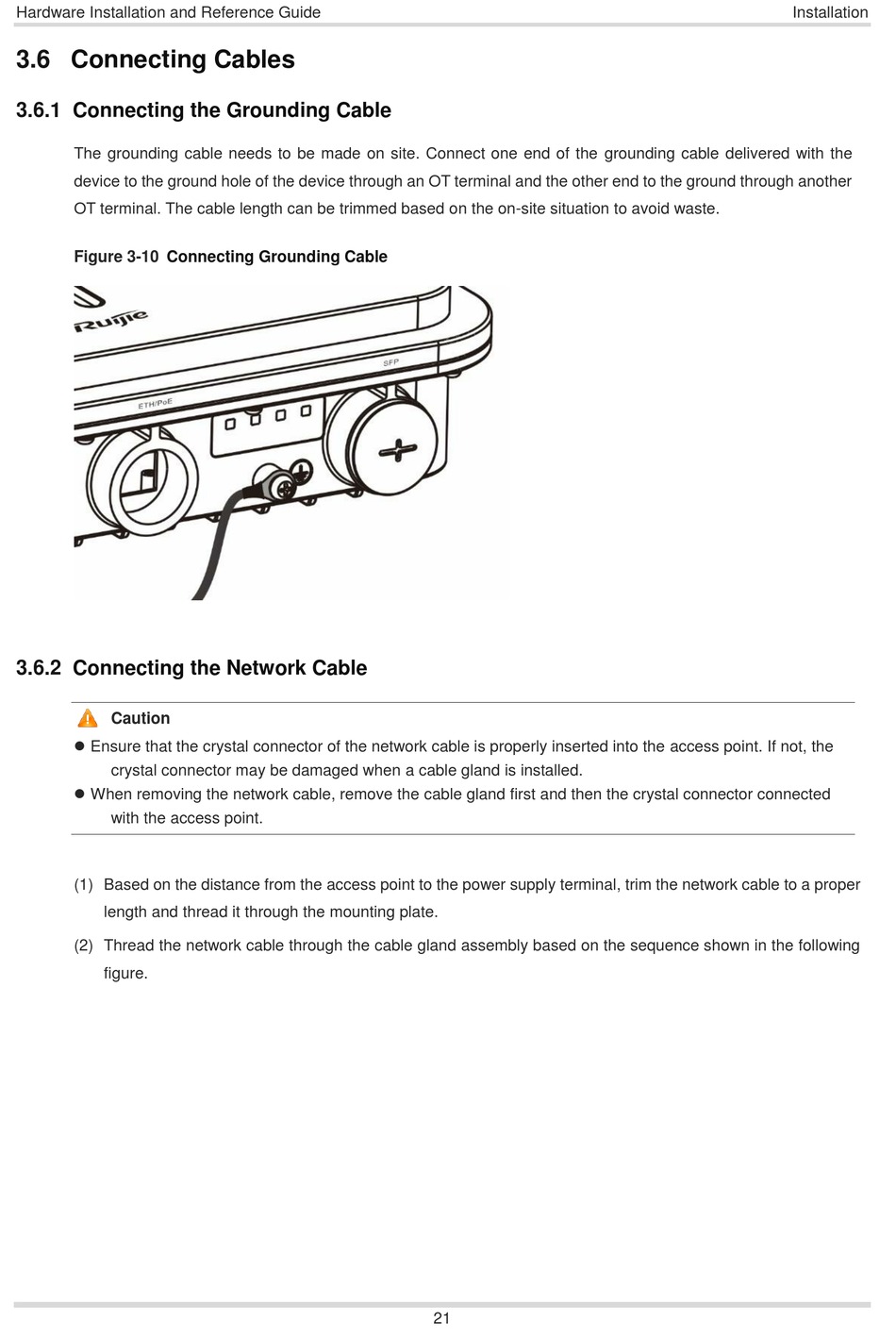

Figure 3-10 Connecting Grounding Cable
3.6.2

Connecting the Network Cable

Caution
 Ensure that the crystal connector of the network cable is properly inserted into the access point. If not, the
crystal connector may be damaged when a cable gland is installed.
 When removing the network cable, remove the cable gland first and then the crystal connector connected
with the access point.
(1) Based on the distance from the access point to the power supply terminal, trim the network cable to a proper
length and thread it through the mounting plate.
(2) Thread the network cable through the cable gland assembly based on the sequence shown in the following
figure.
21
Installation
