(Optional) Connecting the DC Power Cord
Note
When the AP is powered by the DC power supply, its ports are facing downward. In this
case, the AP can be protected against only splashing water.
The DC power cord should be used together with the cable gland. Paint waterproof
plaster and wrap the waterproof tapes around the DC power cord between B (split
gasket) and C (grommet). The waterproof power cord should be at least 5 mm (0.20 in.)
in diameter.

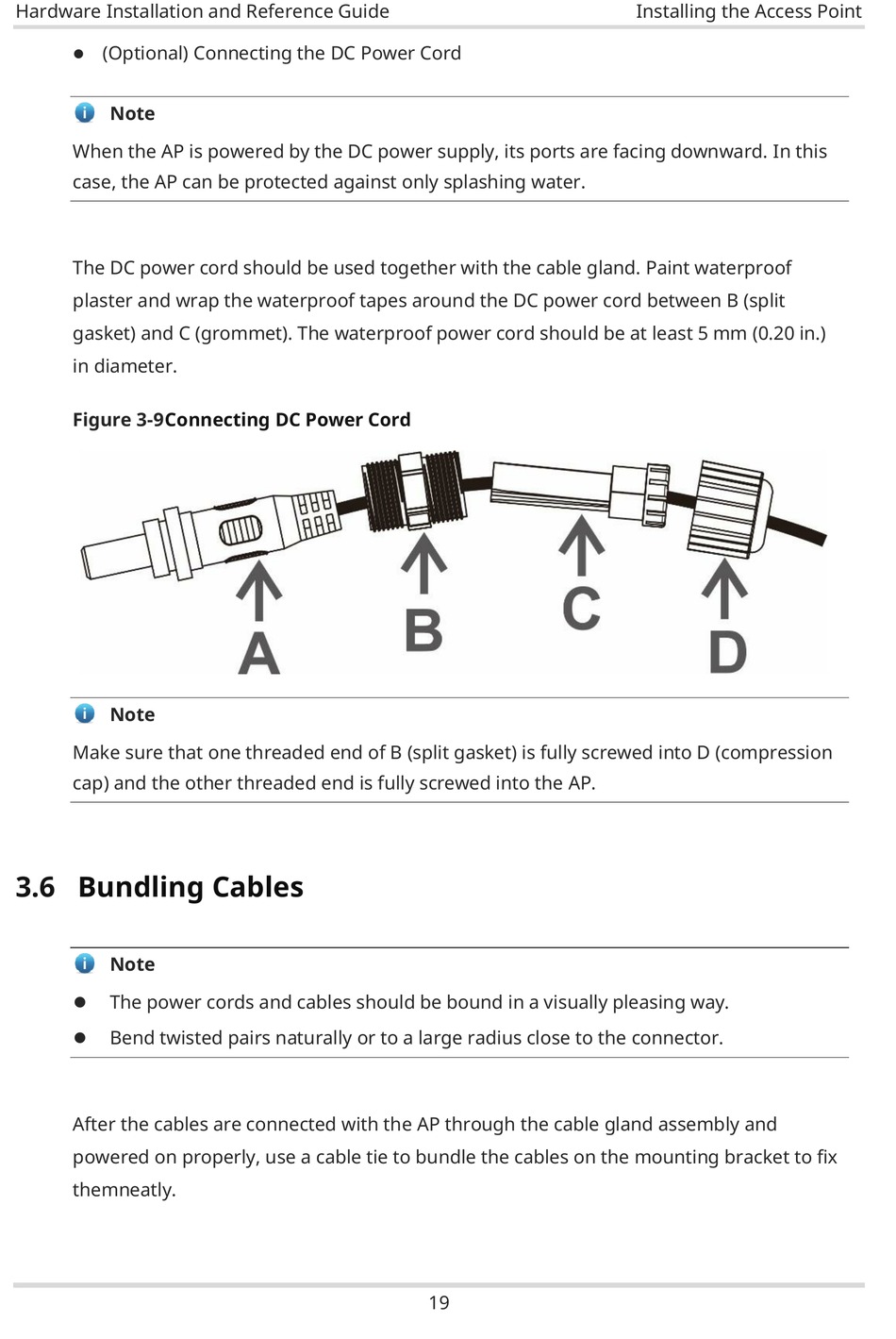

Figure 3-9
Connecting DC Power Cord
Note
Make sure that one threaded end of B (split gasket) is fully screwed into D (compression
cap) and the other threaded end is fully screwed into the AP.
3.6
Bundling Cables
Note
The power cords and cables should be bound in a visually pleasing way.
Bend twisted pairs naturally or to a large radius close to the connector.
After the cables are connected with the AP through the cable gland assembly and
powered on properly, use a cable tie to bundle the cables on the mounting bracket to fix
themneatly.
19
Installing the Access Point
