Hardware Installation and Reference Guide

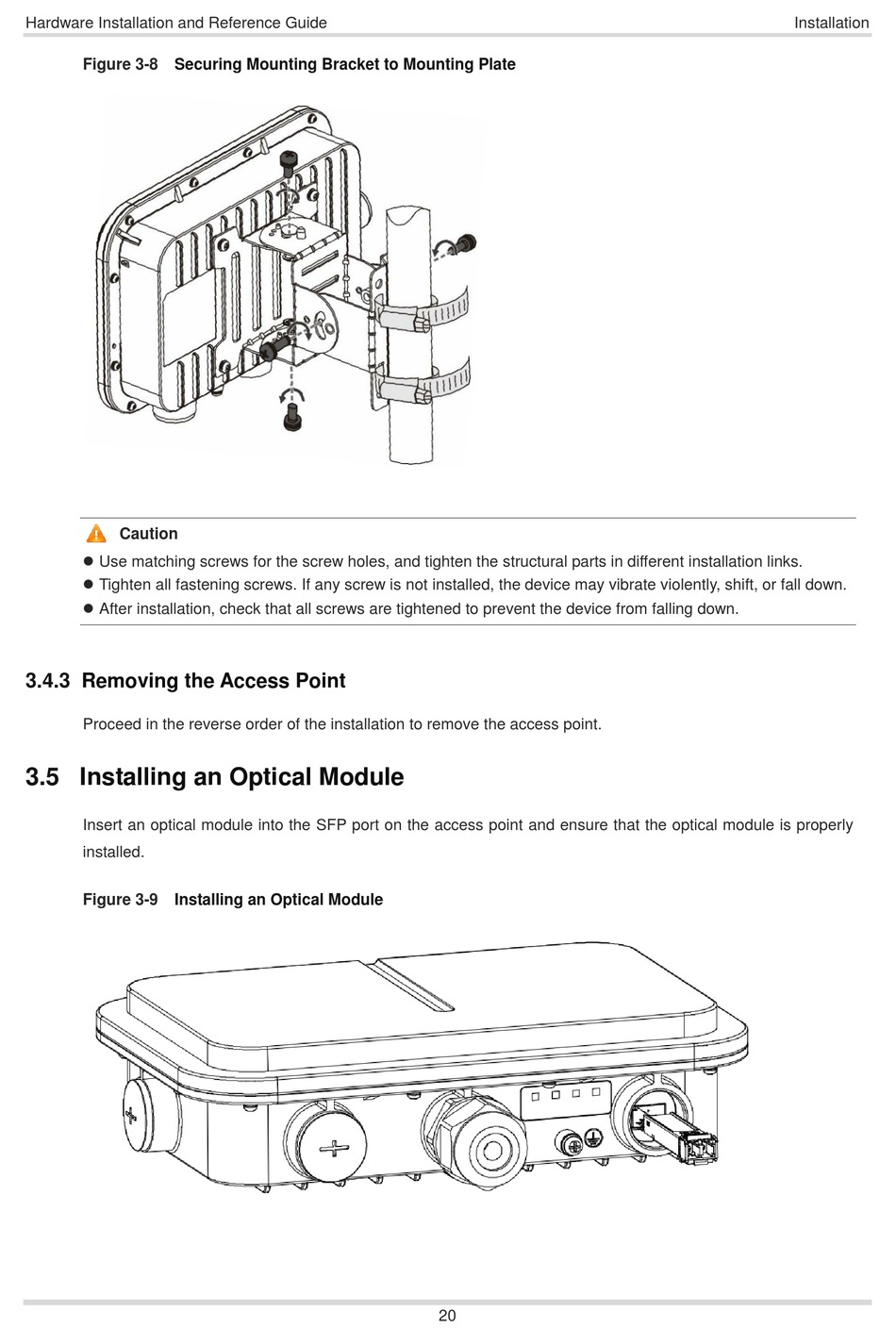

Figure 3-8 Securing Mounting Bracket to Mounting Plate
Caution
 Use matching screws for the screw holes, and tighten the structural parts in different installation links.
 Tighten all fastening screws. If any screw is not installed, the device may vibrate violently, shift, or fall down.
 After installation, check that all screws are tightened to prevent the device from falling down.
3.4.3

Removing the Access Point

Proceed in the reverse order of the installation to remove the access point.
3.5

Installing an Optical Module

Insert an optical module into the SFP port on the access point and ensure that the optical module is properly
installed.
Figure 3-9 Installing an Optical Module
20
Installation
