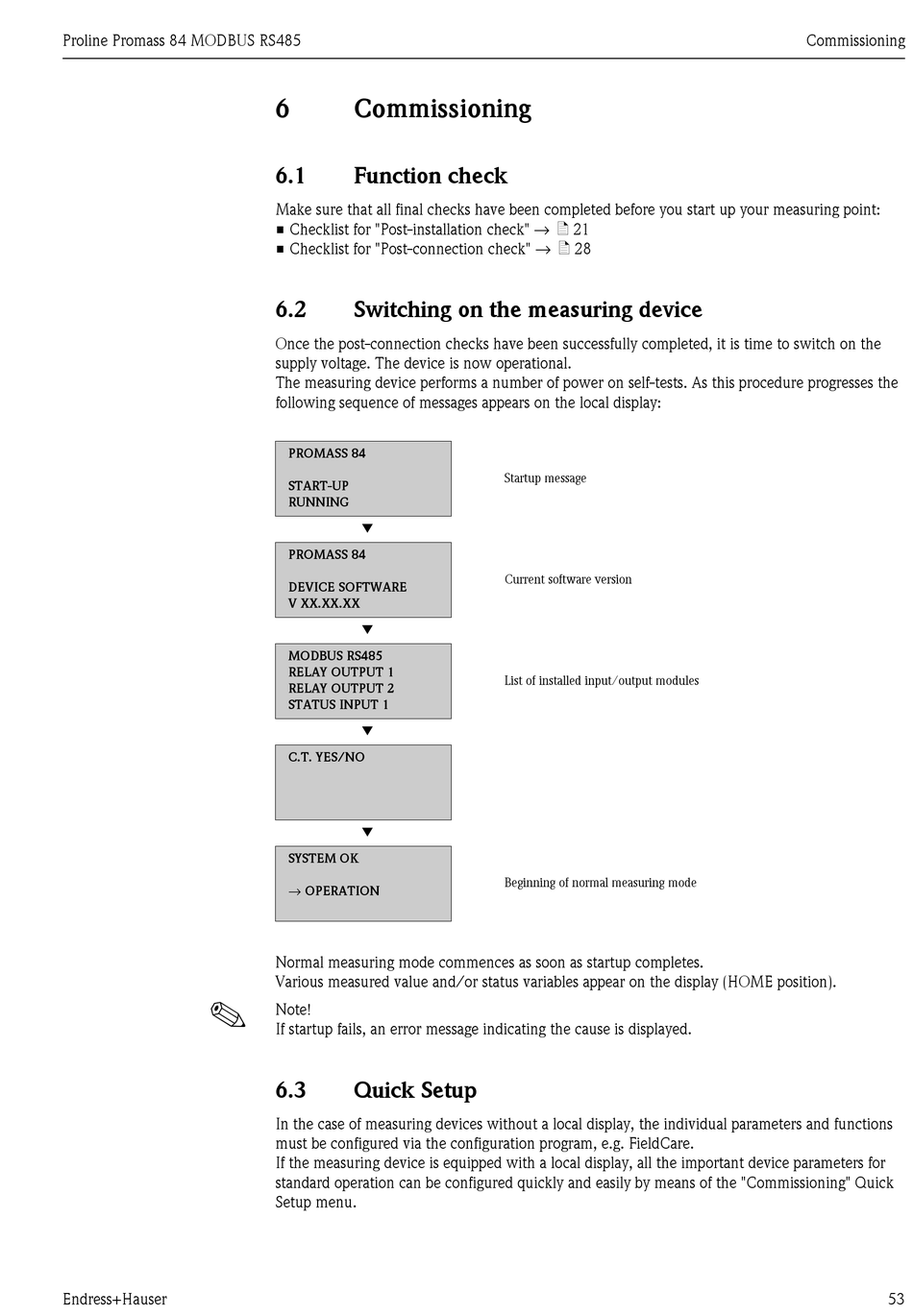

6

Commissioning

6.1

Function check

Make sure that all final checks have been completed before you start up your measuring point:
• Checklist for "Post-installation check" → ä 21
• Checklist for "Post-connection check" → ä 28
6.2

Switching on the measuring device

Once the post-connection checks have been successfully completed, it is time to switch on the
supply voltage. The device is now operational.
The measuring device performs a number of power on self-tests. As this procedure progresses the
following sequence of messages appears on the local display:
PROMASS 84
START-UP
RUNNING
▼
PROMASS 84
DEVICE SOFTWARE
V XX.XX.XX
▼
MODBUS RS485
RELAY OUTPUT 1
RELAY OUTPUT 2
STATUS INPUT 1
▼
C.T. YES/NO
▼
SYSTEM OK
→ OPERATION
Normal measuring mode commences as soon as startup completes.
Various measured value and/or status variables appear on the display (HOME position).
Note!
If startup fails, an error message indicating the cause is displayed.
6.3

Quick Setup

In the case of measuring devices without a local display, the individual parameters and functions
must be configured via the configuration program, e.g. FieldCare.
If the measuring device is equipped with a local display, all the important device parameters for
standard operation can be configured quickly and easily by means of the "Commissioning" Quick
Setup menu.
Startup message
Current software version
List of installed input/output modules
Beginning of normal measuring mode
Commissioning
