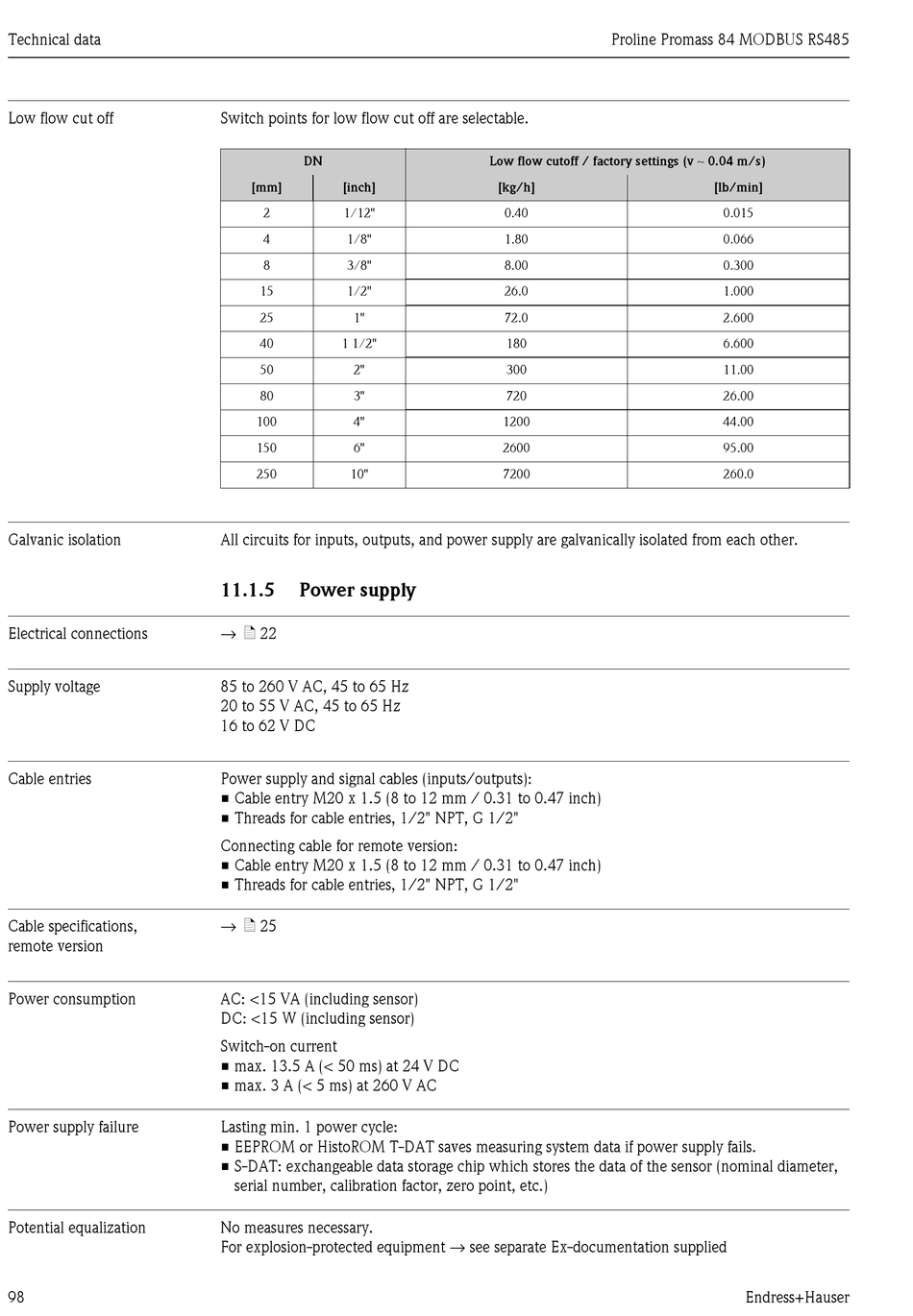

Power Supply - Endress+Hauser Proline Promass 84 MODBUS RS485 Operating Instructions Manual

Technical data
Low flow cut off
Galvanic isolation
Electrical connections
Supply voltage
Cable entries
Cable specifications,
remote version
Power consumption
Power supply failure
Potential equalization
98
Switch points for low flow cut off are selectable.
DN
[mm] [inch]
2 1/12"
4 1/8"
8 3/8"
15 1/2"
25 1"
40 1 1/2"
50 2"
80 3"
100 4"
150 6"
250 10"
All circuits for inputs, outputs, and power supply are galvanically isolated from each other.
11.1.5

Power supply

→ ä 22
85 to 260 V AC, 45 to 65 Hz
20 to 55 V AC, 45 to 65 Hz
16 to 62 V DC
Power supply and signal cables (inputs/outputs):
• Cable entry M20 x 1.5 (8 to 12 mm / 0.31 to 0.47 inch)
• Threads for cable entries, 1/2" NPT, G 1/2"
Connecting cable for remote version:
• Cable entry M20 x 1.5 (8 to 12 mm / 0.31 to 0.47 inch)
• Threads for cable entries, 1/2" NPT, G 1/2"
→ ä 25
AC: <15 VA (including sensor)
DC: <15 W (including sensor)
Switch-on current
• max. 13.5 A (< 50 ms) at 24 V DC
• max. 3 A (< 5 ms) at 260 V AC
Lasting min. 1 power cycle:
• EEPROM or HistoROM T-DAT saves measuring system data if power supply fails.
• S-DAT: exchangeable data storage chip which stores the data of the sensor (nominal diameter,
serial number, calibration factor, zero point, etc.)
No measures necessary.
For explosion-protected equipment → see separate Ex-documentation supplied
Proline Promass 84 MODBUS RS485
Low flow cutoff / factory settings (v ∼ 0.04 m/s)
[kg/h]
0.40
1.80
8.00
26.0
72.0
180
300
720
1200
2600
7200
[lb/min]
0.015
0.066
0.300
1.000
2.600
6.600
11.00
26.00
44.00
95.00
260.0
