Technical data
!
Operable flow range
Input signal
96

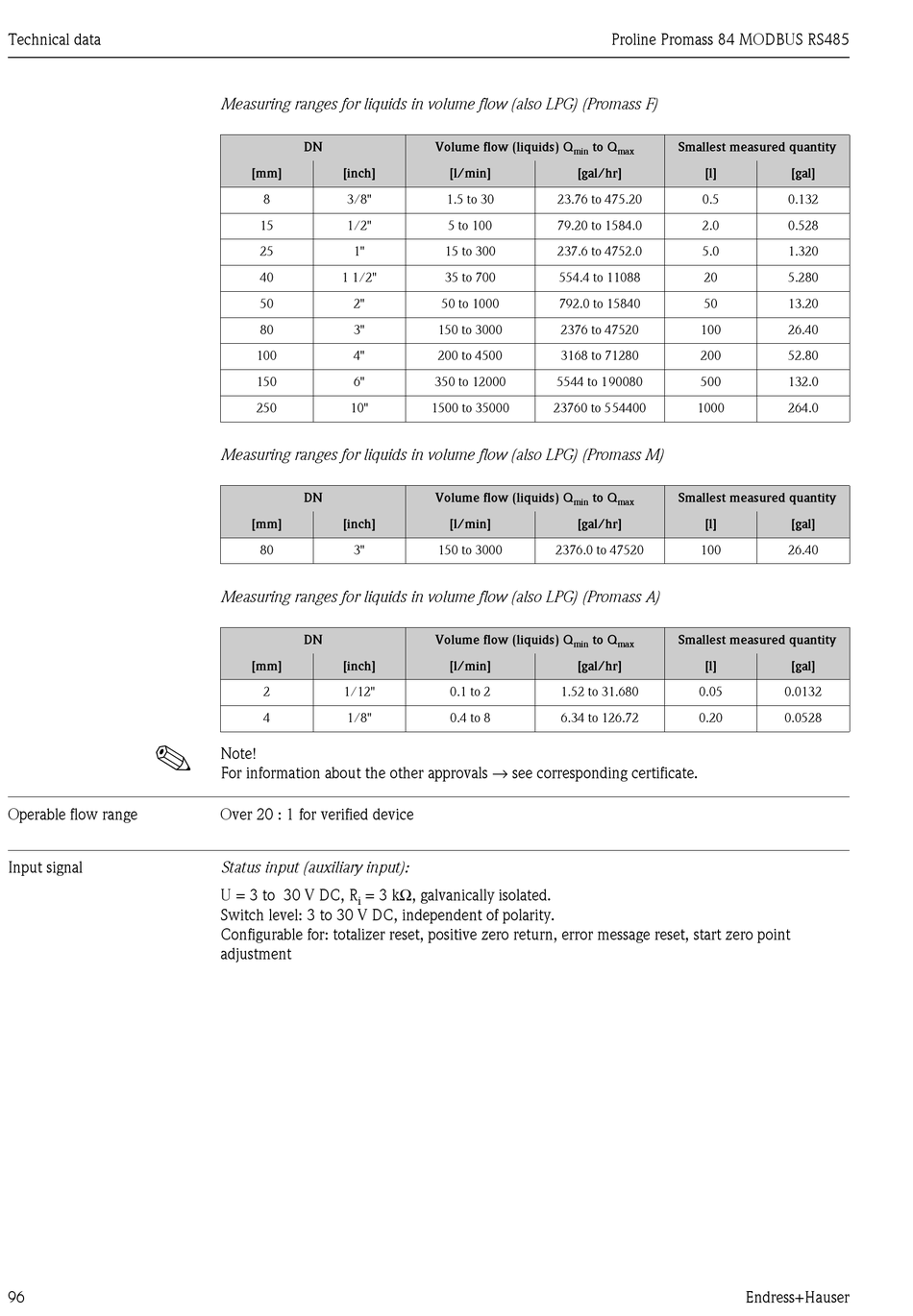

Measuring ranges for liquids in volume flow (also LPG) (Promass F)
DN
[mm]
[inch]
8
3/8"
15
1/2"
25
1"
40
1 1/2"
50
2"
80
3"
100
4"
150
6"
250
10"
Measuring ranges for liquids in volume flow (also LPG) (Promass M)
DN
[mm]
[inch]
80
3"
Measuring ranges for liquids in volume flow (also LPG) (Promass A)
DN
[mm]
[inch]
2
1/12"
4
1/8"
Note!
For information about the other approvals → see corresponding certificate.
Over 20 : 1 for verified device
Status input (auxiliary input):
U = 3 to 30 V DC, R
= 3 kΩ, galvanically isolated.
i
Switch level: 3 to 30 V DC, independent of polarity.
Configurable for: totalizer reset, positive zero return, error message reset, start zero point
adjustment
Volume flow (liquids) Q
to Q
min
[l/min]
[gal/hr]
1.5 to 30
23.76 to 475.20
5 to 100
79.20 to 1584.0
15 to 300
237.6 to 4752.0
35 to 700
554.4 to 11088
50 to 1000
792.0 to 15840
150 to 3000
2376 to 47520
200 to 4500
3168 to 71280
350 to 12000
5544 to 190080
1500 to 35000
23760 to 554400
Volume flow (liquids) Q
to Q
min
[l/min]
[gal/hr]
150 to 3000
2376.0 to 47520
Volume flow (liquids) Q
to Q
min
[l/min]
[gal/hr]
0.1 to 2
1.52 to 31.680
0.4 to 8
6.34 to 126.72
Proline Promass 84 MODBUS RS485
Smallest measured quantity
max
[l]
0.5
2.0
5.0
20
50
100
200
500
1000
Smallest measured quantity
max
[l]
100
Smallest measured quantity
max
[l]
0.05
0.20
Endress+Hauser
[gal]
0.132
0.528
1.320
5.280
13.20
26.40
52.80
132.0
264.0
[gal]
26.40
[gal]
0.0132
0.0528
