Operation
32

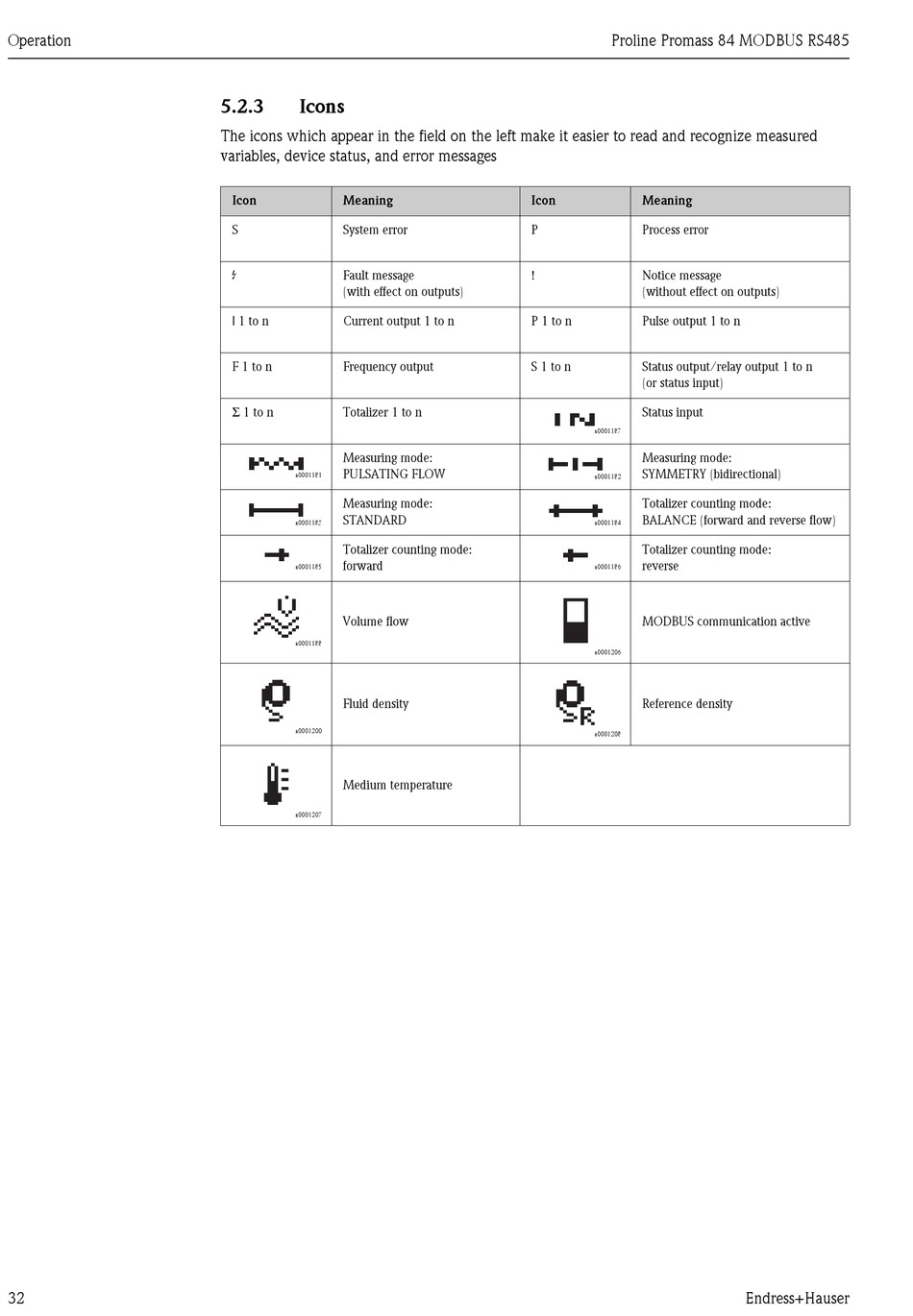

5.2.3

Icons

The icons which appear in the field on the left make it easier to read and recognize measured
variables, device status, and error messages
Icon Meaning
S System error
$
Fault message
(with effect on outputs)
| 1 to n Current output 1 to n
F 1 to n Frequency output
Σ 1 to n
Totalizer 1 to n
Measuring mode:
PULSATING FLOW
a0001181
Measuring mode:
STANDARD
a0001183
Totalizer counting mode:
forward
a0001185
Volume flow
a0001188
Fluid density
a0001200
Medium temperature
a0001207
Proline Promass 84 MODBUS RS485
Icon Meaning
P Process error
! Notice message
(without effect on outputs)
P 1 to n Pulse output 1 to n
S 1 to n Status output/relay output 1 to n
(or status input)
Status input
a0001187
Measuring mode:
SYMMETRY (bidirectional)
a0001182
Totalizer counting mode:
BALANCE (forward and reverse flow)
a0001184
Totalizer counting mode:
reverse
a0001186
MODBUS communication active
a0001206
Reference density
a0001208
