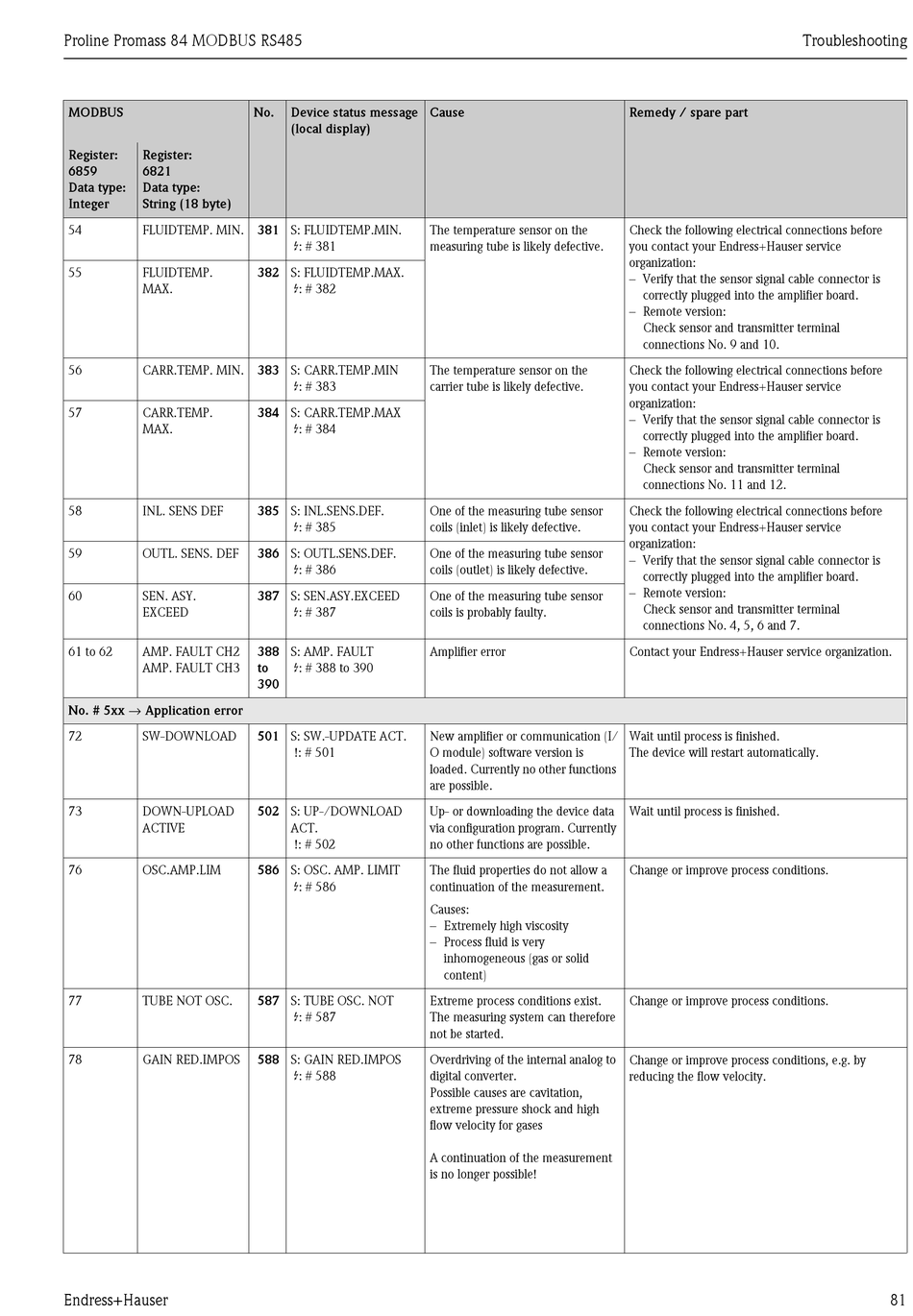

Endress+Hauser Proline Promass 84 MODBUS RS485 Operating Instructions Manual page 81

Proline Promass 84 MODBUS RS485
MODBUS
Register: Register:
6859 6821
Data type: Data type:
Integer String (18 byte)
54 FLUIDTEMP. MIN. 381 S: FLUIDTEMP.MIN.
55 FLUIDTEMP.
MAX.
56 CARR.TEMP. MIN. 383 S: CARR.TEMP.MIN
57 CARR.TEMP.
MAX.
58 INL. SENS DEF
59 OUTL. SENS. DEF
60 SEN. ASY.
EXCEED
61 to 62 AMP. FAULT CH2
AMP. FAULT CH3
No. # 5xx → Application error
72 SW-DOWNLOAD
73 DOWN-UPLOAD
ACTIVE
76 OSC.AMP.LIM
77 TUBE NOT OSC.
78 GAIN RED.IMPOS
Endress+Hauser
No. Device status message
(local display)
$: # 381
382 S: FLUIDTEMP.MAX.
$: # 382
$: # 383
384 S: CARR.TEMP.MAX
$: # 384
385 S: INL.SENS.DEF.
$: # 385
386 S: OUTL.SENS.DEF.
$: # 386
387 S: SEN.ASY.EXCEED
$: # 387
388 S: AMP. FAULT
$: # 388 to 390
to
390
501 S: SW.-UPDATE ACT.
!: # 501
502 S: UP-/DOWNLOAD
ACT.
!: # 502
586 S: OSC. AMP. LIMIT
$: # 586
587 S: TUBE OSC. NOT
$: # 587
588 S: GAIN RED.IMPOS
$: # 588
Cause
The temperature sensor on the
measuring tube is likely defective.
The temperature sensor on the
carrier tube is likely defective.
One of the measuring tube sensor
coils (inlet) is likely defective.
One of the measuring tube sensor
coils (outlet) is likely defective.
One of the measuring tube sensor
coils is probably faulty.
Amplifier error
New amplifier or communication (I/
O module) software version is
loaded. Currently no other functions
are possible.
Up- or downloading the device data
via configuration program. Currently
no other functions are possible.
The fluid properties do not allow a
continuation of the measurement.
Causes:
– Extremely high viscosity
– Process fluid is very
inhomogeneous (gas or solid
content)
Extreme process conditions exist.
The measuring system can therefore
not be started.
Overdriving of the internal analog to
digital converter.
Possible causes are cavitation,
extreme pressure shock and high
flow velocity for gases
A continuation of the measurement
is no longer possible!
Remedy / spare part
Check the following electrical connections before
you contact your Endress+Hauser service
organization:
– Verify that the sensor signal cable connector is
correctly plugged into the amplifier board.
– Remote version:
Check sensor and transmitter terminal
connections No. 9 and 10.
Check the following electrical connections before
you contact your Endress+Hauser service
organization:
– Verify that the sensor signal cable connector is
correctly plugged into the amplifier board.
– Remote version:
Check sensor and transmitter terminal
connections No. 11 and 12.
Check the following electrical connections before
you contact your Endress+Hauser service
organization:
– Verify that the sensor signal cable connector is
correctly plugged into the amplifier board.
– Remote version:
Check sensor and transmitter terminal
connections No. 4, 5, 6 and 7.
Contact your Endress+Hauser service organization.
Wait until process is finished.
The device will restart automatically.
Wait until process is finished.
Change or improve process conditions.
Change or improve process conditions.
Change or improve process conditions, e.g. by
reducing the flow velocity.
Troubleshooting
