Installation
#
18
3.3

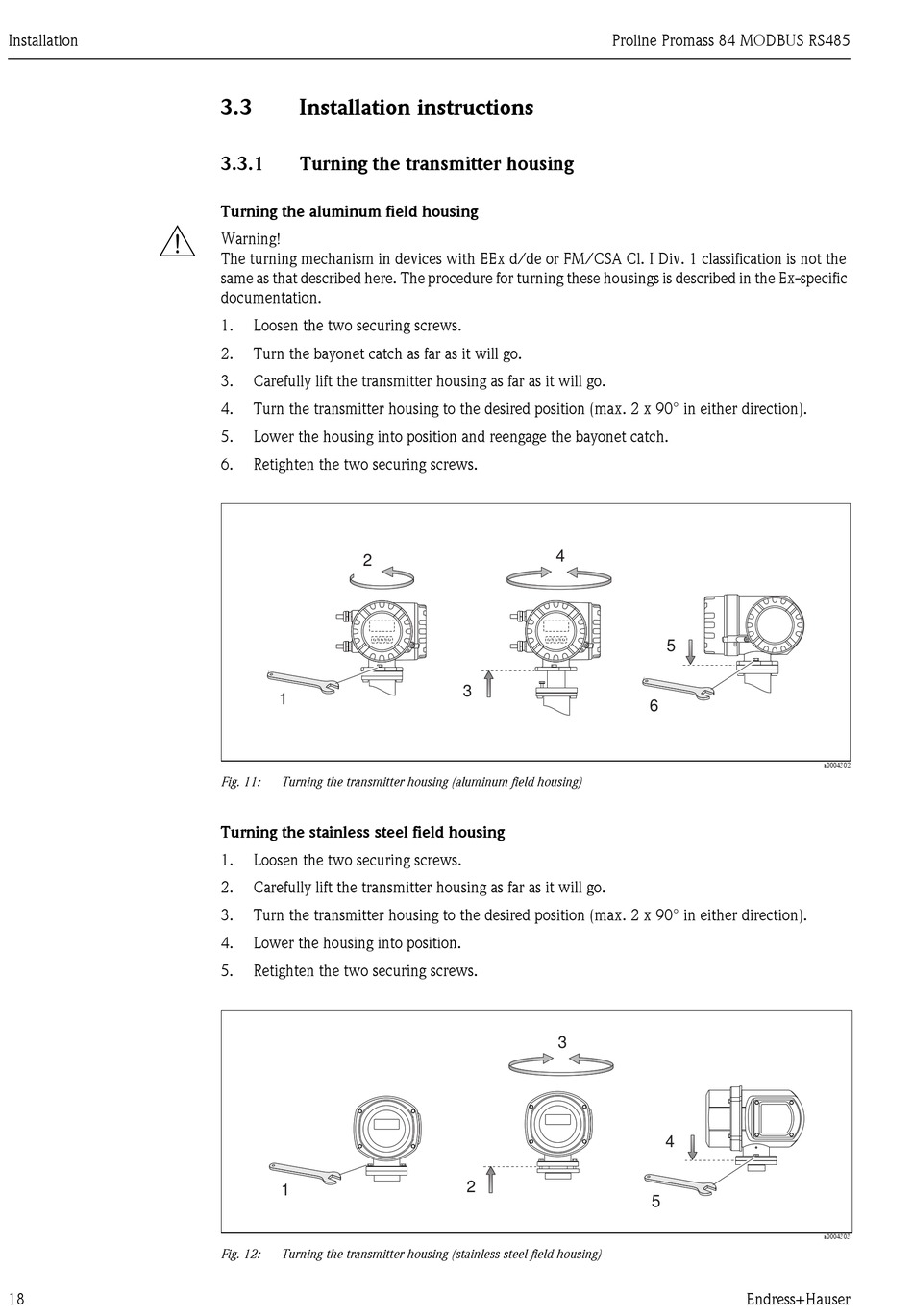

Installation instructions
3.3.1
Turning the transmitter housing
Turning the aluminum field housing
Warning!
The turning mechanism in devices with EEx d/de or FM/CSA Cl. I Div. 1 classification is not the
same as that described here. The procedure for turning these housings is described in the Ex-specific
documentation.
1.
Loosen the two securing screws.
2.
Turn the bayonet catch as far as it will go.
3.
Carefully lift the transmitter housing as far as it will go.
4.
Turn the transmitter housing to the desired position (max. 2 x 90° in either direction).
5.
Lower the housing into position and reengage the bayonet catch.
6.
Retighten the two securing screws.
2
1
Fig. 11:
Turning the transmitter housing (aluminum field housing)
Turning the stainless steel field housing
1.
Loosen the two securing screws.
2.
Carefully lift the transmitter housing as far as it will go.
3.
Turn the transmitter housing to the desired position (max. 2 x 90° in either direction).
4.
Lower the housing into position.
5.
Retighten the two securing screws.
1
Fig. 12:
Turning the transmitter housing (stainless steel field housing)
Proline Promass 84 MODBUS RS485
4
3
3
2
5
6
4
5
Endress+Hauser
a0004302
a0004303
