2.1.4

Nameplate for connections

See operating manual
Betriebsanleitung beachten
Observer manuel d'instruction
XXXXXXXXXXX
1
Ser.No.:
Supply /
Versorgung /
4
Tension d'alimentation
26 = B (RxD/TxD-P)
27 = A (RxD/TxD-N)
3...30VDC, Ri = 3 kOhm
5
max. 60VDC/0.1A
max. 30VAC/0.5A
max. 60VDC/0.1A
max. 30VAC/0.5A
Ex works / ab Werk / réglages usine
6 Device SW:
7
Communication:
8
Drivers:
9 Date: 01. MAI 2009

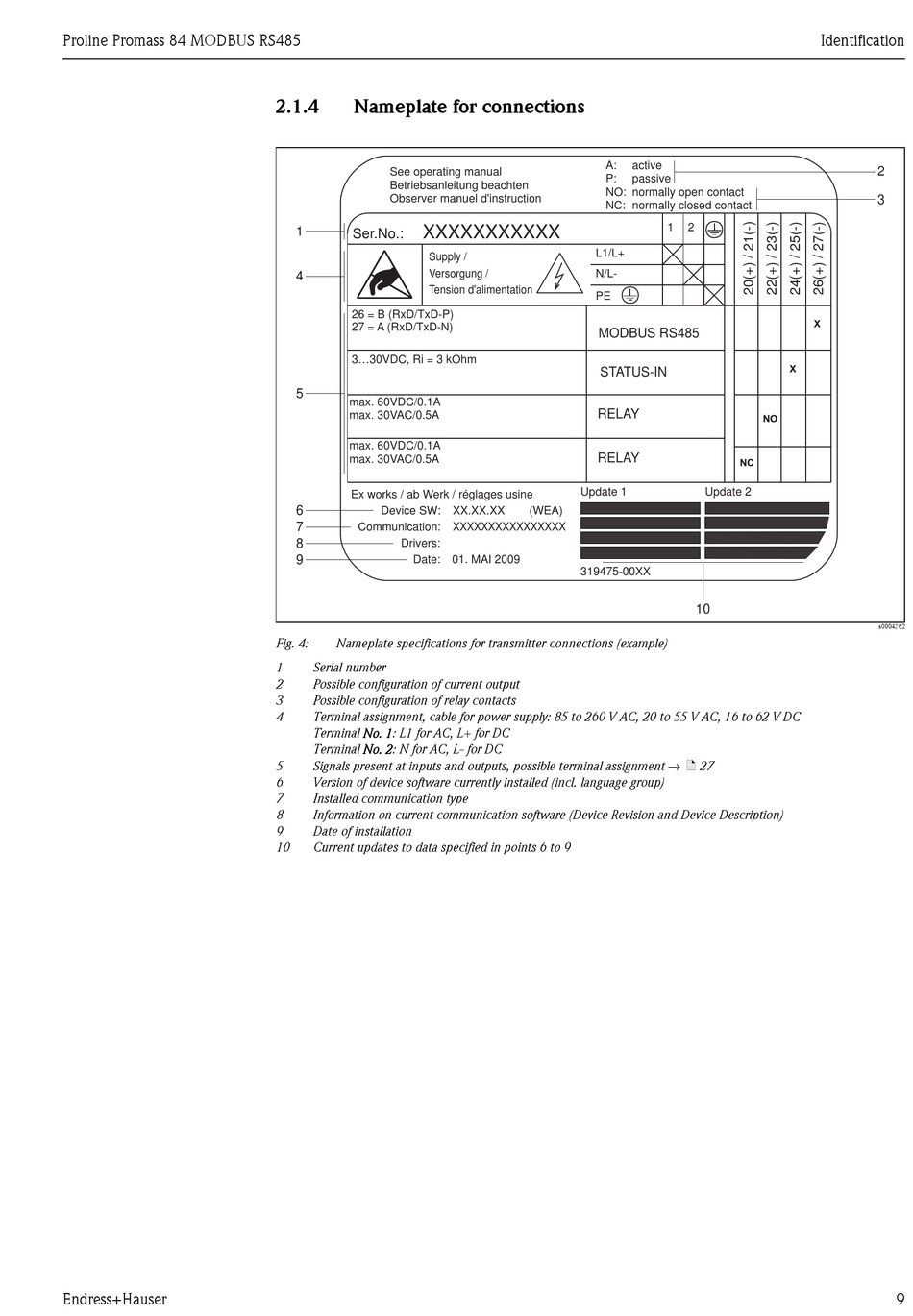

Fig. 4: Nameplate specifications for transmitter connections (example)
1 Serial number
2 Possible configuration of current output
3 Possible configuration of relay contacts
4 Terminal assignment, cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC
Terminal No. 1: L1 for AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
Signals present at inputs and outputs, possible terminal assignment → ä 27
5
6 Version of device software currently installed (incl. language group)
7 Installed communication type
8 Information on current communication software (Device Revision and Device Description)
9 Date of installation
10 Current updates to data specified in points 6 to 9
A:
P:
NO:
NC:
L1/L+
N/L-
PE
MODBUS RS485
STATUS-IN
RELAY
RELAY
Update 1
XX.XX.XX (WEA)
XXXXXXXXXXXXXXXX
319475-00XX
active
passive
normally open contact
normally closed contact
1 2
X
NO
NC
Update 2
10
Identification
2
3
X
a0004362
9
