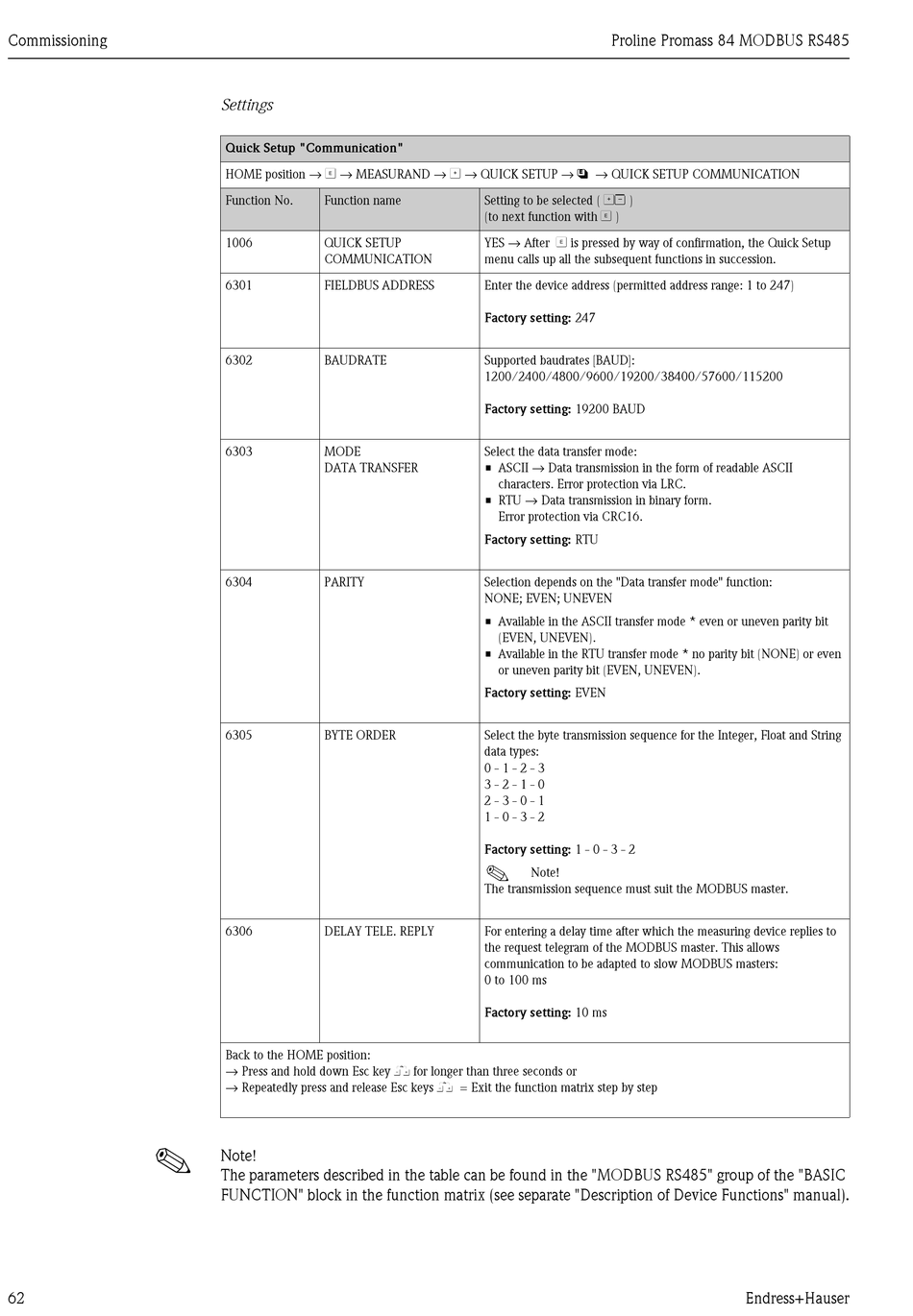

Endress+Hauser Proline Promass 84 MODBUS RS485 Operating Instructions Manual page 62

Commissioning
!
62
Settings
Quick Setup "Communication"
HOME position → F → MEASURAND → O → QUICK SETUP → N → QUICK SETUP COMMUNICATION
Function No. Function name
1006 QUICK SETUP
COMMUNICATION
6301 FIELDBUS ADDRESS
6302 BAUDRATE
6303 MODE
DATA TRANSFER
6304 PARITY
6305 BYTE ORDER
6306 DELAY TELE. REPLY
Back to the HOME position:
→ Press and hold down Esc key X for longer than three seconds or
→ Repeatedly press and release Esc keys X = Exit the function matrix step by step
Note!
The parameters described in the table can be found in the "MODBUS RS485" group of the "BASIC
FUNCTION" block in the function matrix (see separate "Description of Device Functions" manual).
Proline Promass 84 MODBUS RS485
Setting to be selected ( OS )
(to next function with F )
YES → After F is pressed by way of confirmation, the Quick Setup
menu calls up all the subsequent functions in succession.
Enter the device address (permitted address range: 1 to 247)
Factory setting: 247
Supported baudrates [BAUD]:
1200/2400/4800/9600/19200/38400/57600/115200
Factory setting: 19200 BAUD
Select the data transfer mode:
• ASCII → Data transmission in the form of readable ASCII
characters. Error protection via LRC.
• RTU → Data transmission in binary form.
Error protection via CRC16.
Factory setting: RTU
Selection depends on the "Data transfer mode" function:
NONE; EVEN; UNEVEN
• Available in the ASCII transfer mode * even or uneven parity bit
(EVEN, UNEVEN).
• Available in the RTU transfer mode * no parity bit (NONE) or even
or uneven parity bit (EVEN, UNEVEN).
Factory setting: EVEN
Select the byte transmission sequence for the Integer, Float and String
data types:
0 - 1 - 2 - 3
3 - 2 - 1 - 0
2 - 3 - 0 - 1
1 - 0 - 3 - 2
Factory setting: 1 - 0 - 3 - 2
!
Note!
The transmission sequence must suit the MODBUS master.
For entering a delay time after which the measuring device replies to
the request telegram of the MODBUS master. This allows
communication to be adapted to slow MODBUS masters:
0 to 100 ms
Factory setting: 10 ms
