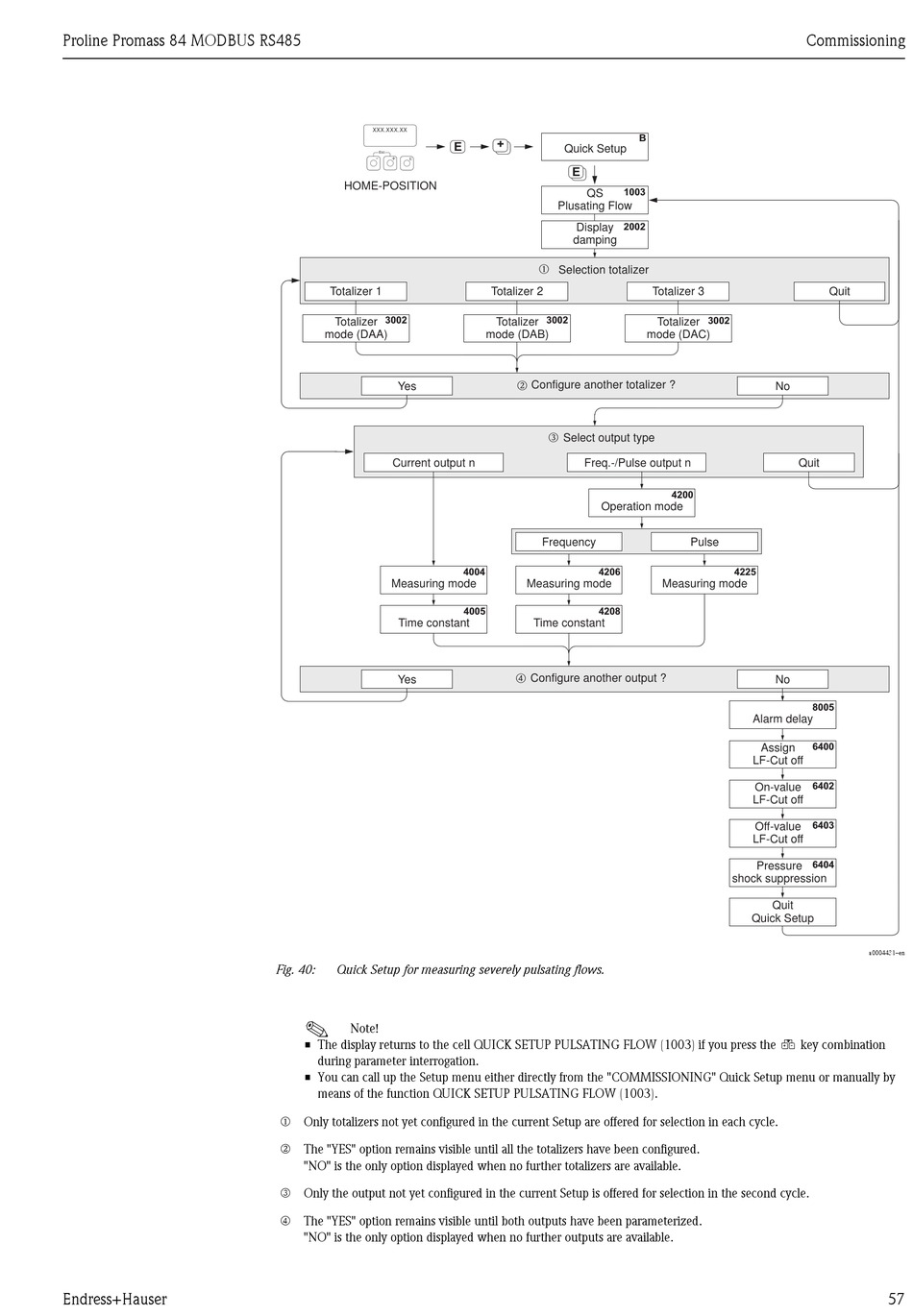

Fig. 40: Quick Setup for measuring severely pulsating flows.
!
Note!
• The display returns to the cell QUICK SETUP PULSATING FLOW (1003) if you press the Q key combination
during parameter interrogation.
• You can call up the Setup menu either directly from the "COMMISSIONING" Quick Setup menu or manually by
means of the function QUICK SETUP PULSATING FLOW (1003).
m Only totalizers not yet configured in the current Setup are offered for selection in each cycle.
n The "YES" option remains visible until all the totalizers have been configured.
"NO" is the only option displayed when no further totalizers are available.
o Only the output not yet configured in the current Setup is offered for selection in the second cycle.
p The "YES" option remains visible until both outputs have been parameterized.
"NO" is the only option displayed when no further outputs are available.
+ +
