Identification
8
2.1.2

Nameplate of the sensor

1
2
4
5
6
7
8
9
10
11
12

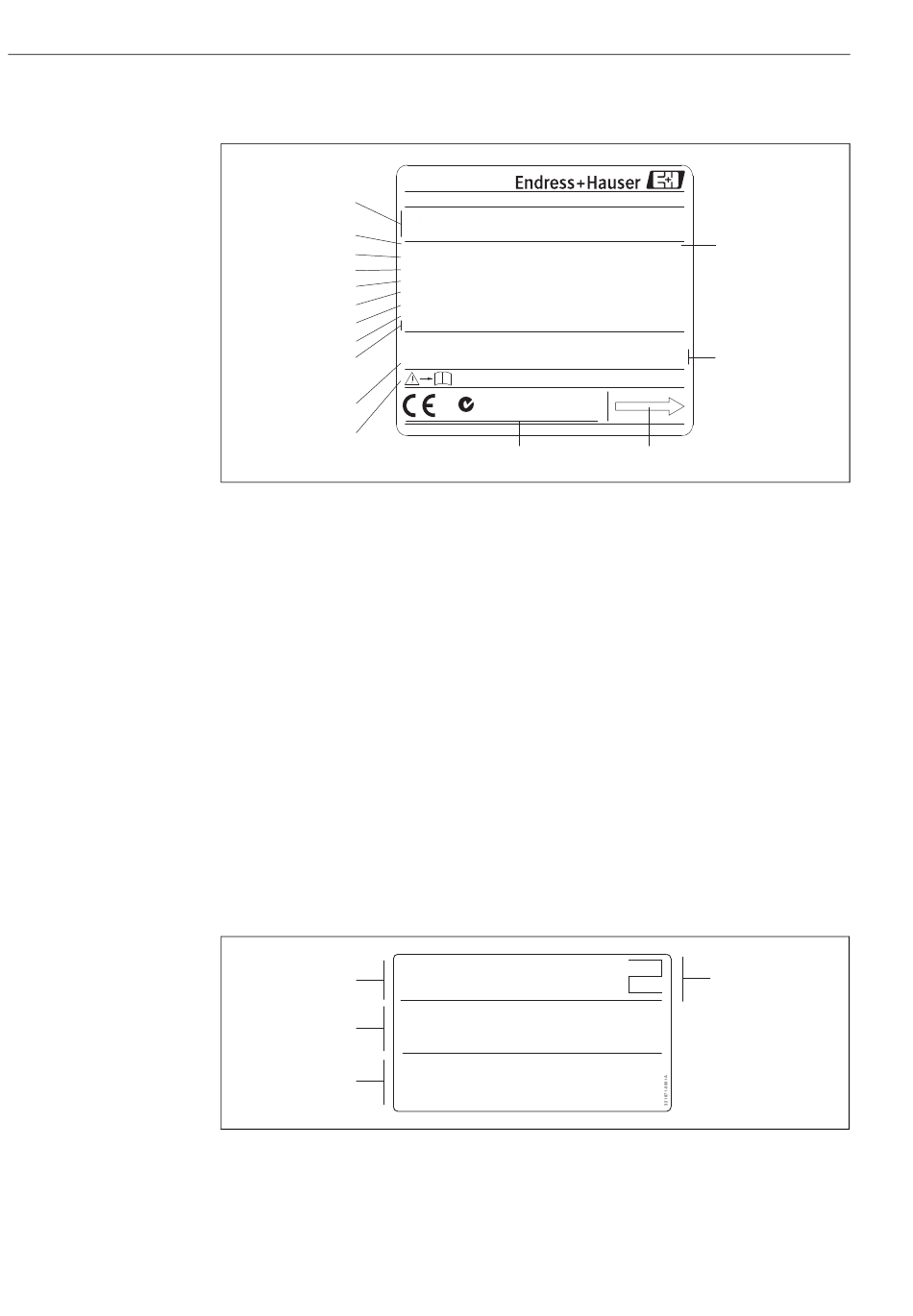

Fig. 2: Nameplate specifications for the "Promass F" sensor (example)
1 Order code/serial number: See the specifications on the order confirmation for the meanings of the individual
letters and digits
2 Calibration factor: 2.5100; zero point: -11
3 Nominal diameter device: DN 25 / 1"
4 Flange nominal diameter: DN 25 / 1"
Nominal pressure: EN (DIN) PN 100 bar
5 Material of measuring tubes: Stainless steel 1.4539/904L
6 TMmax +200 °C / +392 °F (max. fluid temperature)
7 Pressure range of secondary containment: max. 40 bar (600 psi)
8 Accuracy of density measurement: ± 0.001 g/cc
9 Additional information (examples):
– With 5-point calibration
– With 3.1 certificate for wetted materials
10 Reserved for information on special products
11 Ambient temperature range
12 Please refer to operating instructions / documentation
13 Degree of protection
14 Flow direction
15 Reserved for additional information on device version (approvals, certificates)
2.1.3 Additional nameplate for suitability for custody transfer
measurement
1
2
3
Fig. 3: Nameplate specifications for the suitability of "Promass 84" for custody transfer measurement (example)
1 Ambient classes
2 Smallest measured quantity for liquids
3 Smallest measured quantity for gases
4 Symbol for custody transfer consisting of the number and issue date
PROMASS F
83F25-XXXXXXXXXXXX
Order Code:
12345678901
Ser.No.:
ABCDEFGHJKLMNPQRST
TAG No.:
2.5100 / -11
K-factor:
DN25 DIN/EN PN100 pnom =PS= 100bar
1.4404 / 316L, 1.4539 / 904L
Materials:
-50°C...+200°C / -58°F...+392°F
TM:
40bar / 600psi Container
+/- 0.001g/cc
Density cal.:
5P-CAL, 3.1
-20°C (-4°F) < Tamb < +60°C (+140°F)
i
N12895
Pat. US 5,796,011 5,610,342
15
Promass 84M DN25
Umgebungsklasse:
B,C,I
Environment class:
Für Flüssigkeiten / For Liquids:
Kleineste Messmenge:
5.0kg
Minimum Measured Quantity:
15kg/min 300kg/min
Qmin: Qmax:
Für Druckgase / For Pressured Gases (P>100bar):
Kleineste Messmenge:
Minimum Measured Quantity: 2.0kg
1.0kg/min 100kg/min
Qmin: Qmax:
Proline Promass 84 MODBUS RS485
3
DN25 / 1"
Size:
IP67
13
NEMA/Type 4X
14
5.411
4
04.17
