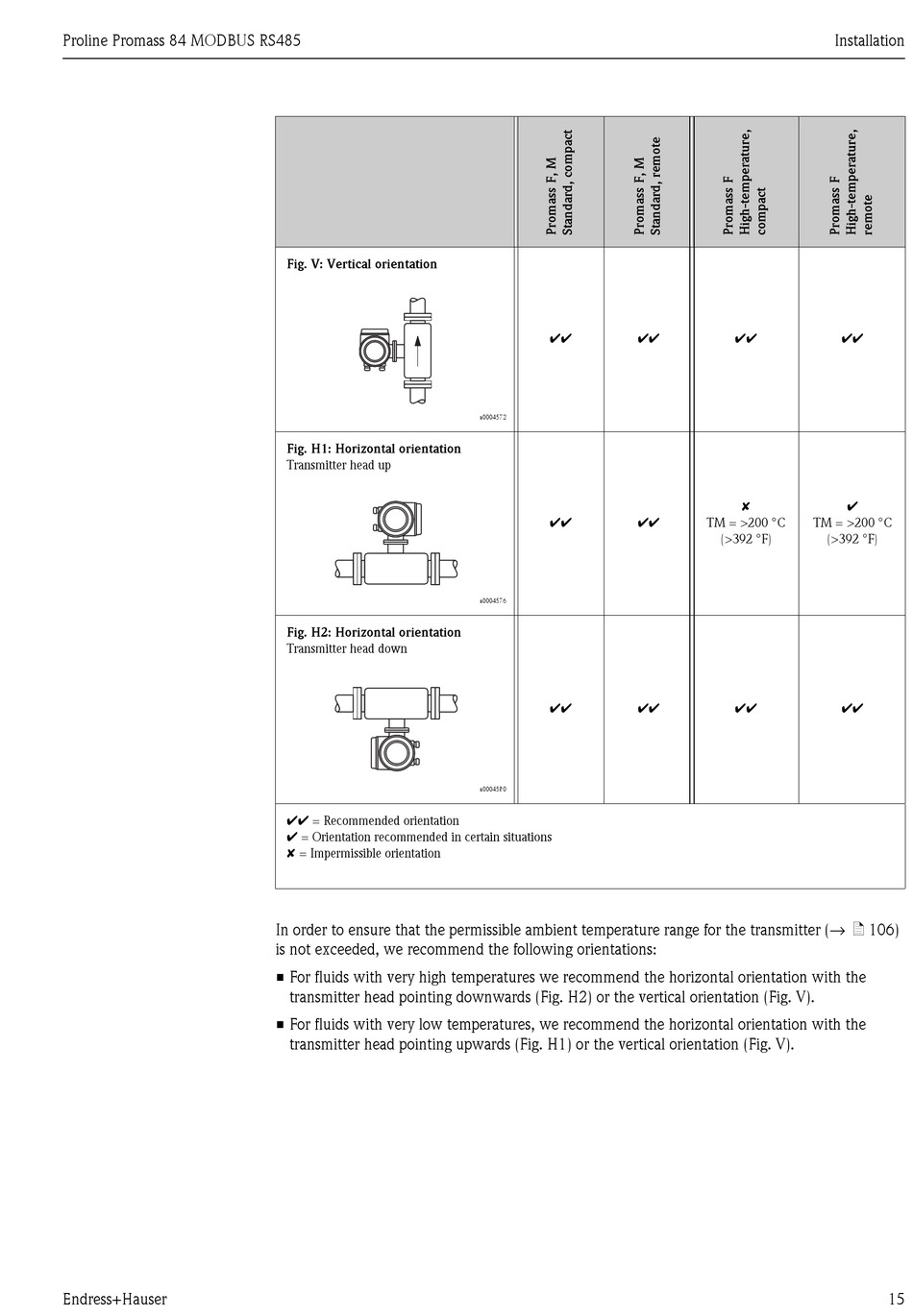

Fig. V: Vertical orientation
Fig. H1: Horizontal orientation
Transmitter head up
Fig. H2: Horizontal orientation
Transmitter head down
ÃÃ = Recommended orientation
à = Orientation recommended in certain situations
✘ = Impermissible orientation
In order to ensure that the permissible ambient temperature range for the transmitter (→ ä 106)
is not exceeded, we recommend the following orientations:
• For fluids with very high temperatures we recommend the horizontal orientation with the
transmitter head pointing downwards (Fig. H2) or the vertical orientation (Fig. V).
• For fluids with very low temperatures, we recommend the horizontal orientation with the
transmitter head pointing upwards (Fig. H1) or the vertical orientation (Fig. V).
ÃÃ ÃÃ
a0004572
ÃÃ ÃÃ
a0004576
ÃÃ ÃÃ
a0004580
Installation
ÃÃ ÃÃ
✘
Ã
TM = >200 °C TM = >200 °C
(>392 °F) (>392 °F)
