Commissioning
58

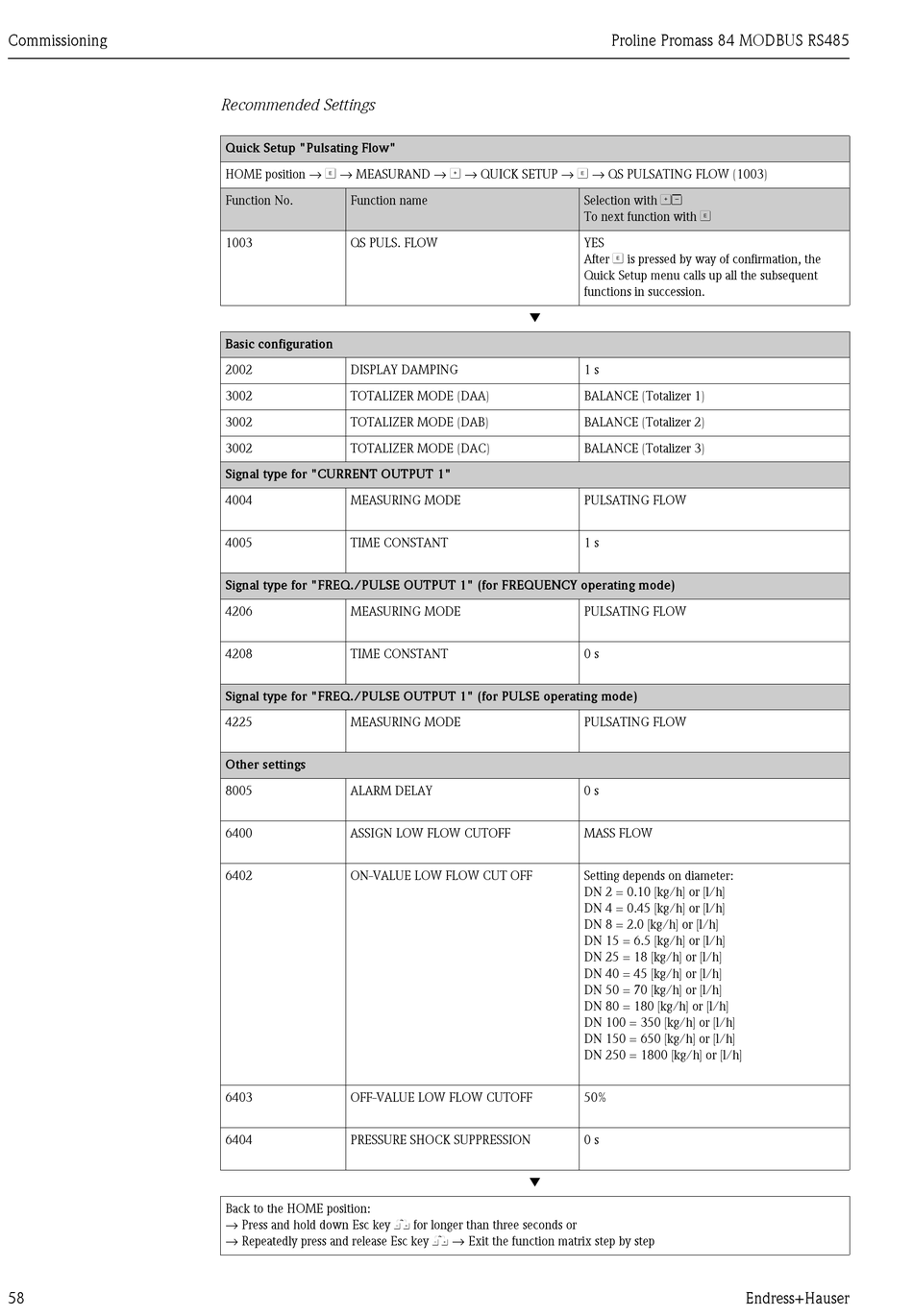

Recommended Settings
Quick Setup "Pulsating Flow"
HOME position → F → MEASURAND → O → QUICK SETUP → F → QS PULSATING FLOW (1003)
Function No. Function name
1003 QS PULS. FLOW
Basic configuration
2002 DISPLAY DAMPING
3002 TOTALIZER MODE (DAA)
3002 TOTALIZER MODE (DAB)
3002 TOTALIZER MODE (DAC)
Signal type for "CURRENT OUTPUT 1"
4004 MEASURING MODE
4005 TIME CONSTANT
Signal type for "FREQ./PULSE OUTPUT 1" (for FREQUENCY operating mode)
4206 MEASURING MODE
4208 TIME CONSTANT
Signal type for "FREQ./PULSE OUTPUT 1" (for PULSE operating mode)
4225 MEASURING MODE
Other settings
8005 ALARM DELAY
6400 ASSIGN LOW FLOW CUTOFF
6402 ON-VALUE LOW FLOW CUT OFF
6403 OFF-VALUE LOW FLOW CUTOFF
6404 PRESSURE SHOCK SUPPRESSION
Back to the HOME position:
→ Press and hold down Esc key X for longer than three seconds or
→ Repeatedly press and release Esc key X → Exit the function matrix step by step
Proline Promass 84 MODBUS RS485
Selection with OS
To next function with F
YES
After F is pressed by way of confirmation, the
Quick Setup menu calls up all the subsequent
functions in succession.
Æ
1 s
BALANCE (Totalizer 1)
BALANCE (Totalizer 2)
BALANCE (Totalizer 3)
PULSATING FLOW
1 s
PULSATING FLOW
0 s
PULSATING FLOW
0 s
MASS FLOW
Setting depends on diameter:
DN 2 = 0.10 [kg/h] or [l/h]
DN 4 = 0.45 [kg/h] or [l/h]
DN 8 = 2.0 [kg/h] or [l/h]
DN 15 = 6.5 [kg/h] or [l/h]
DN 25 = 18 [kg/h] or [l/h]
DN 40 = 45 [kg/h] or [l/h]
DN 50 = 70 [kg/h] or [l/h]
DN 80 = 180 [kg/h] or [l/h]
DN 100 = 350 [kg/h] or [l/h]
DN 150 = 650 [kg/h] or [l/h]
DN 250 = 1800 [kg/h] or [l/h]
50%
0 s
Æ
