Mounting

NOTE: Extron recommends taking safety precautions to avoid electrostatic discharge

Mounting the HCT 103 and HCR 102

Turn off or disconnect all equipment power sources before mounting the transmitter and
receiver. The HCT 103 transmitter and HCR 102 receiver each ship with furniture mounting
brackets attached. They can be easily mounted to a wall or furniture as shown in the
following diagram:

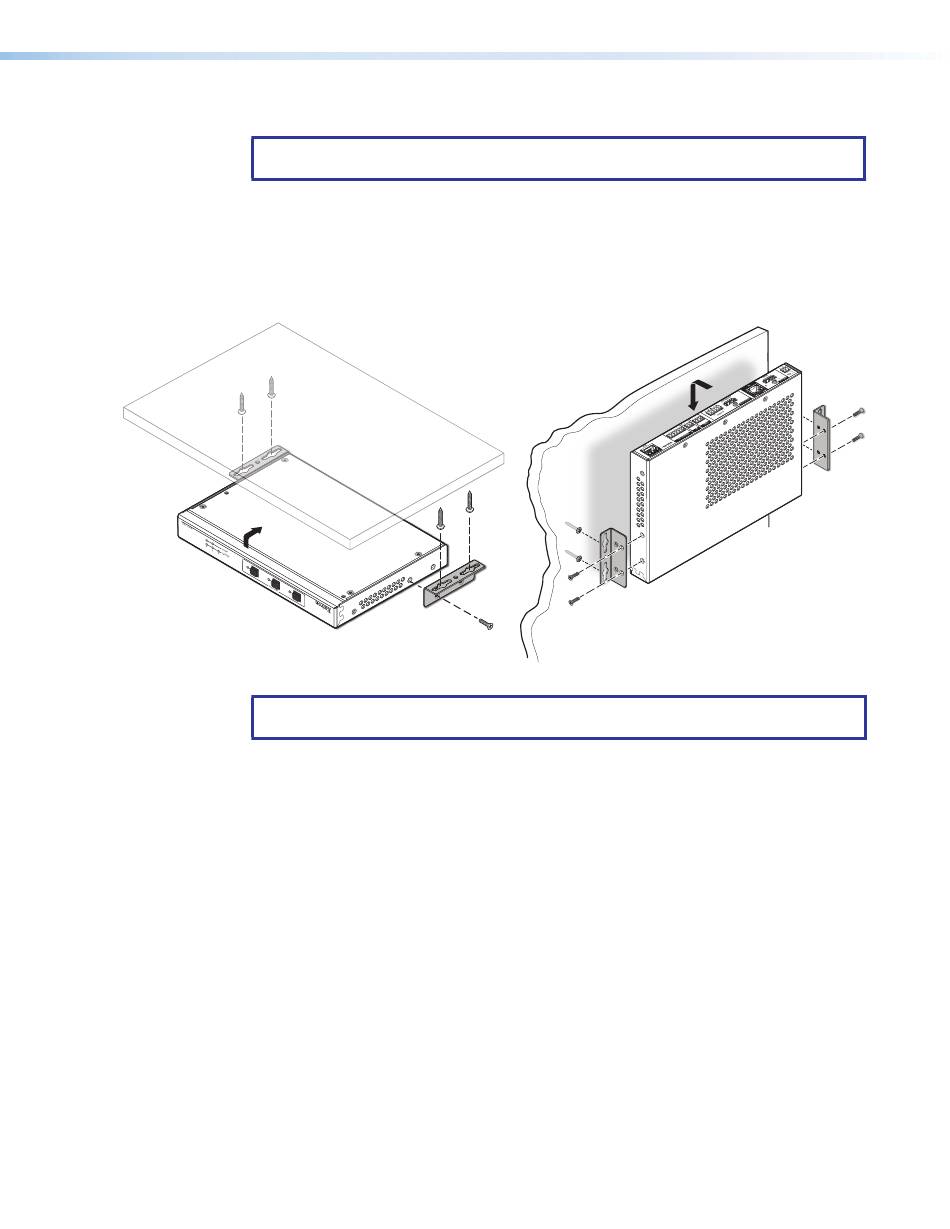

Figure 37.
NOTE: The receiver is designed so that its vents face away from the wall or furniture
Alternatively, you can remove the pre-installed furniture mounting brackets and mount these
devices to a rack or set them on furniture.
•
•
UL Rack Mounting Guidelines
The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the
HCT 103 and HCR 102 in a rack.
1.
issues during installation.
Mounting the HCT 103 Transmitter (Left) and the HCR 102 Receiver (Right)
when mounted in order to achieve optimal air circulation and cooling.
Rack mounting — The HC 404 and HC 403 product pages on
include links to recommended optional 1U high rack shelves or rack mounting kits. An
Extron support representative can recommend which kit to order for your installation.
See the installation guide for the mounting brackets or optional rack shelf for
•
mounting diagrams and instructions.
Observe local and UL safety guidelines for mounting devices to equipment racks.
•
Desktop use — Attach four rubber feet at the corners of each unit and place it on a
table or desk.
Elevated operating ambient temperature — If installed in a closed or multi-unit
rack assembly, the operating ambient temperature of the rack environment may be
greater than room ambient temperature. Therefore, install the units in an environment
compatible with the maximum ambient temperature (Tma = +104 °F, +40 °C) specified
by Extron.
www.extron.com
HC 400 Series • Reference Information 71
