To determine the value of the current limiting resistor in the circuit shown on the
previous page, you need to know the values of three variables:
i = LED forward current in amps (found in the data sheet for the LED)
= LED forward voltage drop in volts (found in the data sheet for the LED)
V
f
V = supply voltage of the external voltage source
s
Insert those values into the following equation to determine the resistor value:
V - V
s f
R =
i
Example calculation:
}
i = 5 mA (0.005 A)
V = 2 V
f
= 5 V
V
s
NOTE: If the value calculated for the current limiting resistor is not a
standard resistor value, you can round up the number to the next highest
common resistance value.
The connected LED is off when the port and switch 1 are open.
The connected LED is on when the port and switch 1 are closed.
Digital I/O digital output with pull-up enabled
•
When the port is configured for pull-up, switch 2 is closed, activating the
•
+5.0 VDC pull-up resistor.
When switch 1 closes, the port is on.
•
When switch 1 opens, the port is off.
•
Example application, digital output with pull-up: controlling another device
•
via its contact closure input port
Connect the digital I/O port to the contact input port of another device, such
as an Extron HCT transmitter. When activated, the digital I/O digital output port
momentarily shorts pin 1 to ground (pulsed contact for 0.5 seconds), closes
switch 1, which selects the input on the connected device.
+5.0 V
1k ohms
SW 2
CTL
SW 1

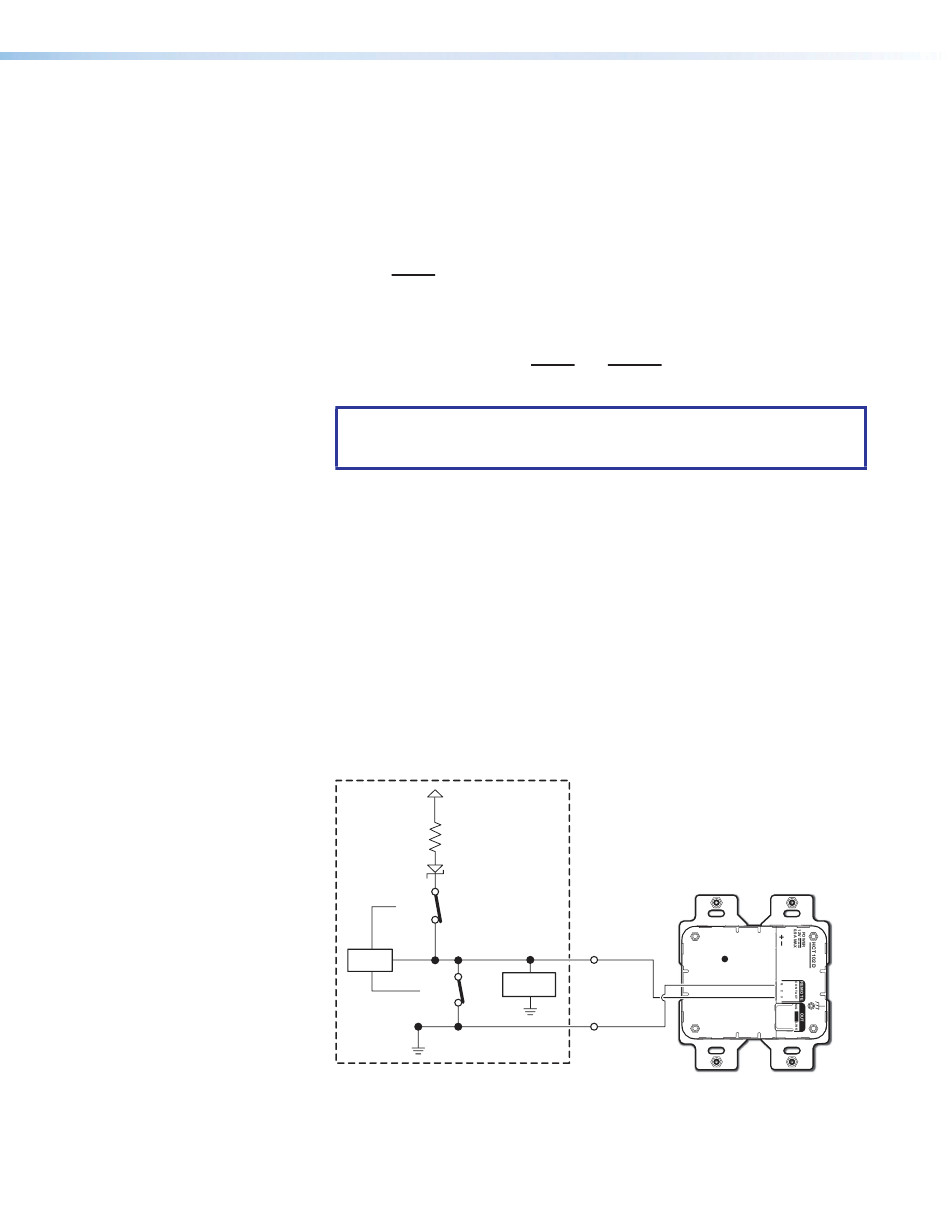

Figure 18. Digital I/O Digital Output Application With Pull-up:
Contact Closure Input Selection on a Connected Device
V - V
5 V - 2 V
s f
R = =
i 0.005 A
Digital
I/O
Voltage
Protection
GND
HC 400 Series • Hardware Features and Installation
= 600 ohms
