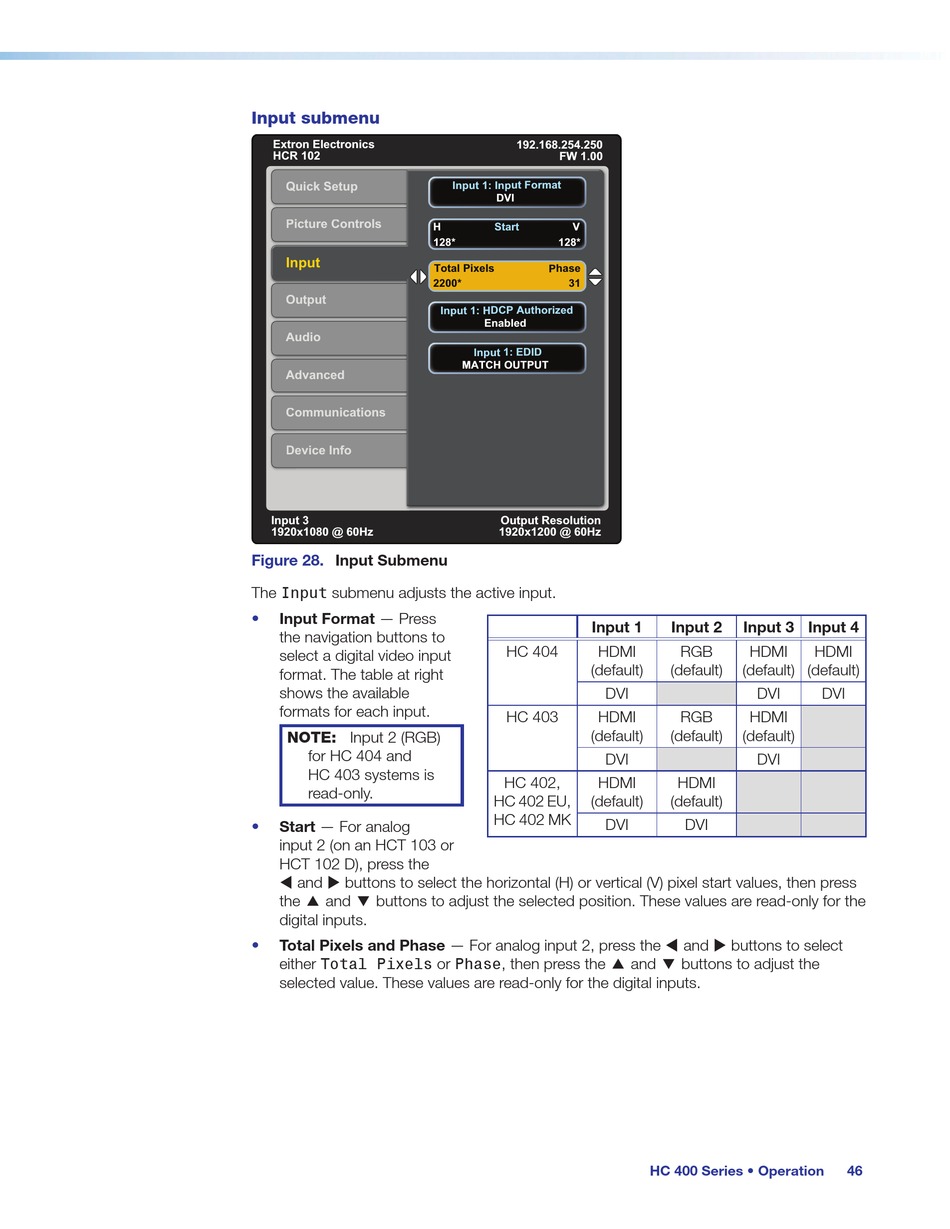

Input submenu
Quick Setup Quick Setup
Picture Controls Picture Controls
Input Input
Output Output
Audio Audio
Advanced Advanced
Communications Communications
Device Info Device Info
Figure 28. Input Submenu
The Input submenu adjusts the active input.
• Input Format — Press
the navigation buttons to
select a digital video input
format. The table at right
shows the available
formats for each input.
NOTE: Input 2 (RGB)
for HC 404 and
HC 403 systems is
read-only.
• Start — For analog
input 2 (on an HCT 103 or
HCT 102 D), press the
 and  buttons to select the horizontal (H) or vertical (V) pixel start values, then press

the and buttons to adjust the selected position. These values are read-only for the

digital inputs.
• Total Pixels and Phase — For analog input 2, press the  and  buttons to select
either Total Pixels or Phase, then press the
selected value. These values are read-only for the digital inputs.
DVI
128*
2200* 31
Enabled
MATCH OUTPUT
Input 1
HC 404 HDMI
(default)
DVI
HC 403 HDMI
(default)
DVI
HC 402, HDMI
HC 402 EU, (default)
HC 402 MK
DVI

Input 2 Input 3 Input 4
RGB HDMI
(default) (default) (default)
DVI
RGB HDMI
(default) (default)
DVI
HDMI
(default)
DVI

and buttons to adjust the
HC 400 Series • Operation
HDMI
DVI
46
