Quick Setup submenu
Quick Setup
Picture Controls Picture Controls
Input Input
Output Output
Audio Audio
Advanced Advanced
Communications Communications
Device Info Device Info

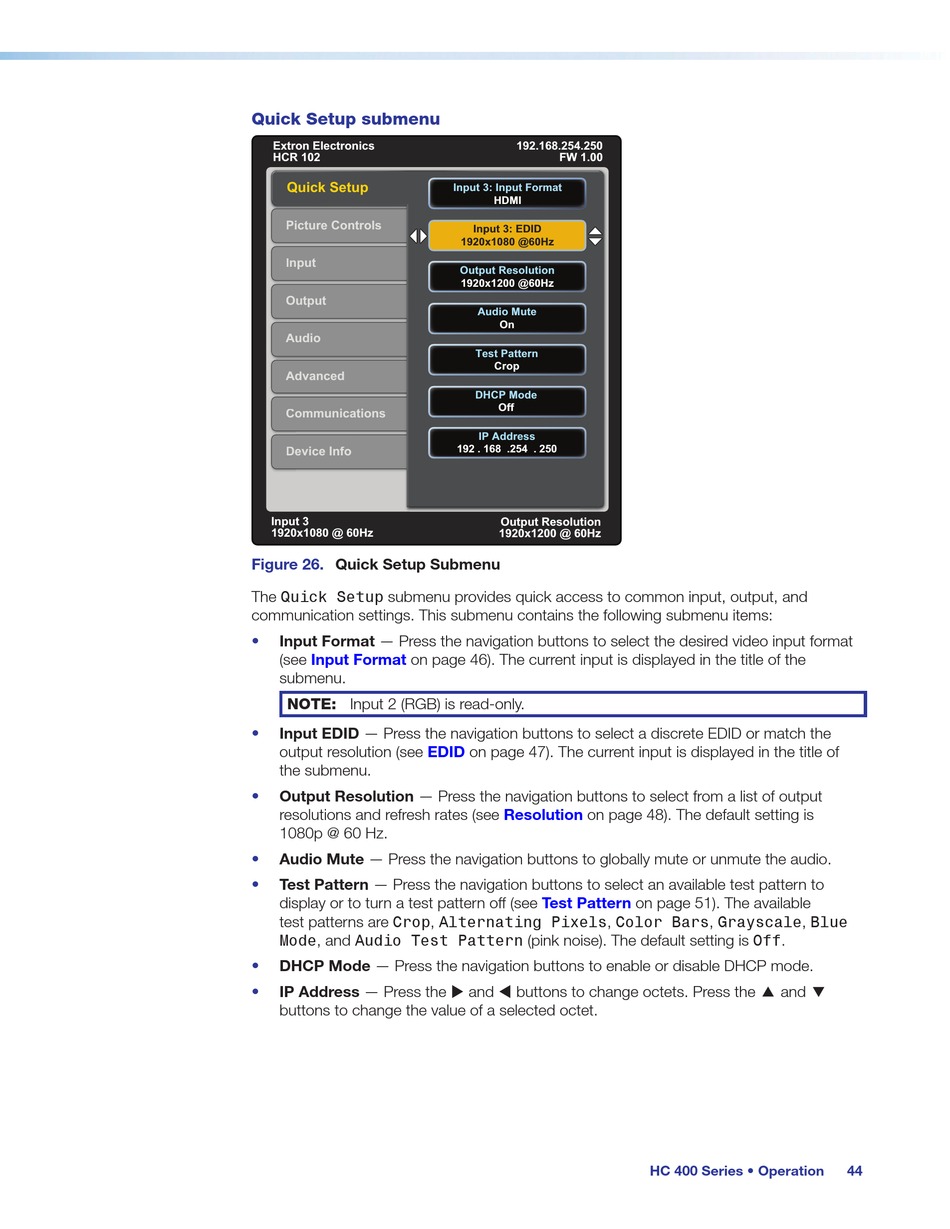

Figure 26. Quick Setup Submenu
The Quick Setup submenu provides quick access to common input, output, and
communication settings. This submenu contains the following submenu items:
• Input Format — Press the navigation buttons to select the desired video input format
(see Input Format on page 46). The current input is displayed in the title of the
submenu.
NOTE: Input 2 (RGB) is read-only.
Input EDID — Press the navigation buttons to select a discrete EDID or match the
•
output resolution (see EDID
the submenu.
• Output Resolution — Press the navigation buttons to select from a list of output
resolutions and refresh rates (see
1080p @ 60 Hz.
• Audio Mute — Press the navigation buttons to globally mute or unmute the audio.
• Test Pattern — Press the navigation buttons to select an available test pattern to
display or to turn a test pattern off (see
test patterns are Crop, Alternating Pixels, Color Bars, Grayscale, Blue
Mode, and Audio Test Pattern (pink noise). The default setting is Off.
• DHCP Mode — Press the navigation buttons to enable or disable DHCP mode.
• IP Address — Press the  and  buttons to change octets. Press the
buttons to change the value of a selected octet.
on page 47). The current input is displayed in the title of
Resolution on page 48). The default setting is
Test Pattern on page 51). The available

and

HC 400 Series • Operation 44
