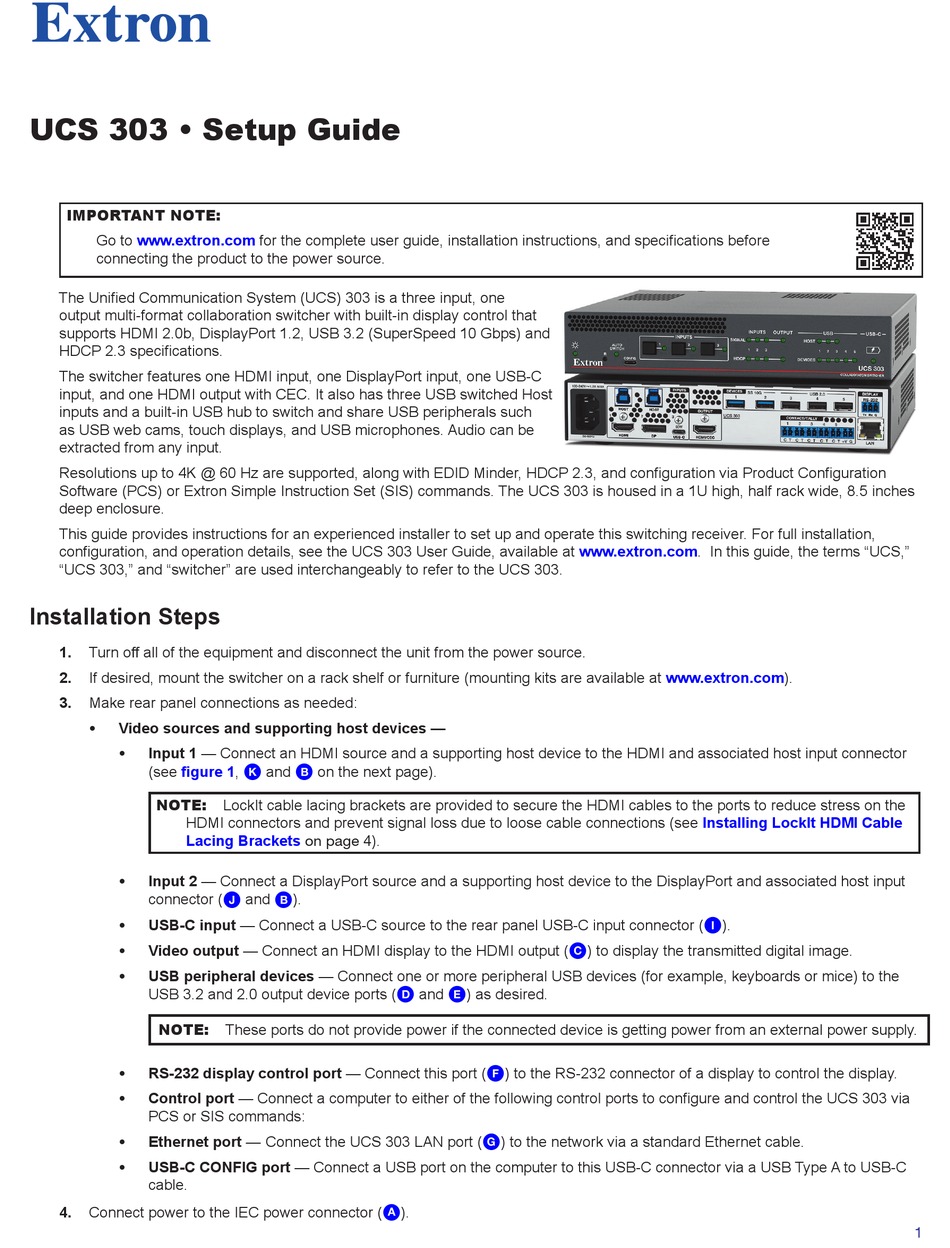

UCS 303 • Setup Guide
IMPORTANT NOTE:
Go to
www.extron.com
connecting the product to the power source.
The Unified Communication System (UCS) 303 is a three input, one
output multi-format collaboration switcher with built-in display control that
supports HDMI 2.0b, DisplayPort 1.2, USB 3.2 (SuperSpeed 10 Gbps) and
HDCP 2.3 specifications.
The switcher features one HDMI input, one DisplayPort input, one USB-C
input, and one HDMI output with CEC. It also has three USB switched Host
inputs and a built-in USB hub to switch and share USB peripherals such
as USB web cams, touch displays, and USB microphones. Audio can be
extracted from any input.
Resolutions up to 4K @ 60 Hz are supported, along with EDID Minder, HDCP 2.3, and configuration via Product Configuration
Software (PCS) or Extron Simple Instruction Set (SIS) commands. The UCS 303 is housed in a 1U high, half rack wide, 8.5 inches
deep enclosure.
This guide provides instructions for an experienced installer to set up and operate this switching receiver. For full installation,
configuration, and operation details, see the UCS 303 User Guide, available at www.extron.com. In this guide, the terms "UCS,"
"UCS 303," and "switcher" are used interchangeably to refer to the UCS 303.
Installation Steps
1.
Turn off all of the equipment and disconnect the unit from the power source.
2.
If desired, mount the switcher on a rack shelf or furniture (mounting kits are available at www.extron.com).
3.
Make rear panel connections as needed:
•
Video sources and supporting host devices —
•
Input 1 — Connect an HDMI source and a supporting host device to the HDMI and associated host input connector
(see figure 1,
NOTE:
HDMI connectors and prevent signal loss due to loose cable connections (see
Lacing Brackets
•
Input 2 — Connect a DisplayPort source and a supporting host device to the DisplayPort and associated host input
connector (
•
USB-C input — Connect a USB-C source to the rear panel USB-C input connector (
•
Video output — Connect an HDMI display to the HDMI output (
•
USB peripheral devices — Connect one or more peripheral USB devices (for example, keyboards or mice) to the
USB 3.2 and 2.0 output device ports (
NOTE:
•
RS-232 display control port — Connect this port (
•
Control port — Connect a computer to either of the following control ports to configure and control the UCS 303 via
PCS or SIS commands:
•
Ethernet port — Connect the UCS 303 LAN port (
•
USB-C CONFIG port — Connect a USB port on the computer to this USB-C connector via a USB Type A to USB-C
cable.
4.
Connect power to the IEC power connector (
for the complete user guide, installation instructions, and specifications before
and
on the next page).
K
B
LockIt cable lacing brackets are provided to secure the HDMI cables to the ports to reduce stress on the
on page 4).
and
).
J
B
D
These ports do not provide power if the connected device is getting power from an external power supply.
).
A
) to display the transmitted digital image.
C
and
) as desired.
E
) to the RS-232 connector of a display to control the display.
F
) to the network via a standard Ethernet cable.
G
Installing LockIt HDMI Cable
).
I
1
