For a unit connected via USB, double-click the row for the HCR 102 to open a
connection to the unit. In the device-specific tab at the top of the window, click the
Device Menu down-arrow then select Settings > Communication Settings.

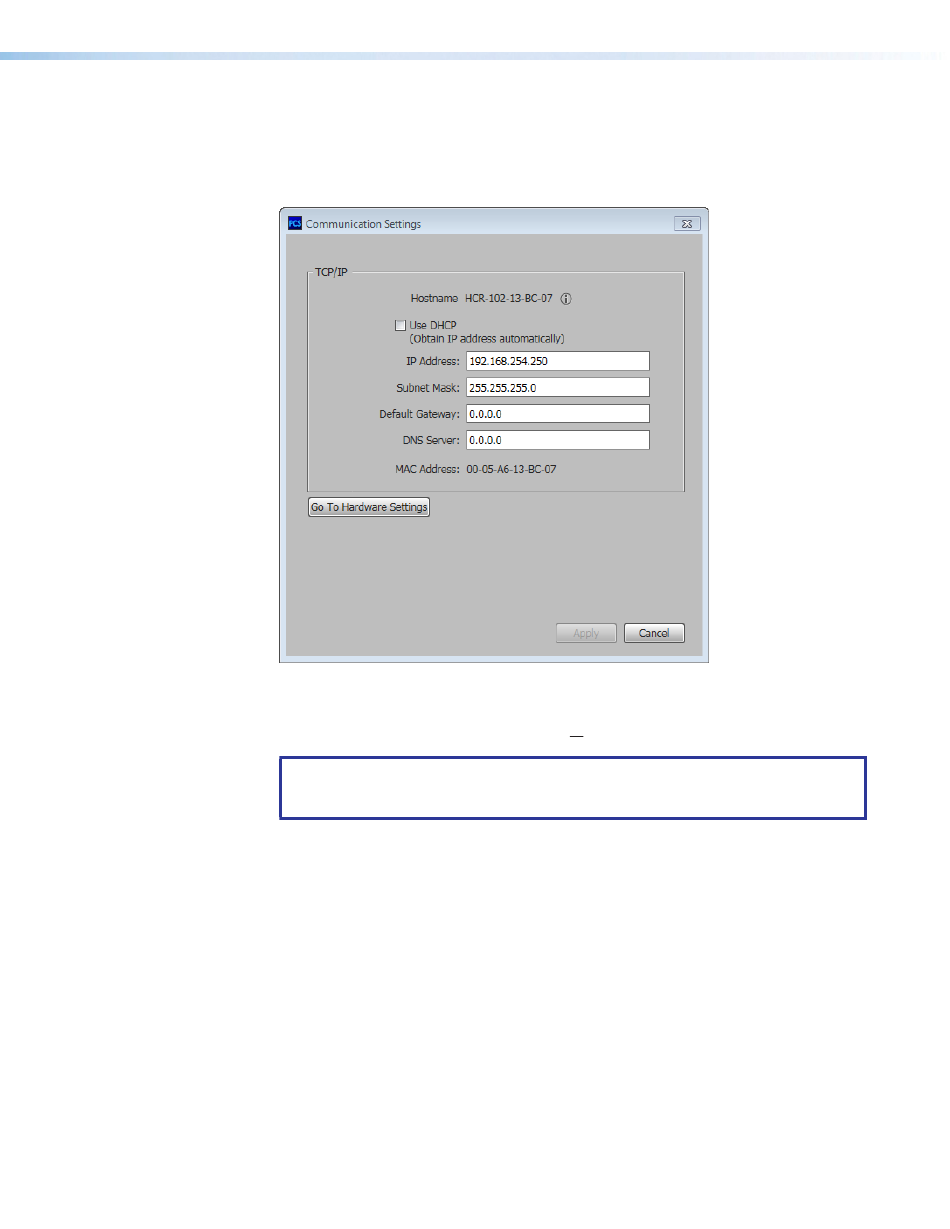

The Communication Settings dialog box opens, displaying controls for network
configuration.
Figure 25.
6.
Either select (enable) the Use DHCP checkbox to have the receiver obtain an IP
address automatically from a DHCP server, or enter the static IP address for the unit in
the IP Address field.
NOTE: When setting up DHCP during network configuration or if using a host
name instead of an IP address, the user must enter a qualified host name
(Username.HostName.Domain). For example: somename.extron.com.
7. Configure the other items (device name, subnet mask, gateway address, DNS server
address) as needed.
8. Click Apply to save the configuration changes. Alternatively, if you accessed this dialog
box from the Device Discovery page, you can click Apply and Connect to save the
configuration changes and then establish a connection from the PCS software to the
receiver to configure AV settings.

Network Configuration via Toolbelt Software

To configure network settings using Toolbelt:
1. Connect the PC and the LAN port of the HCR 102 receiver to the same network. For
details on the LAN connection, see
2. Apply power to the PC and the HCR 102.
3. Open the Toolbelt software from within Global Configurator or open the stand-alone
Toolbelt application. Extron recommends opening Toolbelt as an administrator by right-
clicking the Toolbelt icon and selecting Run as administrator.
The PCS Communication Settings Dialog Box (From Device Menu)
LAN (IP) connector and LEDs
HC 400 Series • Hardware Features and Installation
on page 30.
