Network Configuration via PCS Software

To configure network settings using PCS:
1. Connect the PC and the LAN port of the HCR 102 receiver (see
and LEDs
Or
Connect the PC to the front panel Config port of the HCR 102 receiver using a
USB type A male to USB mini-B male cable (such as the Extron USB CFG cable).
NOTE: If more than one device on a network shares the same default IP address,
address conflicts can prevent TCP/IP connection. In most cases the MAC address
is sufficient for PCS connection. Alternatively, try connecting the HCR 102 via
USB.
2. Apply power to the PC and the HCR 102.
3. Open the PCS software. You might need to open the application as an administrator by
right-clicking the PCS icon and selecting Run as administrator. PCS opens to
the Device Discovery page. The Device Discovery process begins automatically.
The page displays a list of all Extron control devices connected to the network via LAN
or to the PC via USB as PCS detects them.
TIP:
Adapter button and select the appropriate option in the dialog box to ensure that
PCS uses the correct network adapter for the connection to the HCR 102.
4. Using the MAC address, locate the desired device (HCR 102) in the list.
5. For a unit connected via TCP/IP, in the row for the HCR 102, the IP Address column
click the Edit button. The Communication Settings dialog box opens, displaying
controls for network configuration.

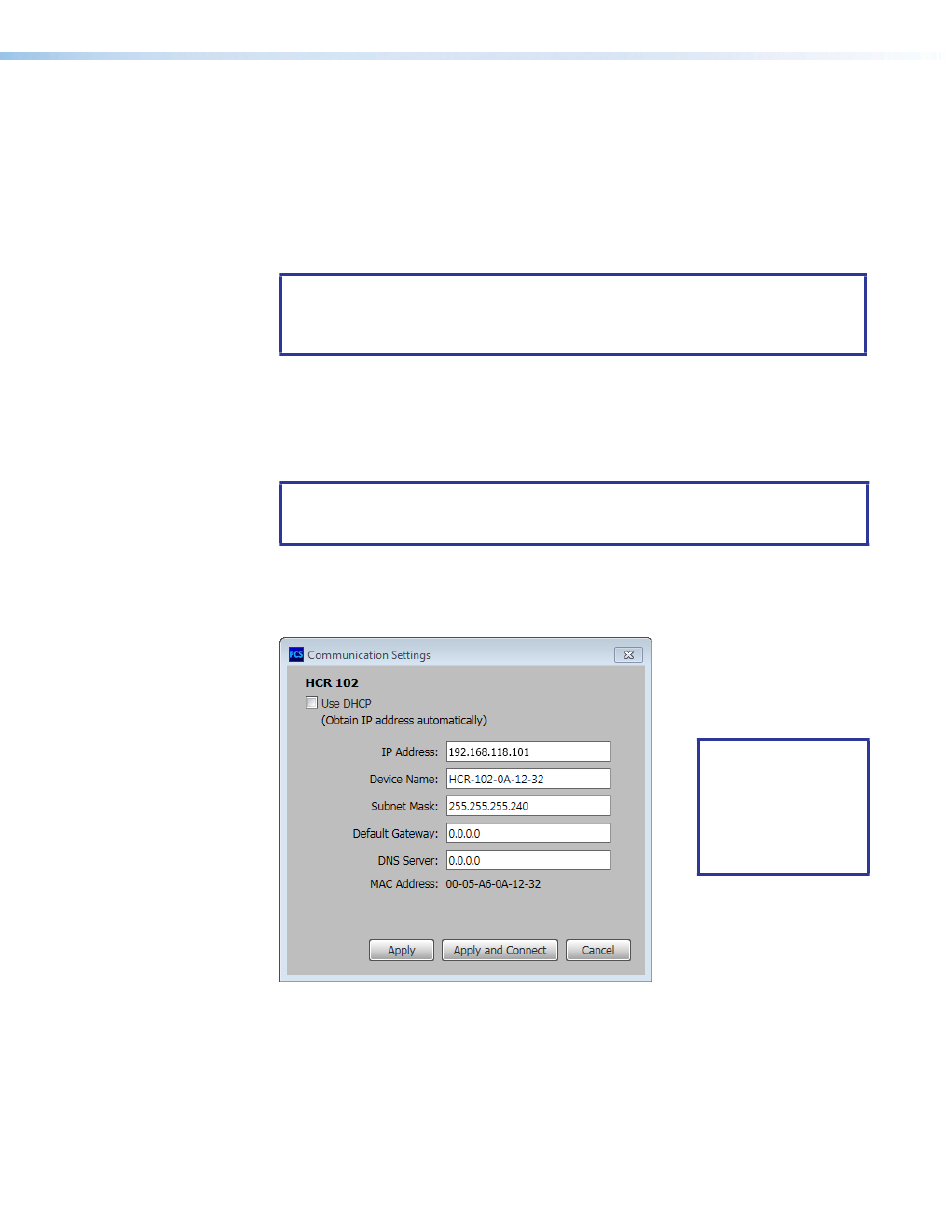

Figure 24.
on page 30) to the same network.
If devices do not appear automatically in the list, click the Network
The PCS Communication Settings Dialog Box (From Device Discovery)
HC 400 Series • Hardware Features and Installation
LAN (IP) connector
If the unit
NOTE:
is still set to the
default IP address,
all fields other than
the IP Address
field are grayed out
and inaccessible.
36
